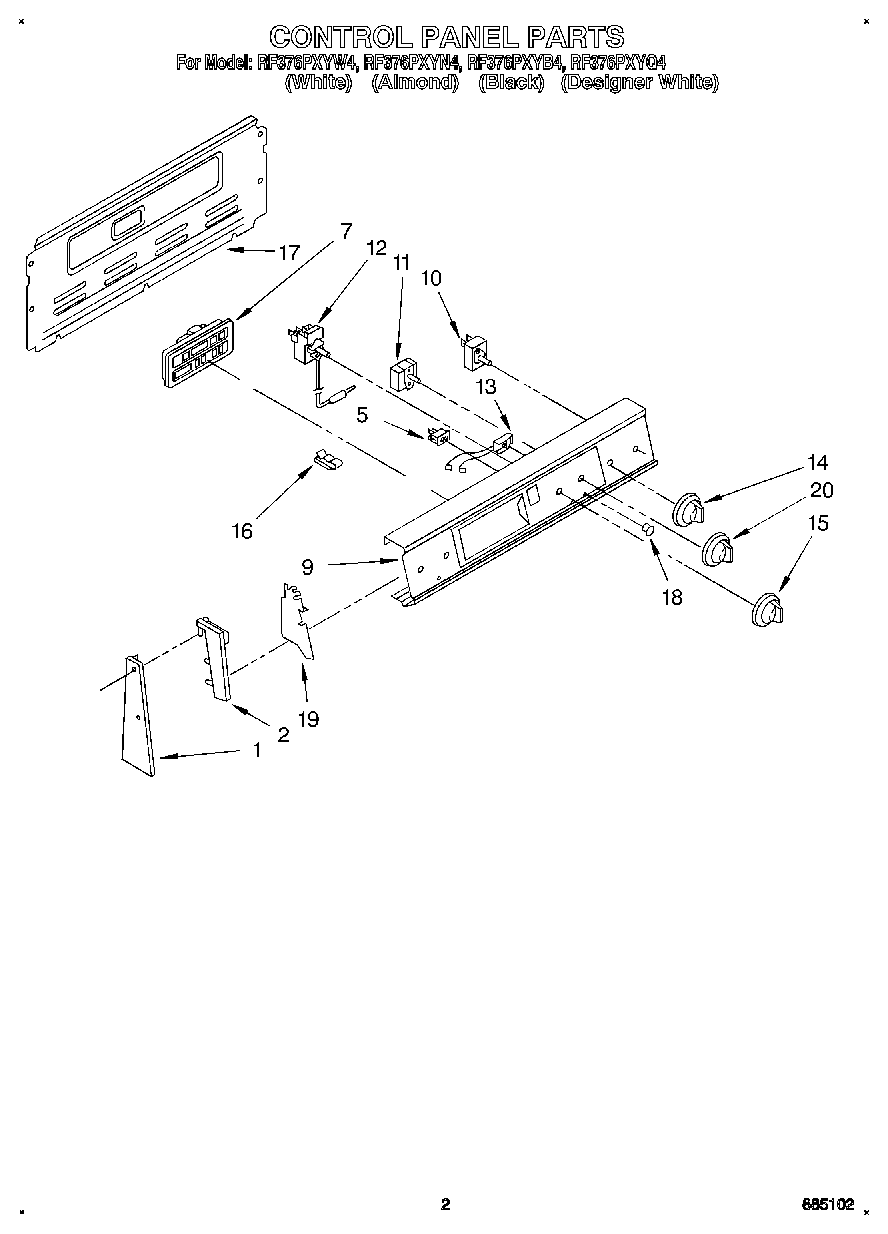

RF376PXYB4 02 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×7/16“
1Screw 10-32×1“
2Screw,
2End Cap L.H.
2End Cap R.H.
5Switch, Rocker (White)
5Switch, Rocker
7Designer White Mdl
7Timer, Electronic
9Designer White Mdl
9Panel, Control
9Washer
10WP3148955 Whirlpool Infinite Switch
10Screw, 8-32 x 3/16 (2)
10WP3148952 Whirlpool Oven Infinite Switch
11Switch, Selector
12WP313808 Whirlpool Screw
12Thermostat, 0ven Pyro
13Light, Indicator (250V)
13Light, Indicator
14Knob, (4) Infinite Switch (Designer Mdl)
14Knob, (4) Infinite Switch (White/Almond/Gold)
15Designer White Mdl
15Knob, Temp
16Clip, Tube
17Rear Cover Contr
17SCREW
18Lens, Amber
19WP965173 Whirlpool Dishwasher Screw
19Shield (2)
20Knob (Selector)
20WPL 3183116
