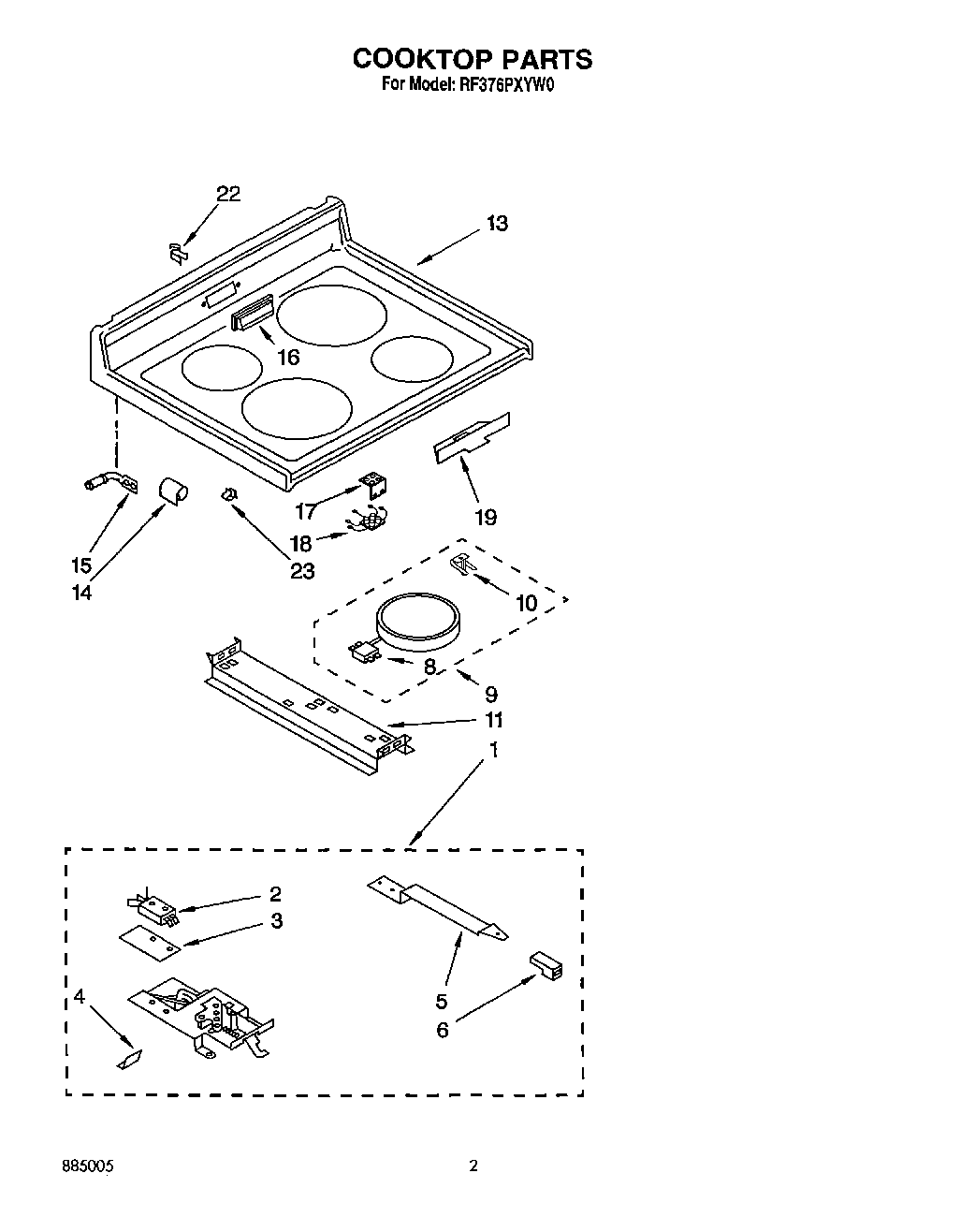

| 1 | Latch Asm Complete W/Wiring Harness |
| 1 | Designer White Mdl |
| 2 | Screw |
| 2 | Safety Switch |
| 3 | Insulator, Switch |
| 4 | Screw |
| 4 | Shield, Latch |
| 5 | Screw |
| 5 | Handle, Latch |
| 5 | Handle, Latch |
| 6 | Knob, Latch |
| 6 | WP486579 Whirlpool Air Conditioner Screw |
| 6 | Knob, Latch |
| 8 | Limiter, Temperature (Use W/3183648 Element) |
| 8 | Limiter Temp. (7`` - RF) |
| 8 | Limiter, Temp. (6`` L.R.) |
| 8 | Limiter, Temperature (Use W/3183649 Element) |
| 9 | Element, Surface (Includes No.1) (230 MM - (2)) |
| 9 | Element, Surface (Includes No.1) (200 MM - (2)) |
| 9 | Element, Surface (Includes No.8) (180 MM - LR) |
| 9 | WP8185663 Whirlpool Surface Element |
| 10 | WP486754 Whirlpool Compactor Screw |
| 10 | Spring, Locator |
| 11 | Bracket, (2) Element Support |
| 13 | Cooktop (Black) |
| 13 | Cooktop (Almond) |
| 13 | Cooktop (White) |
| 13 | Cooktop (Designer White) |
| 14 | Bracket, Cooktop (2) |
| 15 | Pin, Cooktop (2) |
| 15 | SCREW |
| 16 | Cover, Vent (Black) |
| 16 | cover, vent (almond) |
| 16 | Cover, Vent (White) |
| 17 | Bracket, Light |
| 17 | Screw (2) |
| 18 | Light, Indicator |
| 19 | Shield, Probe |
| 22 | Clip, Vent Cover |
| 23 | Clip |
