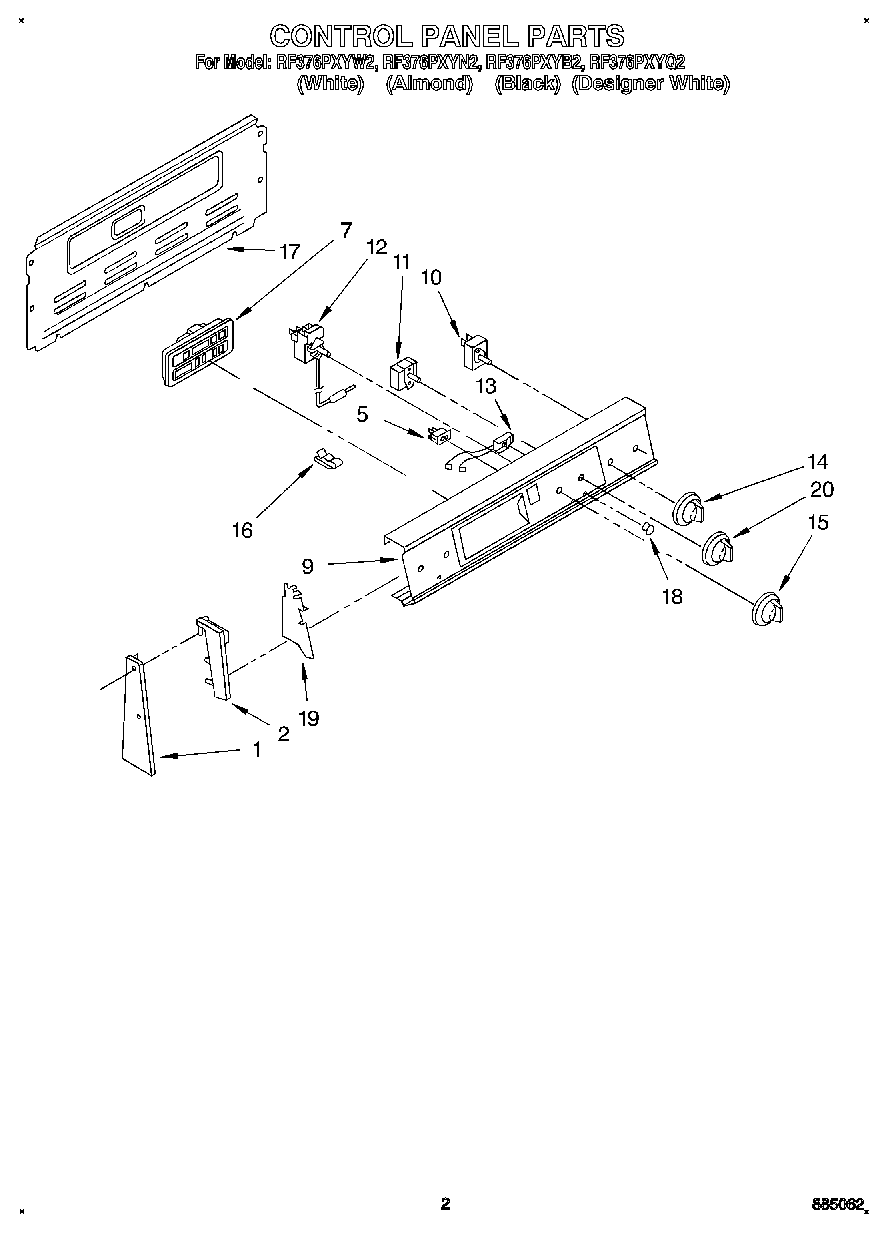

RF376PXYW2 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
5	Switch, Rocker (White)
5	Switch, Rocker
7	Timer, Electronic
7	Designer White Mdl
9	Panel, Control (Designer White)
9	Panel, Control (White/Almond/Black)
9	Washer
10	WP3148955 Whirlpool Infinite Switch
10	WP3148952 Whirlpool Oven Infinite Switch
10	Screw, 8-32 x 3/16 (2)
11	Switch, Selector
12	Thermostat, Oven (Alt.)
12	Thermostat, Oven (Alt.)
12	WP313808 Whirlpool Screw
12	Thermostat, Oven
13	Light, Indicator
13	Light, Indicator (250V)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
14	Knob, (4) Infinite Switch (Designer Mdl)
15	Knob (Temp) (White/Almond)
15	Designer White Mdl
16	Clip, Tube
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob (Selector)
20	WPL 3183116
