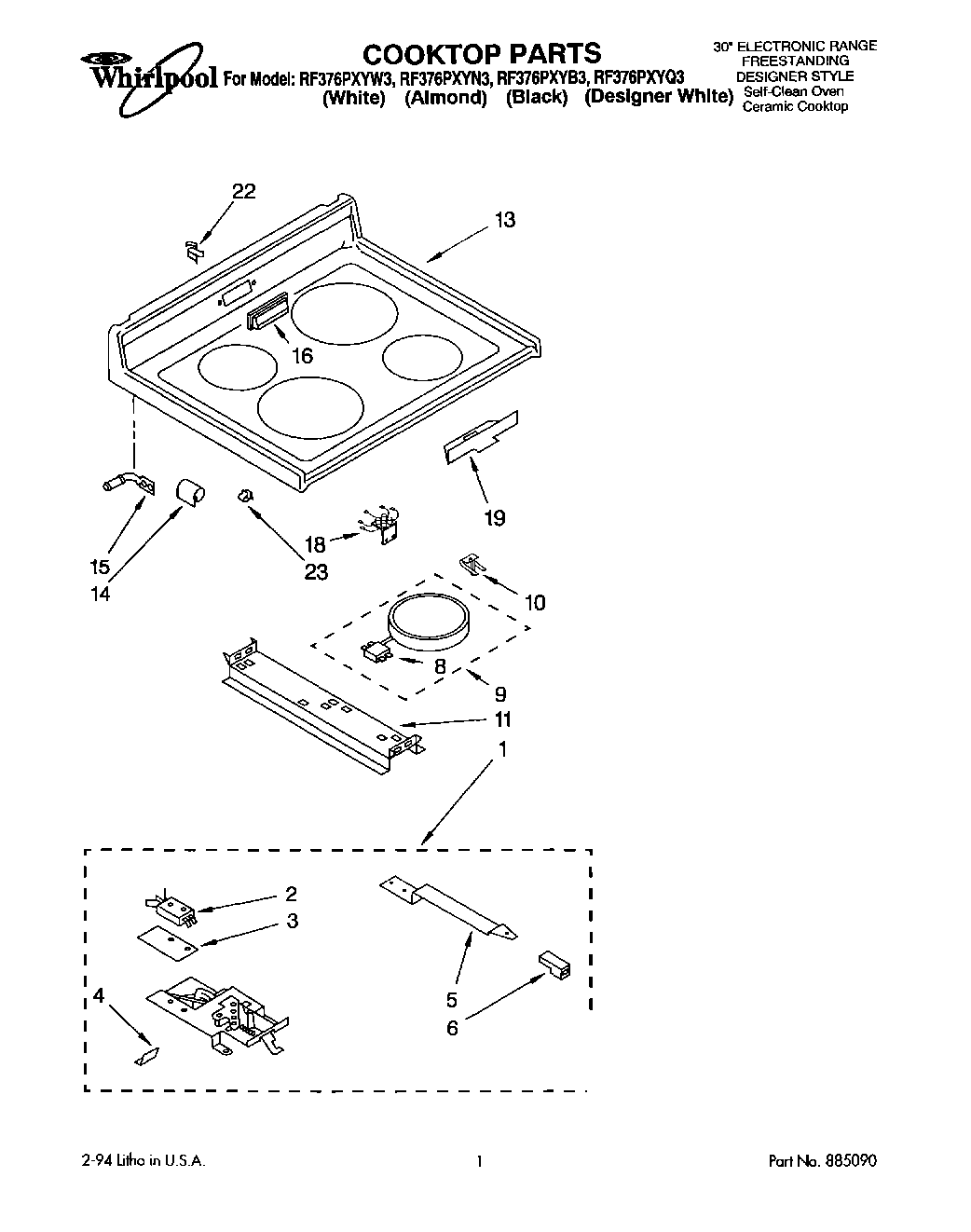

RF376PXYW3 01 – COOKTOP

Products

PositionProduct
1Latch Asm Complete W/Wiring Harness
1Designer White Mdl
2Screw
2Safety Switch
3Insulator, Switch
4Shield, Latch
4Screw
5Handle, Latch
5Screw
5Handle, Latch
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
6Knob, Latch
8Switch, Limit (Use W/3183584 Element)
8Switch, Limit (Use W/3183200 Element)
8Limiter, Temp. (2100W, LF-RR)
8Limiter, Temp. (2400W – LF)
9WP8185663 Whirlpool Surface Element
9Element, Surface (2100W Right Rear)
9Element, Surface (1700W Right Front)
9Element, Surface (1400W Left Rear)
10Spring, Locator
10WP486754 Whirlpool Compactor Screw
11Bracket, (2) Element Support
13Cooktop (Almond)
13Cooktop (White)
13Cooktop (Black)
13Cooktop (Designer White)
14Bracket, Cooktop (2)
15Pin, Cooktop (2)
15SCREW
16cover, vent (almond)
16Cover, Vent (White)
16Cover, Vent (Black)
18Hot Light Assembly
18Screw (2)
19Shield, Probe
22Clip, Vent Cover
23Clip
23W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23WA906B Whirlpool Cooktop Glass Scraper
