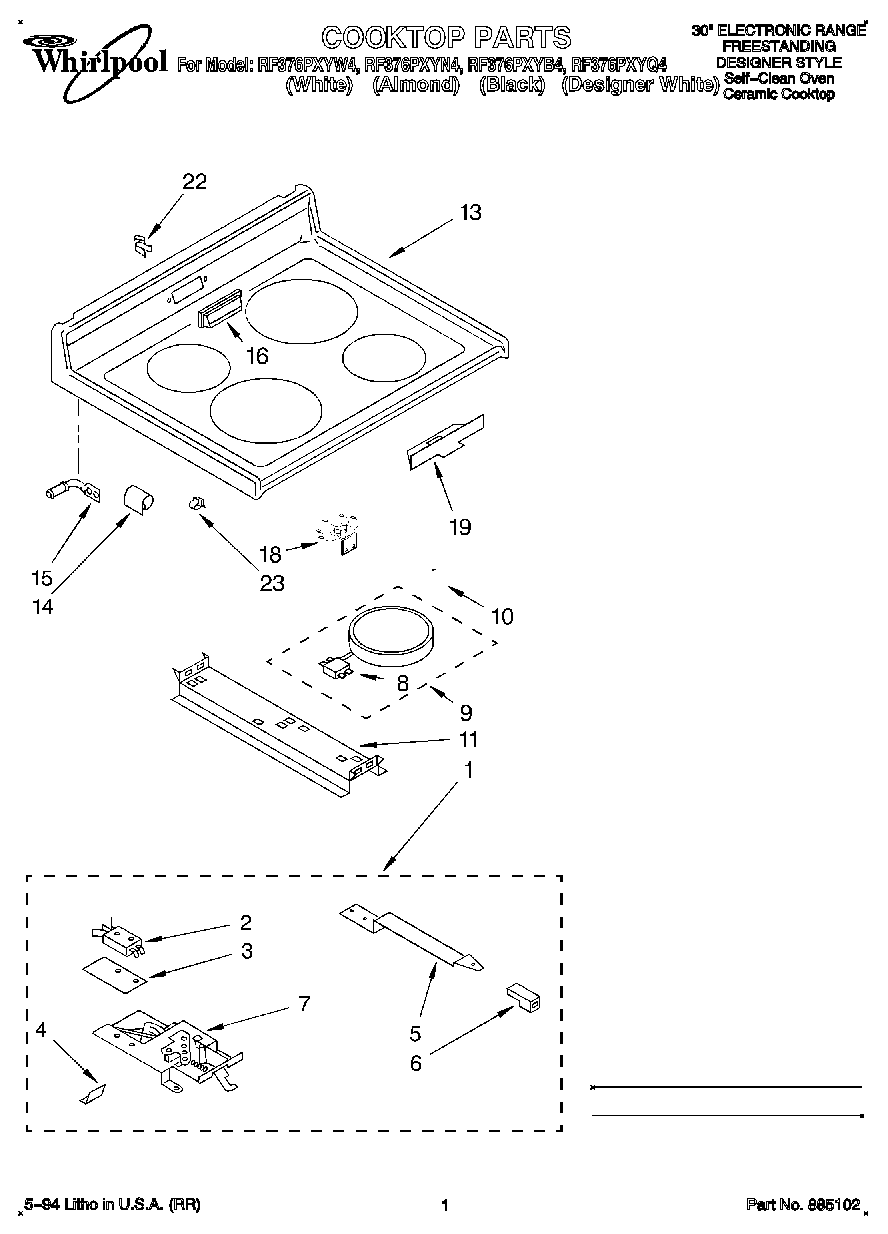

RF376PXYW4 01 – COOKTOP

Products

Position	Product
1	Latch Asm Complete W/Wiring Harness
1	Designer White Mdl
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Handle, Latch
5	Screw
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
6	Knob, Latch
7	Latch Mechanism
8	Limiter, Temp. (2100W, LF-RR)
8	Switch, Limit (Use W/3183200 Element)
8	Switch, Limit (Use W/3183584 Element)
8	Limiter, Temp. (2400W – LF)
9	WP8185663 Whirlpool Surface Element
9	Element, Surface (1400W Left Rear)
9	Element, Surface (1700W Right Front)
9	Element, Surface (2100W Right Rear)
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Bracket, (2) Element Support
13	Cooktop (Almond)
13	Cooktop (White)
13	Cooktop (Black)
13	Cooktop (Designer White)
14	Bracket, Cooktop (2)
15	Pin, Cooktop (2)
15	SCREW
16	cover, vent (almond)
16	Cover, Vent (White)
16	Cover, Vent (Black)
18	Hot Light Assembly
18	Screw (2)
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	WA906B Whirlpool Cooktop Glass Scraper
