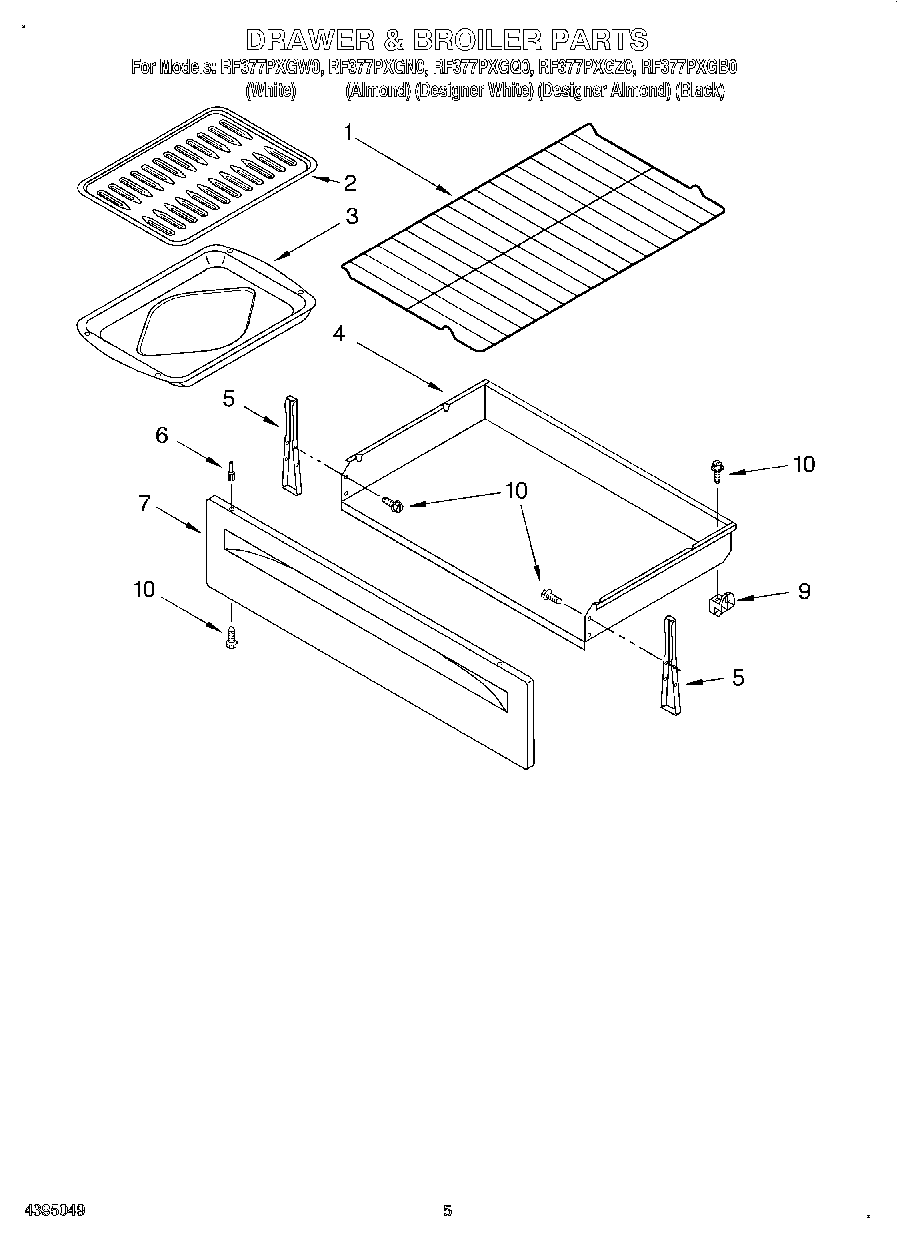

RF377PXGQ0 04 – DRAWER & BROILER

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196813 Whirlpool Rivet
6	3196815 Whirlpool Oven Rivet
6	WP3196814 Whirlpool Rivet
7	Panel, Drawer Front (Almond)
7	W11219377 Whirlpool Drawer Panel
7	W11230488 Whirlpool Drawer Panel
9	WP8053334 Whirlpool Drawer Glide
10	WP3400832 Whirlpool Screw
