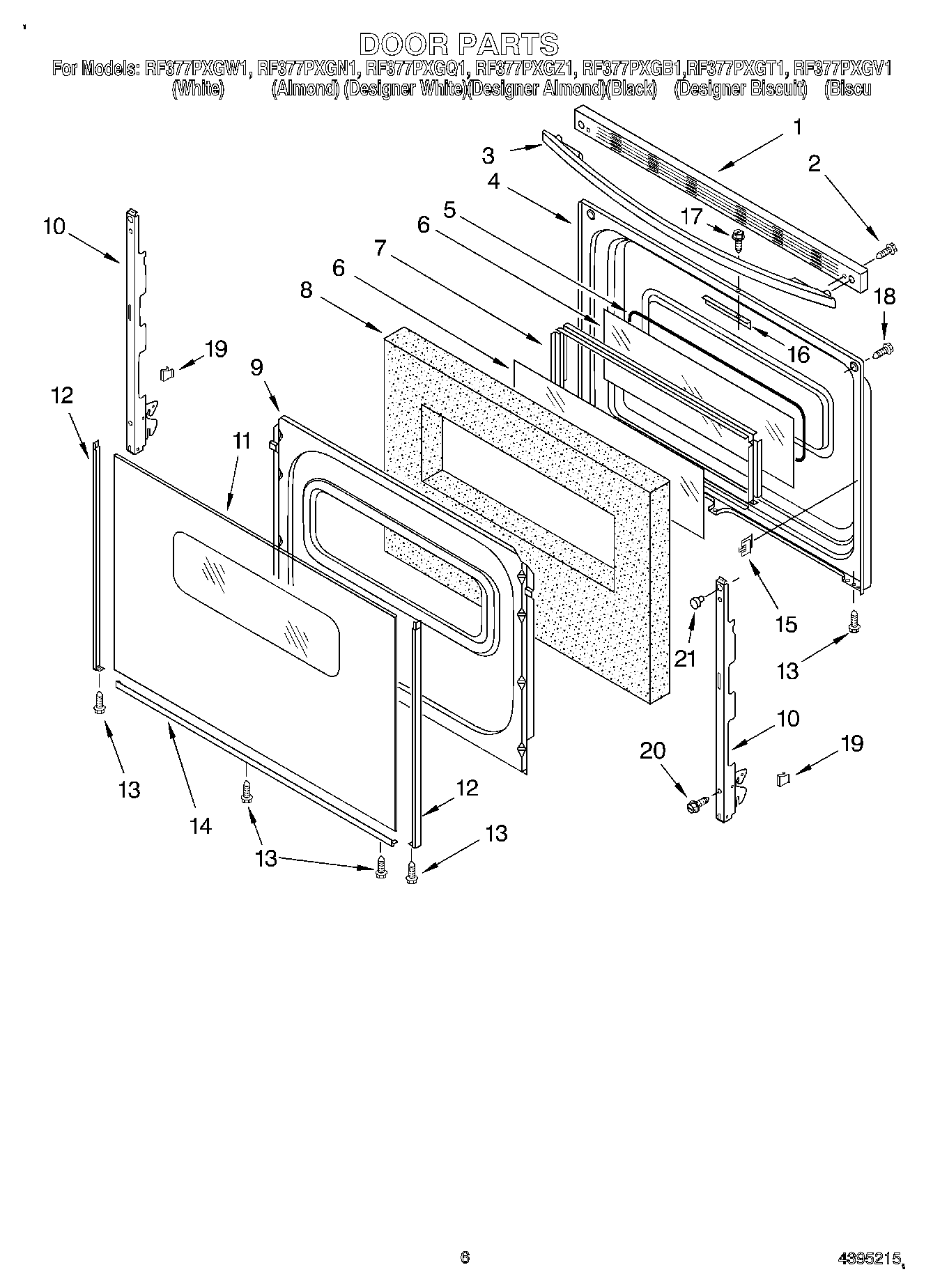

RF377PXGQ1 05 – DOOR, OPTIONAL

RF377PXGQ1 05 – DOOR, OPTIONAL

Written by

in

RF377PXGQ1 05 – DOOR, OPTIONAL

Products

Position	Product
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
1	Trim, Door Top (Almond)
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	Handle, Door (Almond)
3	Handle, Door (Biscuit)
3	WPW10202216 Whirlpool Door Handle
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	8522415 Whirlpool Oven Wind Gasket
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	WPW10278991 Whirlpool Insulation
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	Glass, Outer Door (Almond)
11	WP9762477 Whirlpool Glass Door
11	Glass, Door (Biscuit)
11	WP9762476 Whirlpool Door Glass
13	W10491985 Whirlpool Screw
14	8184860 Whirlpool Oven Door Trim
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
14	8184858 Whirlpool Door Trim
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
21	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
21	3184020 Whirlpool Oven Wire
21	3196696 Whirlpool Clip
21	Grease
21	WP3196154 Whirlpool Screw Assembly
21	242831 Whirlpool Oven Wire
21	WPL 8273266
21	W11396691 Whirlpool Element Receptacle and Wire Kit
21	4392901 Whirlpool Biscuit Spray Paint
21	WPL 8273273
21	WPL 8273335
21	8212471 Whirlpool Oven Paint
21	Wire, 25` Roll (Black 14 Ga.)
21	FOIL, ALUMINUM OVEN (18“ X 25 )
21	WPW10208653 Whirlpool Insulation
21	238614 Whirlpool Bumper Hinge
21	WPL 799832
21	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
21	511873 Whirlpool Refrigerator Paint
21	4392899 Whirlpool Biscuit Touch-Up Paint
21	350942 Whirlpool Spray Paint
21	Almond (Uncut)
21	WP72107 Whirlpool Touchup
21	799344 Whirlpool Refrigerator Paint
21	72017 Whirlpool Appliance Touch-Up Paint White
21	350956 Whirlpool Spray Assembly
21	Wire, 25` Roll (Red 14 Ga.)
21	Wire, 25“ Roll (White 14 GA.)
21	285006 Whirlpool Spray
21	W11244557 Whirlpool Screw
21	1
21	Wire (14 Ga. 200 c Brown)
21	18 Ga. 80~c Rating (Red)
21	Wire (12 Ga. 150 c Black)
21	Wire (14 Ga. 150 c Yellow)
21	Wire (14 Ga. 150 c Orange)
21	Wire (14 Ga. 150 c Green)
21	Wire (14 Ga. 150 c Brown)
21	Wire (14 Ga. 150 c Blue)
21	Clip, Ground Wire
21	3400964 Whirlpool Oven Clip
21	814381 Whirlpool Pin
21	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
21	350930 Whirlpool White Spray Paint
