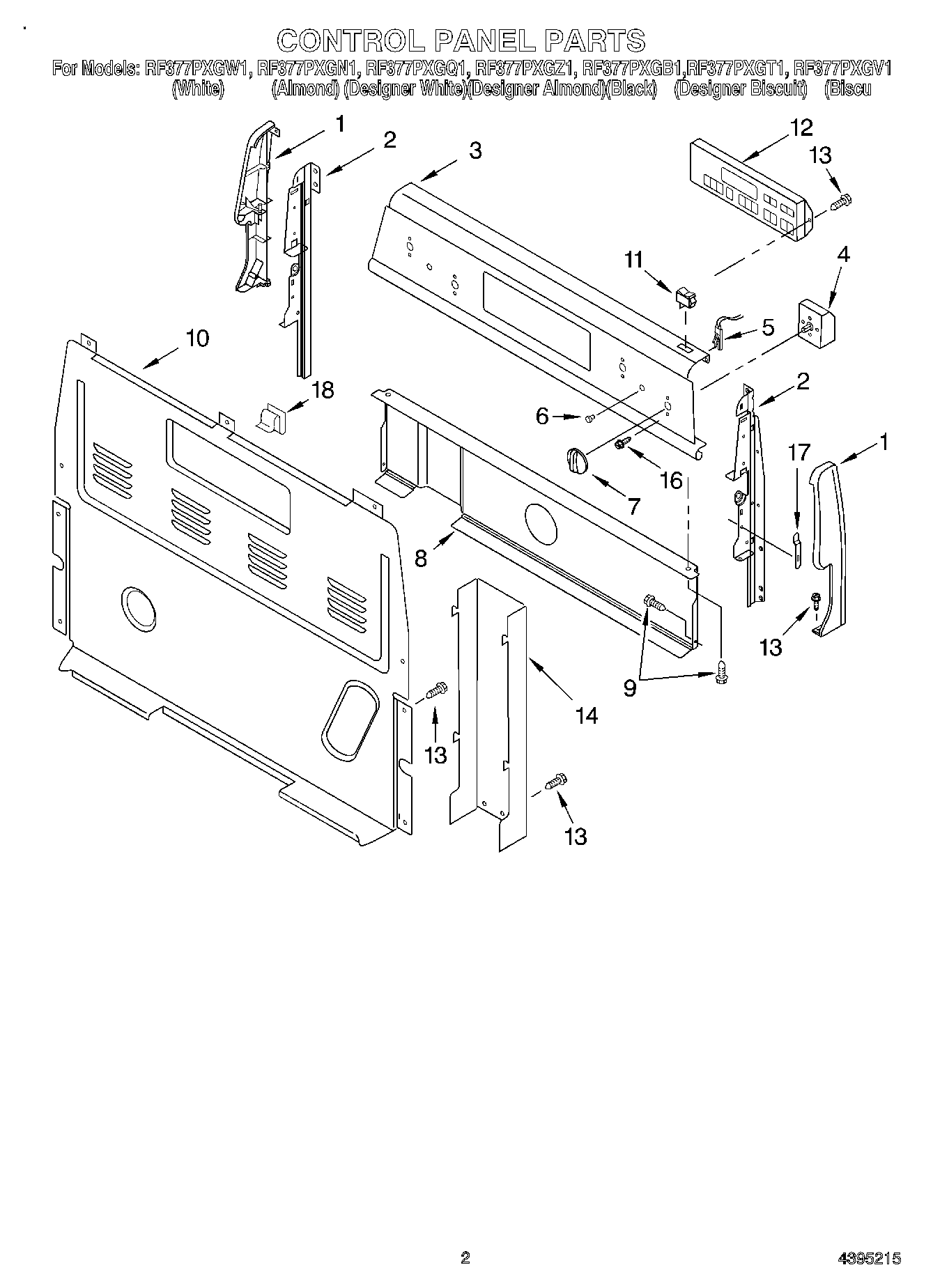

RF377PXGT1 02 – CONTROL PANEL

RF377PXGT1 02 – CONTROL PANEL

Written by

in

RF377PXGT1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (Almond Right Hand)
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (Biscuit Left Hand)
1Endcap (Almond Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Almond)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP3196231 Whirlpool Knob
7Knob, Infinite (4) (Almond)
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Switch, Rocker (Almond)
113149360 Whirlpool Light Switch
11WP4314961 Whirlpool Lite Switch
11Switch, Rocker (Biscuit)
12Control, Range (Black)
12Control, Range (White)
12Control, Range (Almond)
12Control, Range (Biscuit)
13SCREW
14WPW10326122 Whirlpool Black Cover
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18WP8273564 Whirlpool Clip
