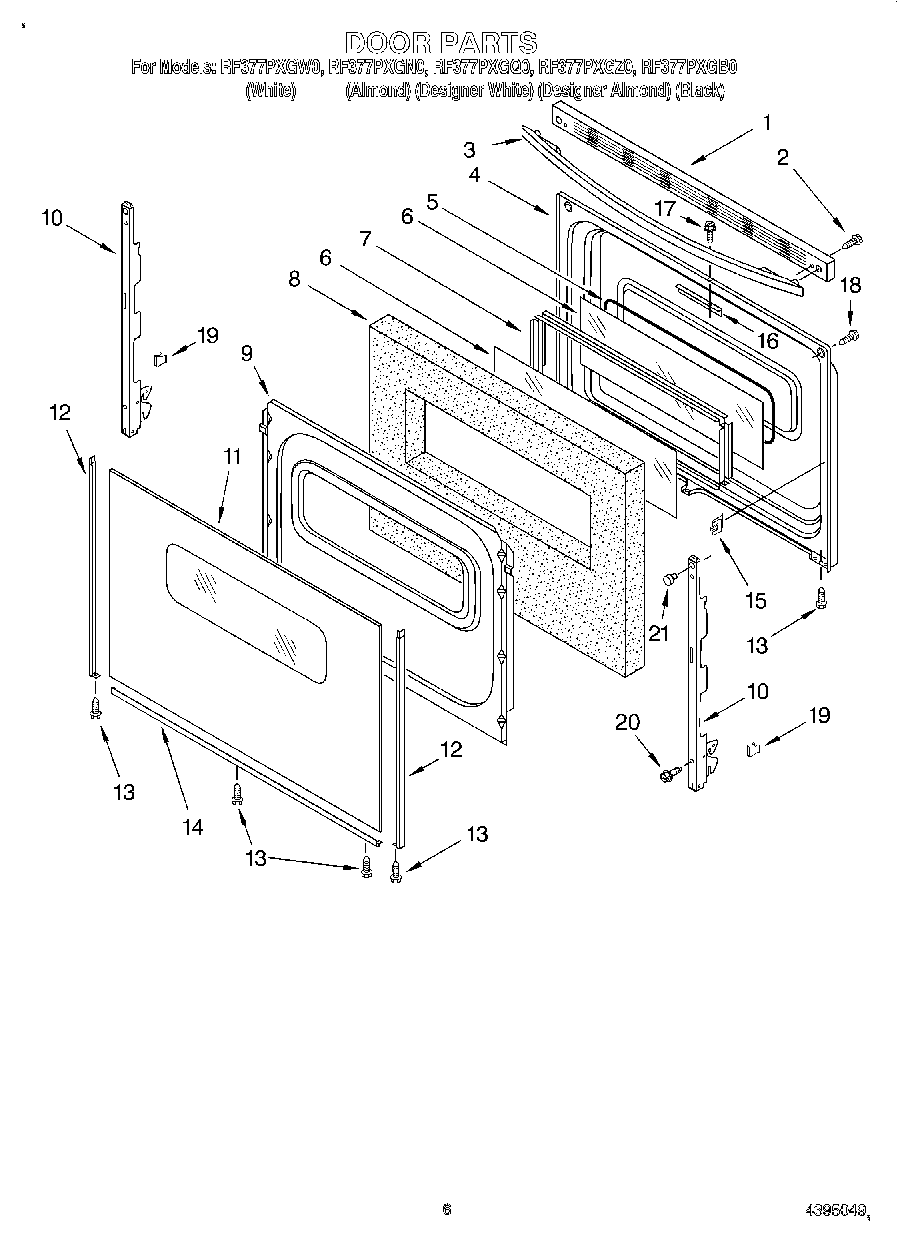

RF377PXGW0 05 – DOOR, LIT/OPTIONAL

RF377PXGW0 05 – DOOR, LIT/OPTIONAL

Written by

in

RF377PXGW0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL 8053623
	3400964 Whirlpool Oven Clip
	Clip, Ground Wire
	3196696 Whirlpool Clip
	W11244557 Whirlpool Screw
	3184020 Whirlpool Oven Wire
	WP3196154 Whirlpool Screw Assembly
	Literature Parts (Guide, Use & Care)
	Harness, Wire (Door Switch)
	Literature (Instruction, Installation)
	Literature Parts (Tech Sheet)
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL 3196697
	814381 Whirlpool Pin
	Literature (Installation, Instructions (Template))
	Safer Cooking Tips
1	WPW10016370 Whirlpool Door Trim
1	Trim, Door Top (Almond)
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Almond)
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	8522415 Whirlpool Oven Wind Gasket
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	Insulation, Door
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP9762477 Whirlpool Glass Door
11	Glass, Outer Door (Almond)
11	WP9762476 Whirlpool Door Glass
13	W10491985 Whirlpool Screw
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
14	8184860 Whirlpool Oven Door Trim
14	8184858 Whirlpool Door Trim
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
21	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
21	Almond (Uncut)
21	799344 Whirlpool Refrigerator Paint
21	350930 Whirlpool White Spray Paint
21	350956 Whirlpool Spray Assembly
21	Wire (14 Ga. 150 c Brown)
21	72017 Whirlpool Appliance Touch-Up Paint White
21	Enamal, Toast (1 Qt. Uncut)
21	Golden Harvest
21	WP72107 Whirlpool Touchup
21	Grease
21	Wire (14 Ga. 150 c Orange)
21	paint, spray 13 oz. (coffee)
21	Paint, Touch-Up 1/2 Oz. (Coffee)
21	72109 Whirlpool Dacor Avocado Touch-Up Paint
21	285006 Whirlpool Spray
21	Wire, 25“ Roll (White 14 GA.)
21	Wire, 25` Roll (Red 14 Ga.)
21	Wire, 25` Roll (Black 14 Ga.)
21	FOIL, ALUMINUM OVEN (18“ X 25 )
21	WPW10208653 Whirlpool Insulation
21	238614 Whirlpool Bumper Hinge
21	WPL 799832
21	511873 Whirlpool Refrigerator Paint
21	350942 Whirlpool Spray Paint
21	WPL 72112
21	Paint, Spray 13 Oz. (Avocado)
21	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
21	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
21	8212471 Whirlpool Oven Paint
21	72113 Whirlpool Touch-Up Paint
21	1
21	Wire (14 Ga. 200 c Brown)
21	18 Ga. 80~c Rating (Red)
21	Wire (12 Ga. 150 c Black)
21	Wire (14 Ga. 150 c Yellow)
21	Wire (14 Ga. 150 c Green)
21	Wire (14 Ga. 150 c Blue)
21	242831 Whirlpool Oven Wire
21	Golden Harvest (Uncut)
21	Toast
21	Paint, Spray (13 Oz.) (Platinum)
21	Platinum (Uncut)
