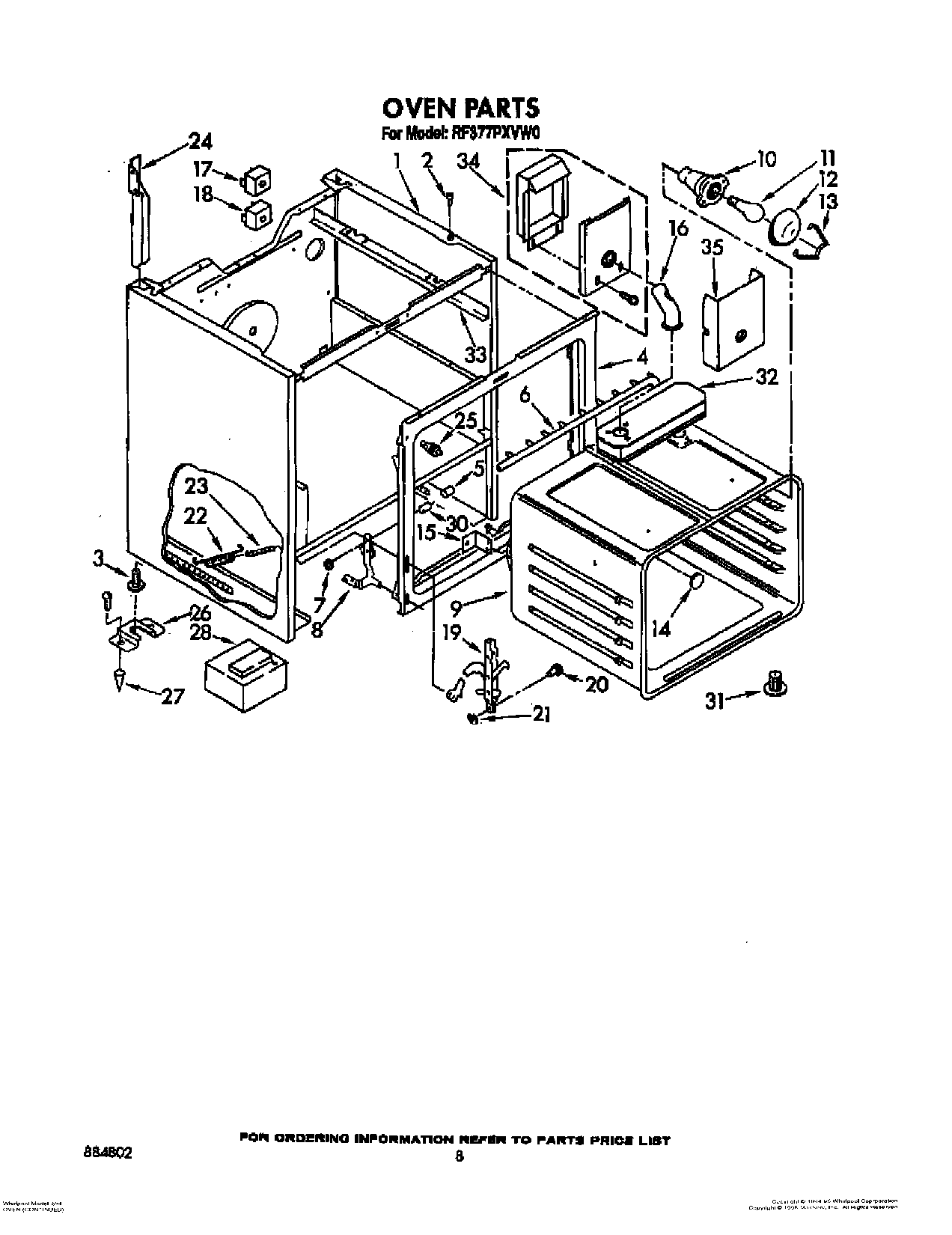

RF377PXVG0 06 – OVEN (CONTINUED)

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (Harvest Gold)
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Screw (3)
9	Oven (30`` Pyro)
10	Screw (10-12 x .875)
10	Socket, Oven Light
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Plug Button
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	Screw, 10A x 1/2 (2) (Black)
17	Sw
18	Switch, Bake
18	WPL 314215
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
24	SCREW
25	Switch, Door
26	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
26	Screw
27	Anchor, Plastic
28	Block, Balance
28	340184 Whirlpool Screw
30	Snubber, Door (2)
31	Eliminator, Smoke
32	Box, Vent
33	Support, Chassis
33	panel, top (screw, 10a x 3/8 (3))
34	Vent, Box
35	Screw (2)
35	Shield, Vent
