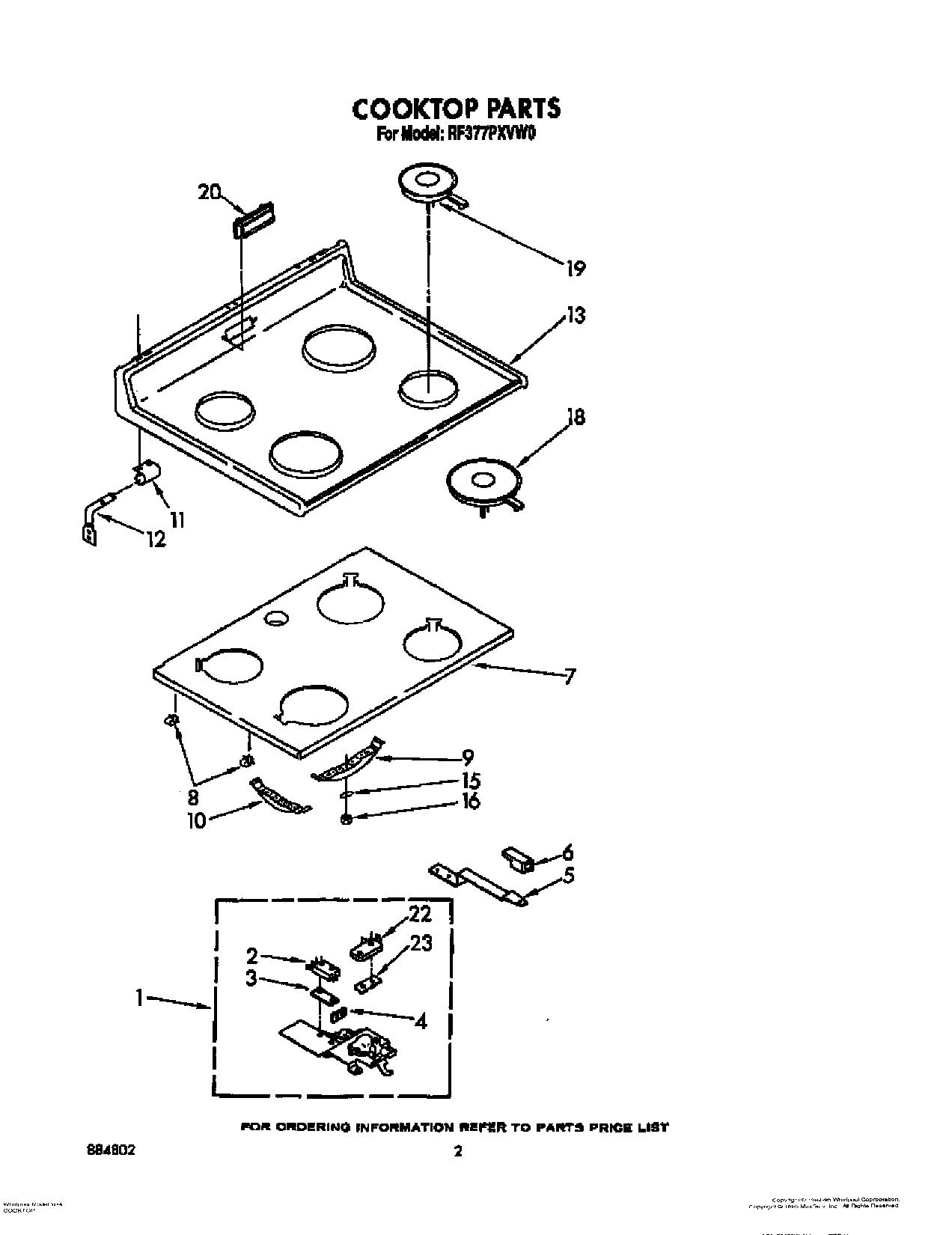

RF377PXVW0 02 – COOKTOP

Products

Position	Product
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Screw
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
7	Cooktop Support
8	Clip
9	bracket, element (1.5 KW)
10	bracket, element (2.0 KW)
11	Bracket, Cooktop (2)
12	SCREW
12	Pin, Cooktop (2)
13	Cooktop (Gold)
13	Cooktop (Almond)
13	Cooktop (White)
15	Spring, Leaf
16	hex nut (8)
18	WP3147132 Whirlpool Surface Element
19	WP3147131 Whirlpool Surface Element
20	cover, vent (almond)
20	Cover, Vent (White)
20	Cover, Vent (Gold)
20	Clip, Vent Cover
22	Switch, Lock
23	WPL 3147864
23	Screw (2)
