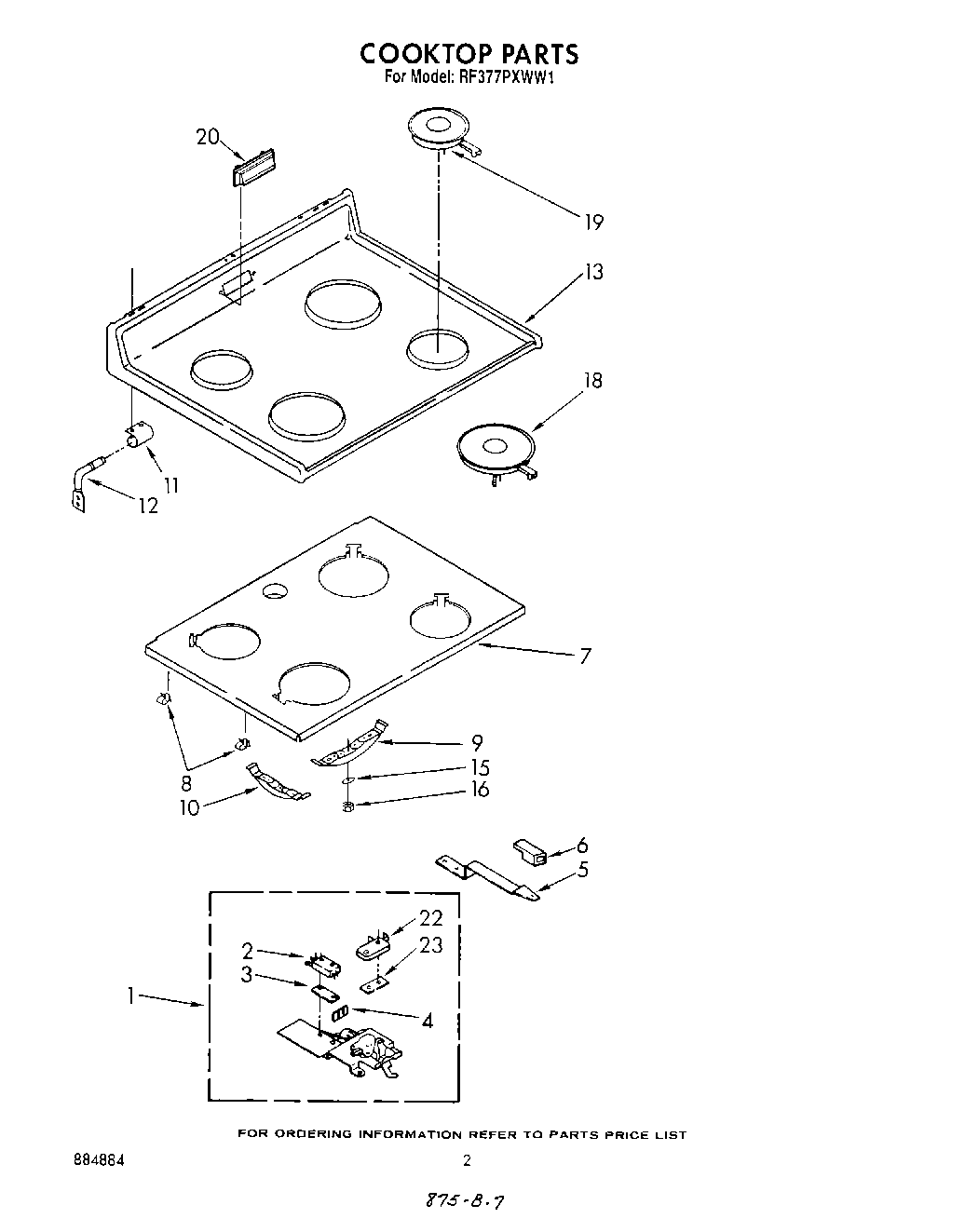

RF377PXWN1 02 – COOKTOP

Products

PositionProduct
1Latch Assembly
2Screw
2Safety Switch
3Insulator, Switch
4Screw
4Shield, Latch
5Handle, Latch
5Screw
6WP486579 Whirlpool Air Conditioner Screw
6Knob, Latch
7Cooktop Support
8Clip
9bracket, element (1.5 KW)
10bracket, element (2.0 KW)
11Bracket, Cooktop (2)
12SCREW
12Pin, Cooktop (2)
13Cooktop (Almond)
13Cooktop (White)
15Spring, Leaf
16hex nut (8)
18WP3147132 Whirlpool Surface Element
19WP3147131 Whirlpool Surface Element
20cover, vent (almond)
20Cover, Vent (White)
20Clip, Vent Cover
22Switch, Lock
23Screw (2)
23WPL 3147864
