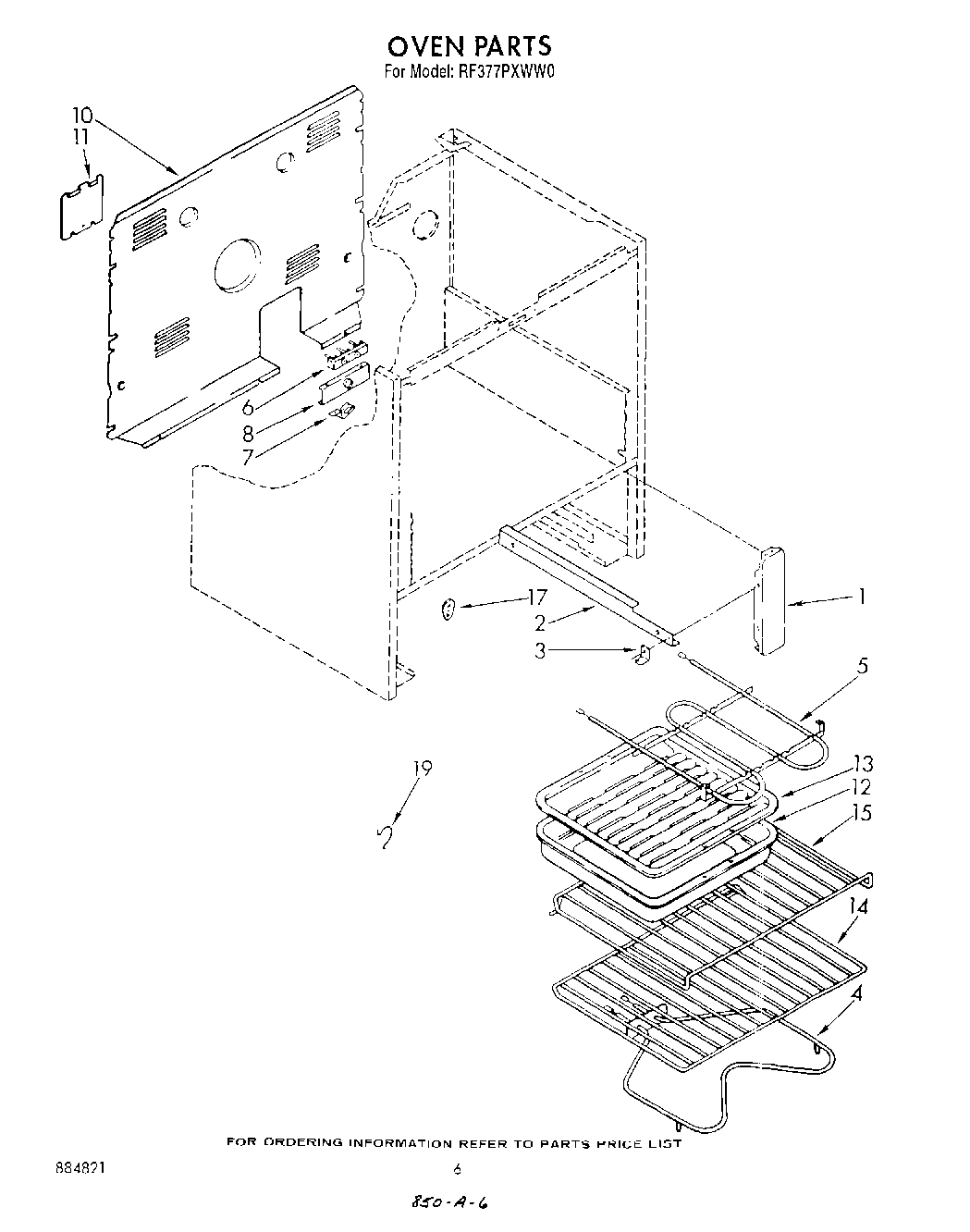

RF377PXWW0 05 – OVEN , NOT ILLUSTRATED

RF377PXWW0 05 – OVEN , NOT ILLUSTRATED

Written by

in

RF377PXWW0 05 – OVEN , NOT ILLUSTRATED

Products

Position	Product
	WPL LIT884821
	WPL LIT3149916
	WPL LIT3149684
	511873 Whirlpool Refrigerator Paint
	WPL LIT3149507
	WPL LIT3148614
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WPL 312318
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Screw, 10A x 1/2 (2) (Black)
17	WPL 311982
19	18 Ga. 80~c Rating (Red)
19	Wire (12 Ga. 150 c Black)
19	Wire (14 Ga. 150 c Yellow)
19	Wire (14 Ga. 200 c Brown)
19	1
19	Enamel, Coffee (1 Qt. Uncut)
19	Enamel, New Avocado (1 Qt. Uncut)
19	Leveler (Thinner) (2oz.)
19	8212471 Whirlpool Oven Paint
19	Grease
19	Golden Harvest
19	dressing, element
19	Rotisserie Kit
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	WPL 72112
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest (Uncut)
19	72113 Whirlpool Touch-Up Paint
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350956 Whirlpool Spray Assembly
19	350942 Whirlpool Spray Paint
19	WPL 799832
19	WPW10208653 Whirlpool Insulation
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	16515 Whirlpool Clip
19	Paint, Spray 13 Oz. (Avocado)
19	paint, spray 13 oz. (coffee)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25` Roll (Black 14 Ga.)
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	350930 Whirlpool White Spray Paint
