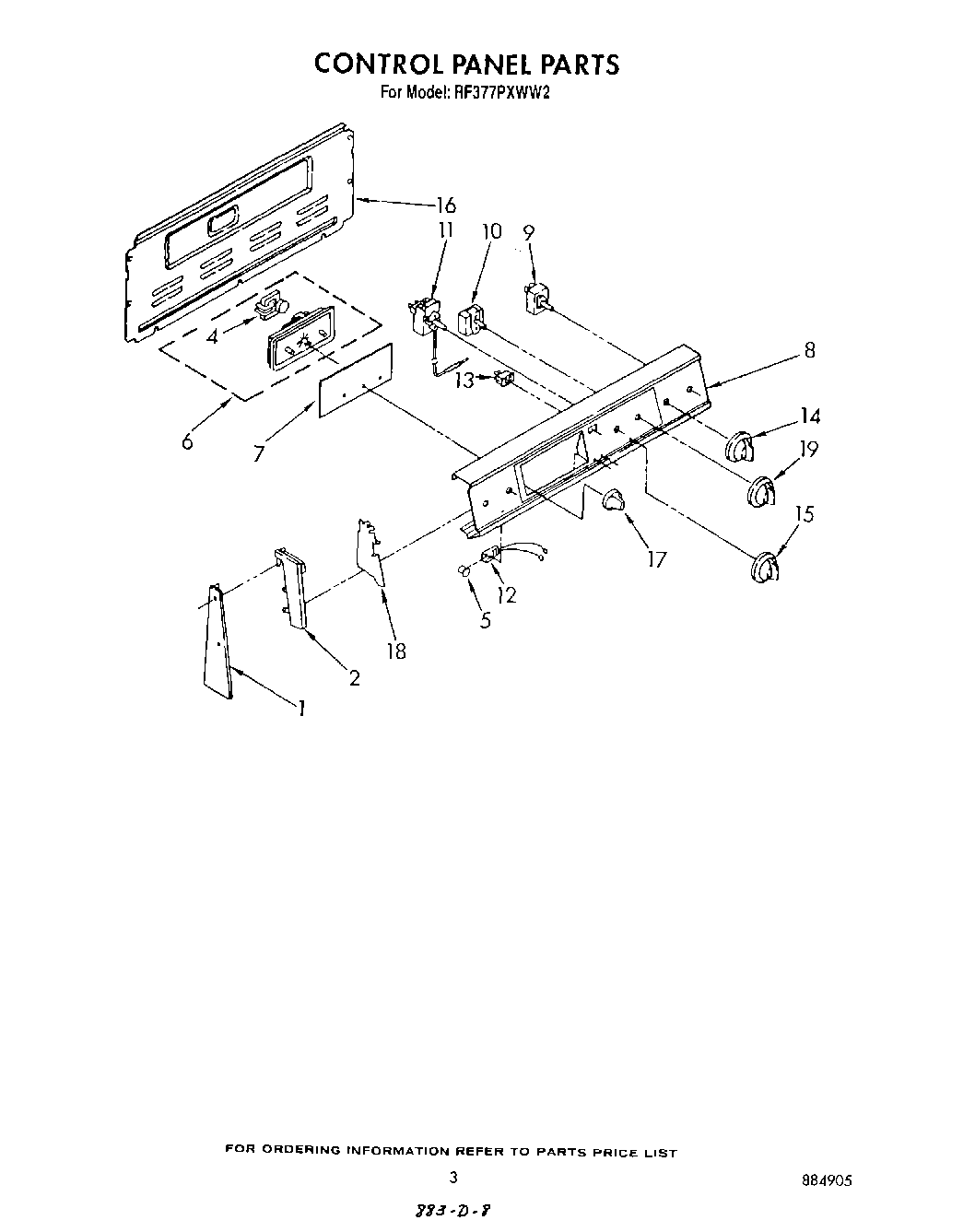

RF377PXWW2 03 – CONTROL PANEL

Products

Position	Product
1	Washer
1	Washer
1	End Trim L.H.
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
4	Motor, Timer
5	Lens, Amber
6	Timer, Clock (Includes No.6)
7	Glass, Timer
8	Control, Panel
9	SWITCH-INF
9	WP3148952 Whirlpool Oven Infinite Switch
9	WP486579 Whirlpool Air Conditioner Screw
10	Switch, Selector
11	WP313808 Whirlpool Screw
11	Thermostat, Oven
12	Indicator Light (1)
12	Light, Indicator (250V)
12	Light, Indicator (Surface Unit (2))
13	WP4314961 Whirlpool Lite Switch
14	WP3149983 Whirlpool Knob
15	Knob, Oven Temp.
16	SCREW
16	Harness-Conduit Asm.
17	Spring (3)
17	WP3169181 Whirlpool Knob
18	WP965173 Whirlpool Dishwasher Screw
18	Shield (2)
19	Knob, Selector
