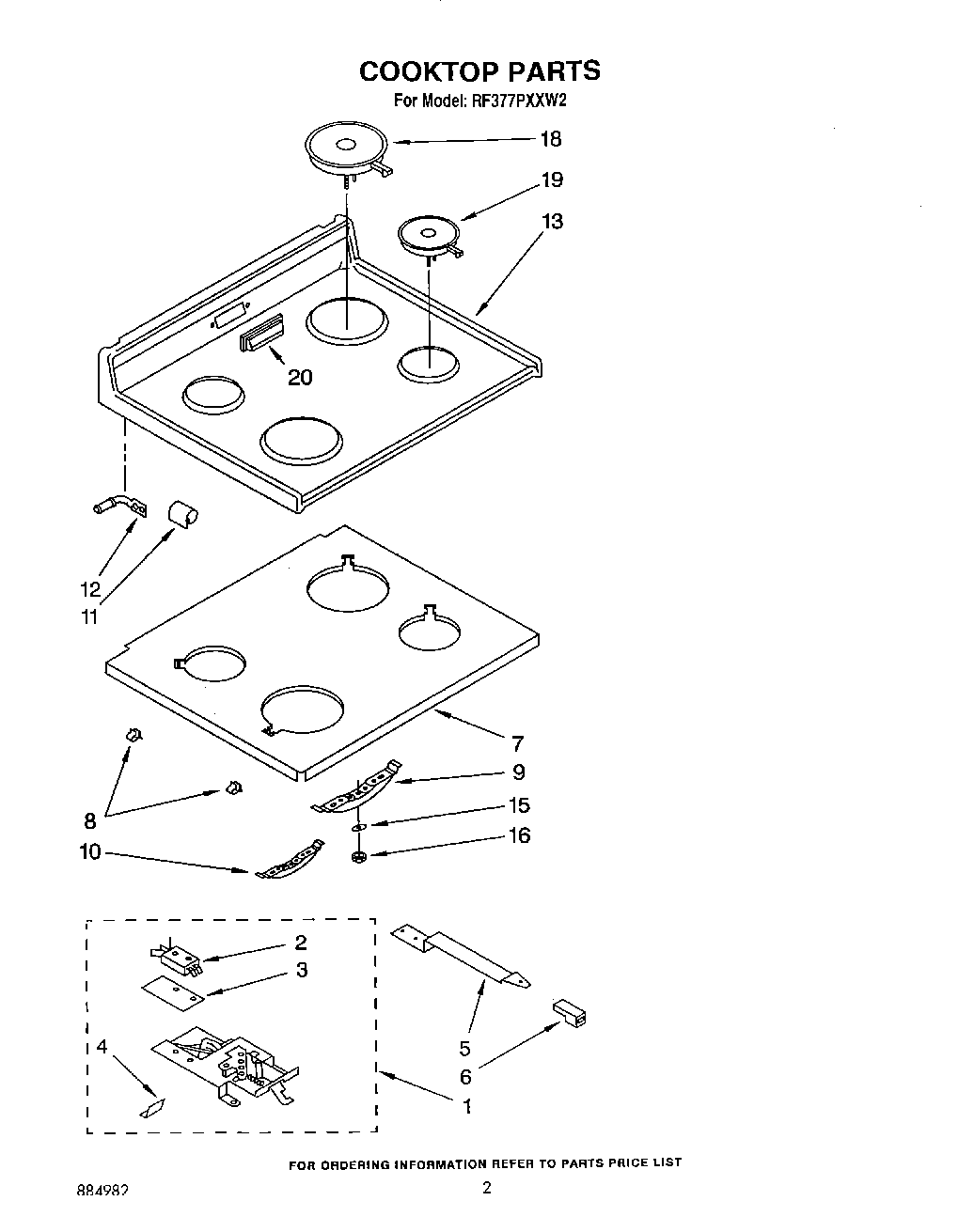

RF377PXXN2 02 – COOKTOP

Products

Position	Product
1	Latch & Switch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Screw
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	Cooktop Support
8	Clip
9	bracket, element (1.5 KW)
10	bracket, element (2.0 KW)
11	Bracket, Cooktop (2)
12	SCREW
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	Spring, Leaf
16	hex nut (8)
18	WP3147132 Whirlpool Surface Element
19	WP3147131 Whirlpool Surface Element
20	cover, vent (almond)
20	Clip, Vent Cover
20	Cover, Vent (White)
