RF377PXXN2 05 – UNIT, LIT/OPTIONAL

RF377PXXN2 05 – UNIT, LIT/OPTIONAL

Written by

in

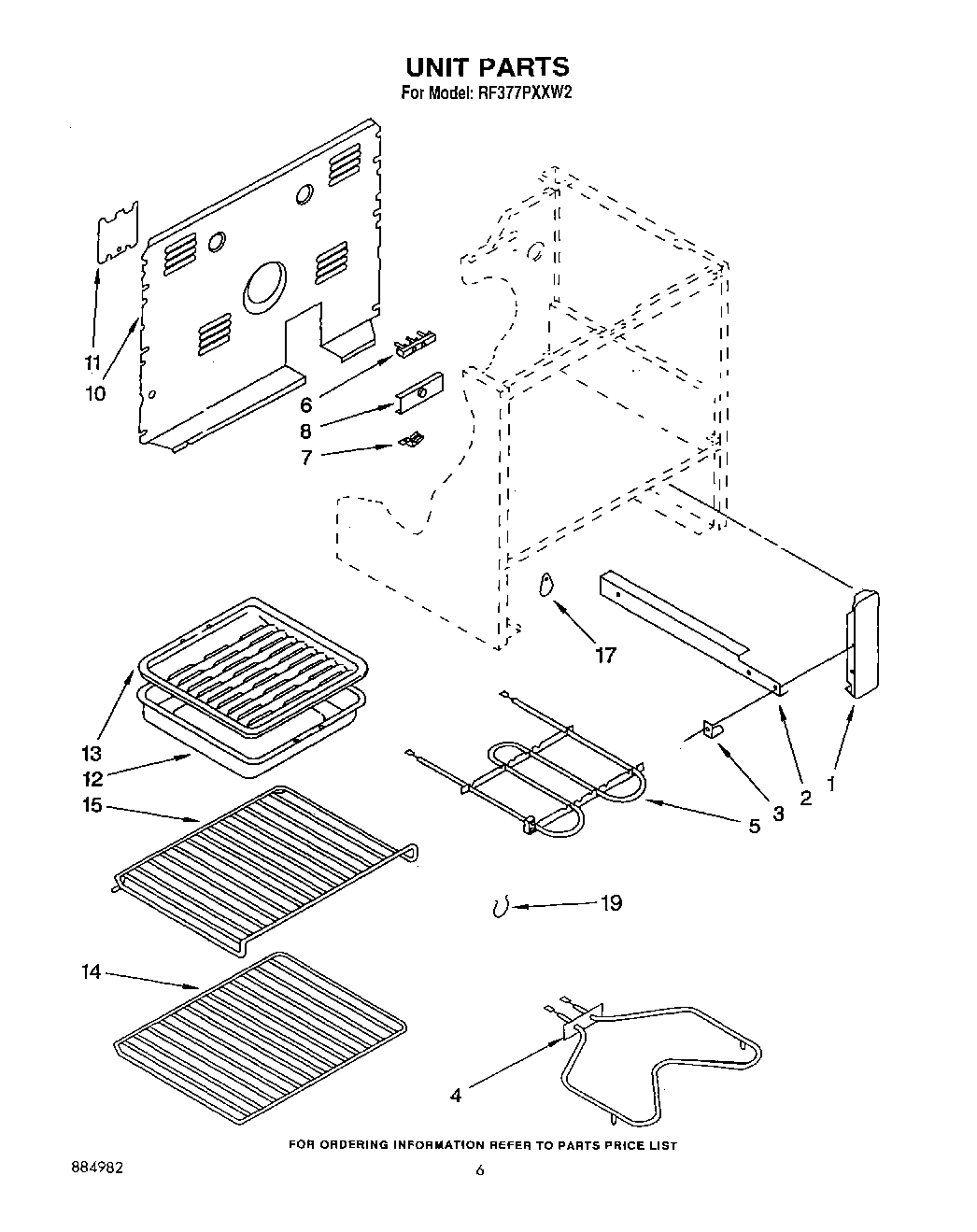

RF377PXXN2 05 – UNIT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3181501
	WPL LIT3150300
	WPL LIT3147395
	WPL LIT884982
	WPL LIT3149507
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
3	Screw, 10A x 1/2 (2) (Black)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Screw (2)
17	WPL 311982
19	Wire (12 Ga. 150 c Black)
19	Wire (14 Ga. 150 c Yellow)
19	Wire (14 Ga. 150 c Orange)
19	18 Ga. 80~c Rating (Red)
19	Wire (14 Ga. 200 c Brown)
19	1
19	Enamel, Coffee (1 Qt. Uncut)
19	8212471 Whirlpool Oven Paint
19	Grease
19	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
19	Golden Harvest
19	WPL 3169093
19	WPL 3169094
19	Leveler (Thinner) (2oz.)
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Brown)
19	350942 Whirlpool Spray Paint
19	WPL 72112
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest (Uncut)
19	72113 Whirlpool Touch-Up Paint
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350956 Whirlpool Spray Assembly
19	511873 Whirlpool Refrigerator Paint
19	WPL 799832
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	16515 Whirlpool Clip
19	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
19	Paint, Spray 13 Oz. (Avocado)
19	paint, spray 13 oz. (coffee)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	285006 Whirlpool Spray
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25` Roll (Black 14 Ga.)
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	WPW10208653 Whirlpool Insulation
19	350930 Whirlpool White Spray Paint
