RF377PXXW0 05 – OVEN , LIT/OPTIONAL

RF377PXXW0 05 – OVEN , LIT/OPTIONAL

Written by

in

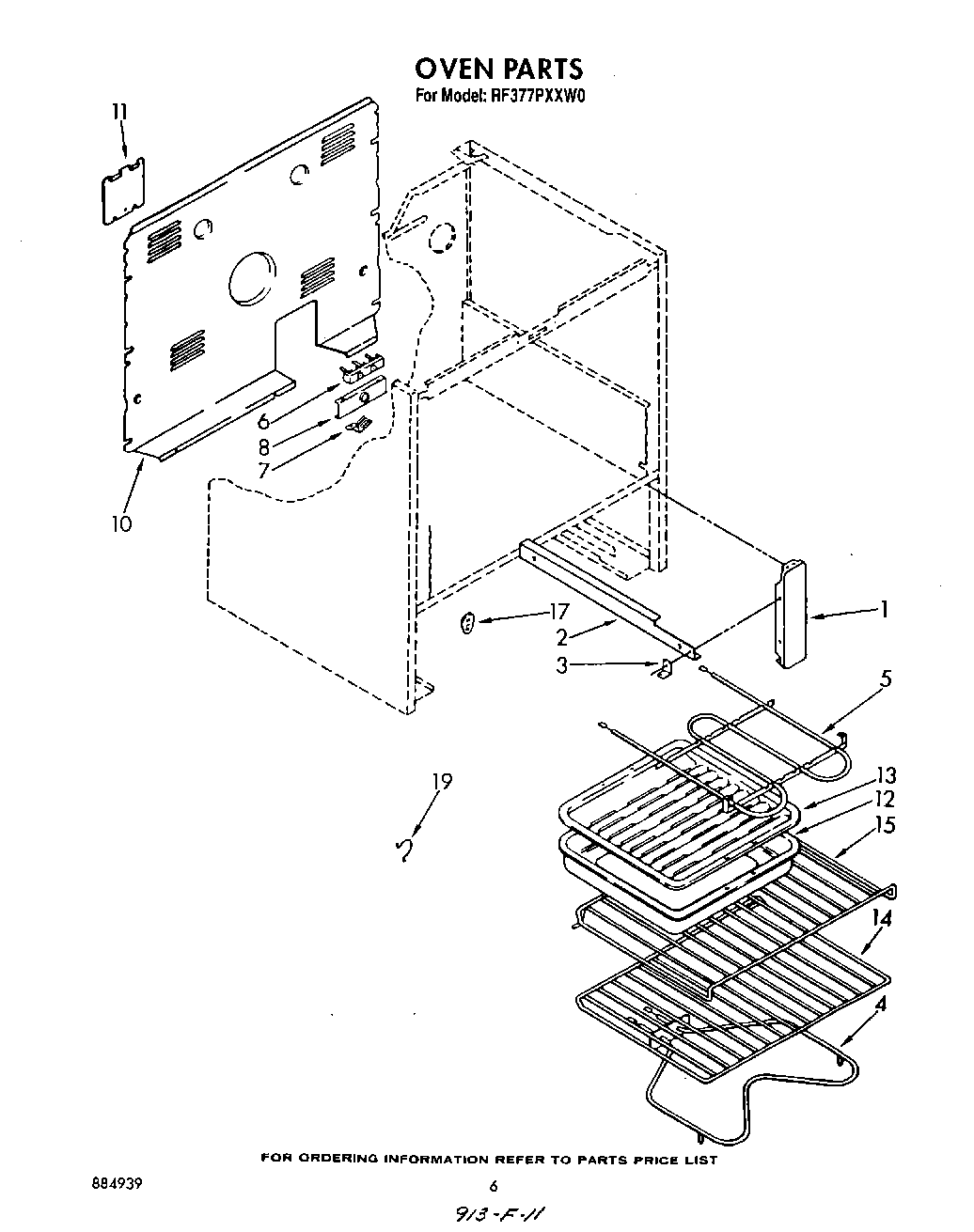

RF377PXXW0 05 – OVEN , LIT/OPTIONAL

Products

PositionProduct
WPL LIT3150271
FOIL, ALUMINUM OVEN (18“ X 25 )
285006 Whirlpool Spray
72109 Whirlpool Dacor Avocado Touch-Up Paint
Paint, Touch-Up 1/2 Oz. (Coffee)
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
WPL 310433
WPL LIT884939
Enamel, Coffee (1 Qt. Uncut)
Leveler (Thinner) (2oz.)
8212471 Whirlpool Oven Paint
Grease
WPL LIT3149507
dressing, element
Instructions, Installation
WPL LIT3181501
WPW10208653 Whirlpool Insulation
WPL 799832
350942 Whirlpool Spray Paint
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Almond (Uncut)
WP72107 Whirlpool Touchup
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
511873 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Rail L.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5Screw (2)
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
6WP112432 Whirlpool Nut Assembly
7Clip, Ground Wire
7WPL 308498
8Bracket, Service
10Cover, Rear
11Cover, Service
11SCREW
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
17WPL 311982
17Screw, 10A x 1/2 (2) (Black)
19Wire, 25` Roll (Red 14 Ga.)
19Wire, 25` Roll (Black 14 Ga.)
19Wire, 25“ Roll (White 14 GA.)
19Wire (12 Ga. 150 c Black)
1916515 Whirlpool Clip
19242831 Whirlpool Oven Wire
19Wire (14 Ga. 150 c Blue)
19Wire (14 Ga. 150 c Green)
19Wire (14 Ga. 150 c Orange)
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Yellow)
191
19Wire (14 Ga. 200 c Brown)
1918 Ga. 80~c Rating (Red)
