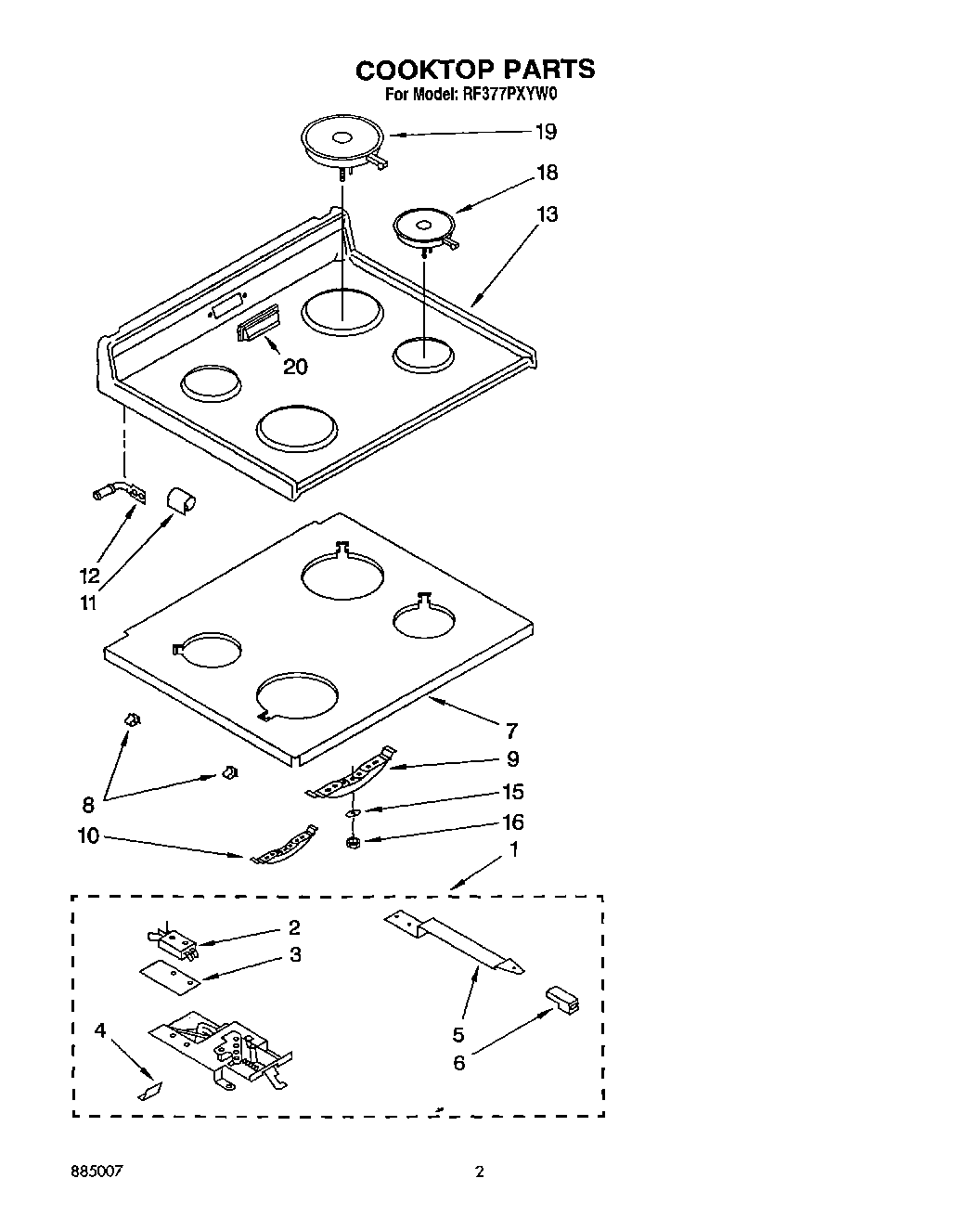

RF377PXYN0 02 – COOKTOP

Products

PositionProduct
1Latch Asm Complete W/Wiring Harness
2Screw
2Safety Switch
3Insulator, Switch
4Screw
4Shield, Latch
5Handle, Latch
5Screw
6WP486579 Whirlpool Air Conditioner Screw
6Knob, Latch
7Cooktop Support
8Clip
9bracket, element (1.5 KW)
10bracket, element (2.0 KW)
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
12SCREW
13Cooktop (Almond)
13Cooktop (White)
15Spring, Leaf
16hex nut (8)
18Element (6“)
19Element (8“)
20cover, vent (almond)
20Cover, Vent (White)
20Clip, Vent Cover
