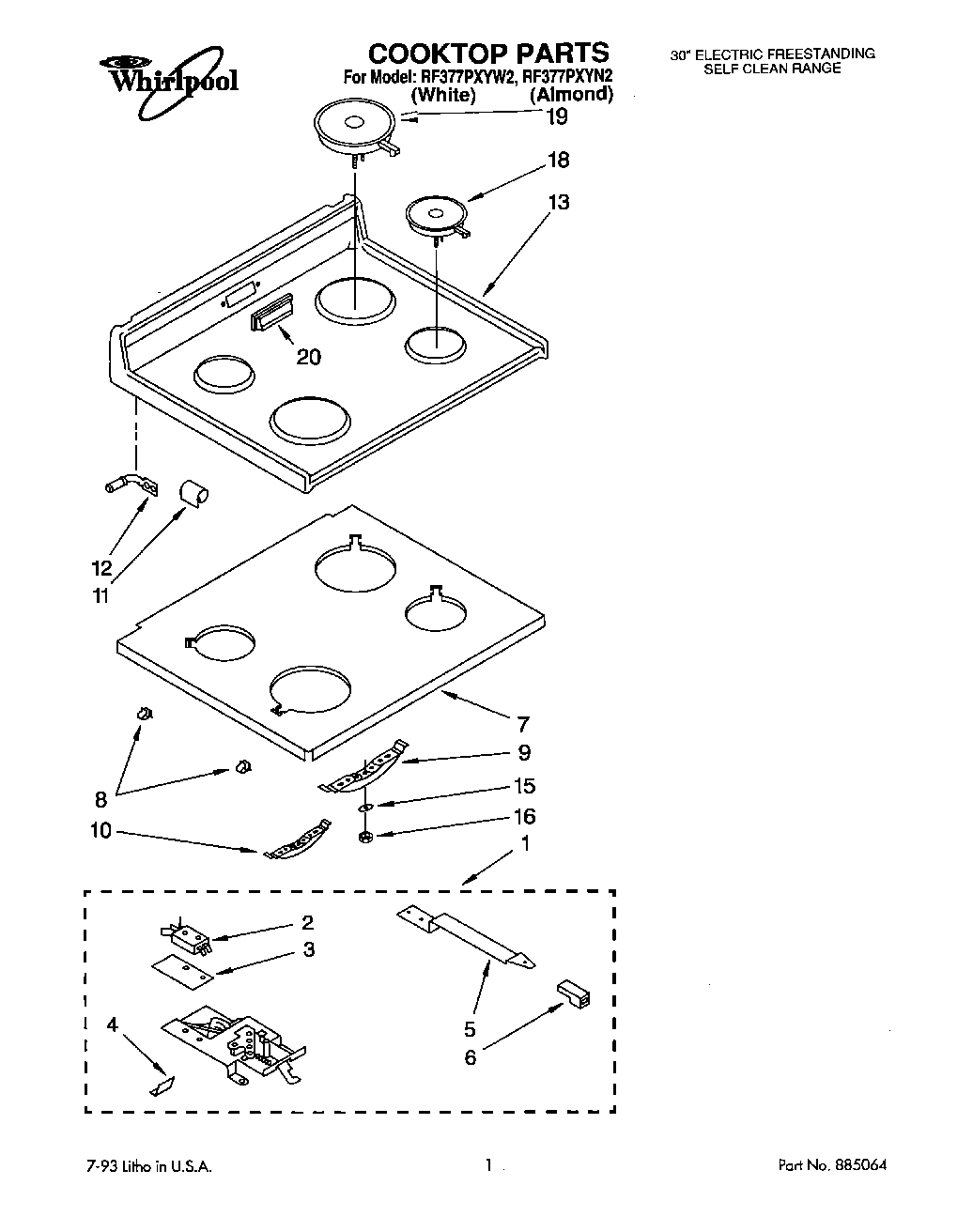

| 1 | Latch Asm Complete W/Wiring Harness |
| 2 | Screw |
| 2 | Safety Switch |
| 3 | Insulator, Switch |
| 4 | Screw |
| 4 | Shield, Latch |
| 5 | Handle, Latch |
| 5 | Screw |
| 6 | Knob, Latch |
| 6 | WP486579 Whirlpool Air Conditioner Screw |
| 7 | Cooktop Support |
| 8 | Clip |
| 9 | bracket, element (1.5 KW) |
| 10 | bracket, element (2.0 KW) |
| 11 | Bracket, Cooktop (2) |
| 12 | SCREW |
| 12 | Pin, Cooktop (2) |
| 13 | Cooktop (Almond) |
| 13 | WP308685 Whirlpool Microwave Screw |
| 13 | Cooktop (White) |
| 15 | Spring, Leaf |
| 16 | hex nut (8) |
| 18 | Element (6``) |
| 19 | Element (8``) |
| 20 | cover, vent (almond) |
| 20 | Cover, Vent (White) |
| 20 | Clip, Vent Cover |
