RF377PXYN2 04 – UNIT, LIT/OPTIONAL

Products

PositionProduct
WPL LIT3183556
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WPL 310433
Paint, Spray 13 Oz. (Avocado)
paint, spray 13 oz. (coffee)
Paint, Touch-Up 1/2 Oz. (Coffee)
72109 Whirlpool Dacor Avocado Touch-Up Paint
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Instructions, Installation
WPL LIT677973
dressing, element
WPL LIT3150400
WPL LIT3187481
Grease
8212471 Whirlpool Oven Paint
Leveler (Thinner) (2oz.)
1
Wire (14 Ga. 200 c Brown)
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
350942 Whirlpool Spray Paint
WPL 72112
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest (Uncut)
Golden Harvest
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WP72107 Whirlpool Touchup
WPL 799832
Almond (Uncut)
Wire, 25` Roll (Black 14 Ga.)
350930 Whirlpool White Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
350956 Whirlpool Spray Assembly
511873 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
72113 Whirlpool Touch-Up Paint

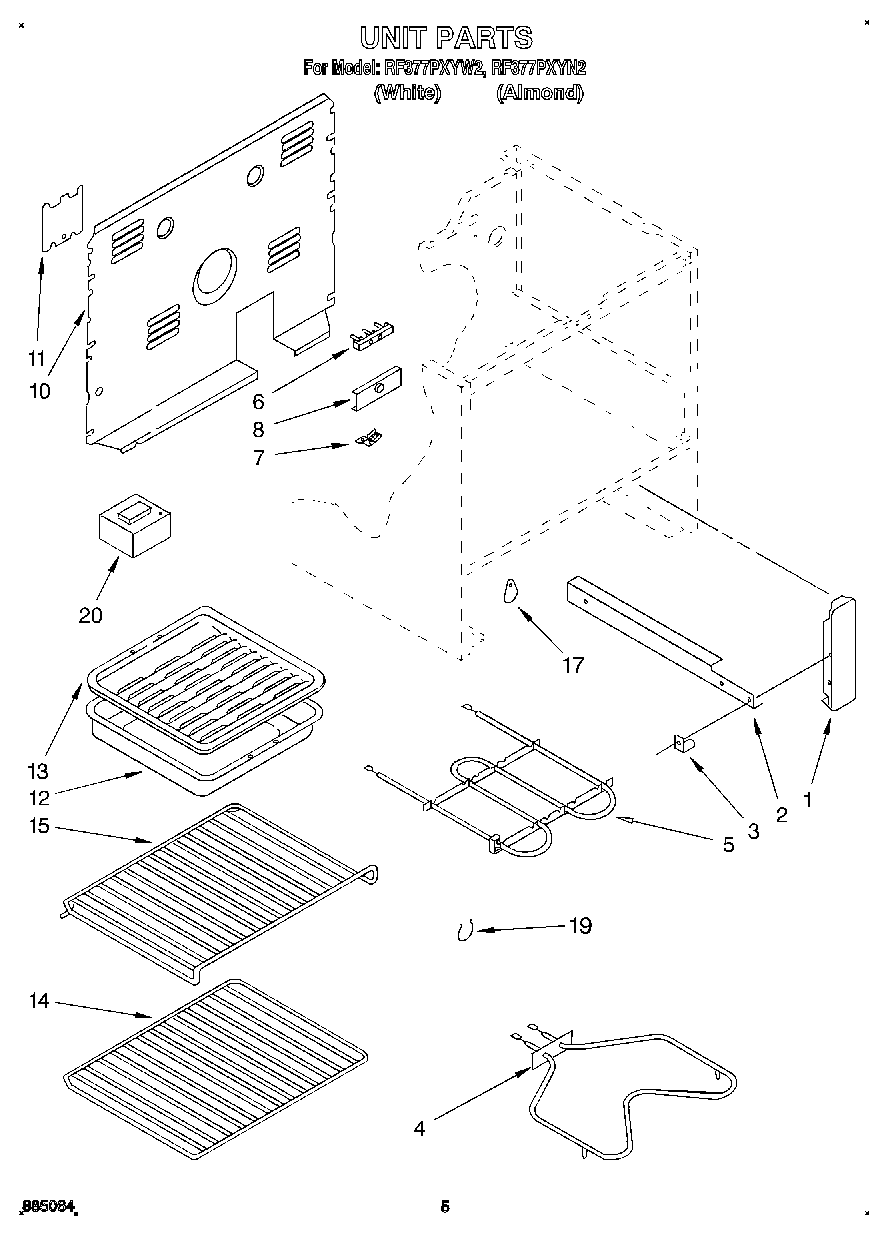

1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Rail L.H. (Includes Illus. 3)
3Glide, Front (2)
3Screw, 10A x 1/2 (2) (Black)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6WP112432 Whirlpool Nut Assembly
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11Cover, Service
11SCREW
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
17WPL 311982
17Screw (2)
1916515 Whirlpool Clip
208273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20Block, Balance
20WPL 3169094
20WPL 3169093
