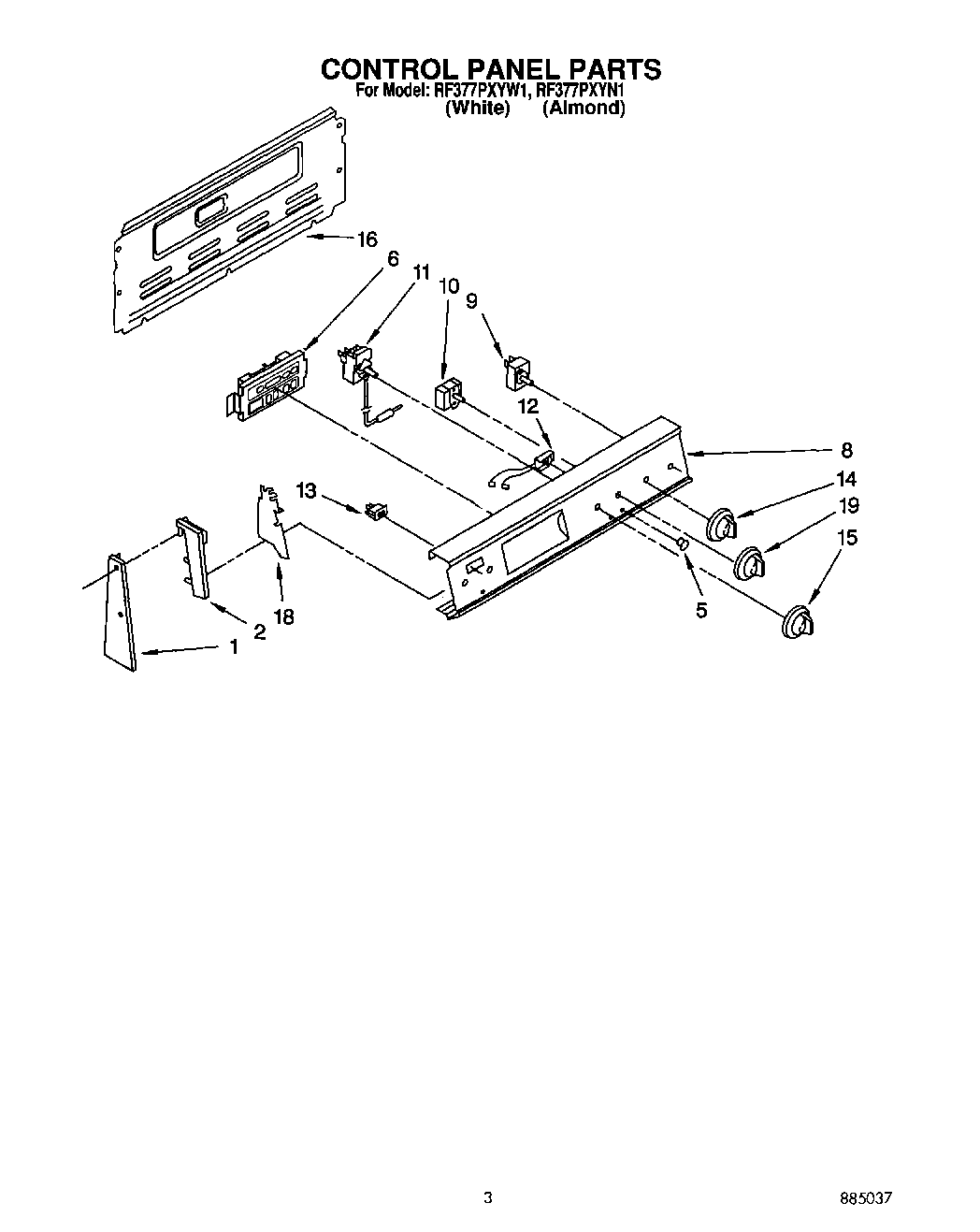

RF377PXYW1 02 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×1“
1Washer
1Screw 10-32×7/16“
2End Cap R.H.
2End Cap L.H.
2Screw,
5Lens, Amber
6Timer, Electronic
8Panel, Control
9SWITCH-INF
9WP486579 Whirlpool Air Conditioner Screw
9WP3149400 Whirlpool Oven Infinite Switch
10Switch, Selector
1198005642 Whirlpool Clip
11WP313808 Whirlpool Screw
11Thermostat, Oven
12Light, Indicator
12Light, Indicator (250V)
13Switch, Rocker
14Knob, (4) Infinite Switch (White/Almond/Gold)
15Knob (Temp) (White/Almond)
16Harness-Conduit Asm.
16SCREW
18Shield (2)
18WP965173 Whirlpool Dishwasher Screw
19Knob (Selector)
