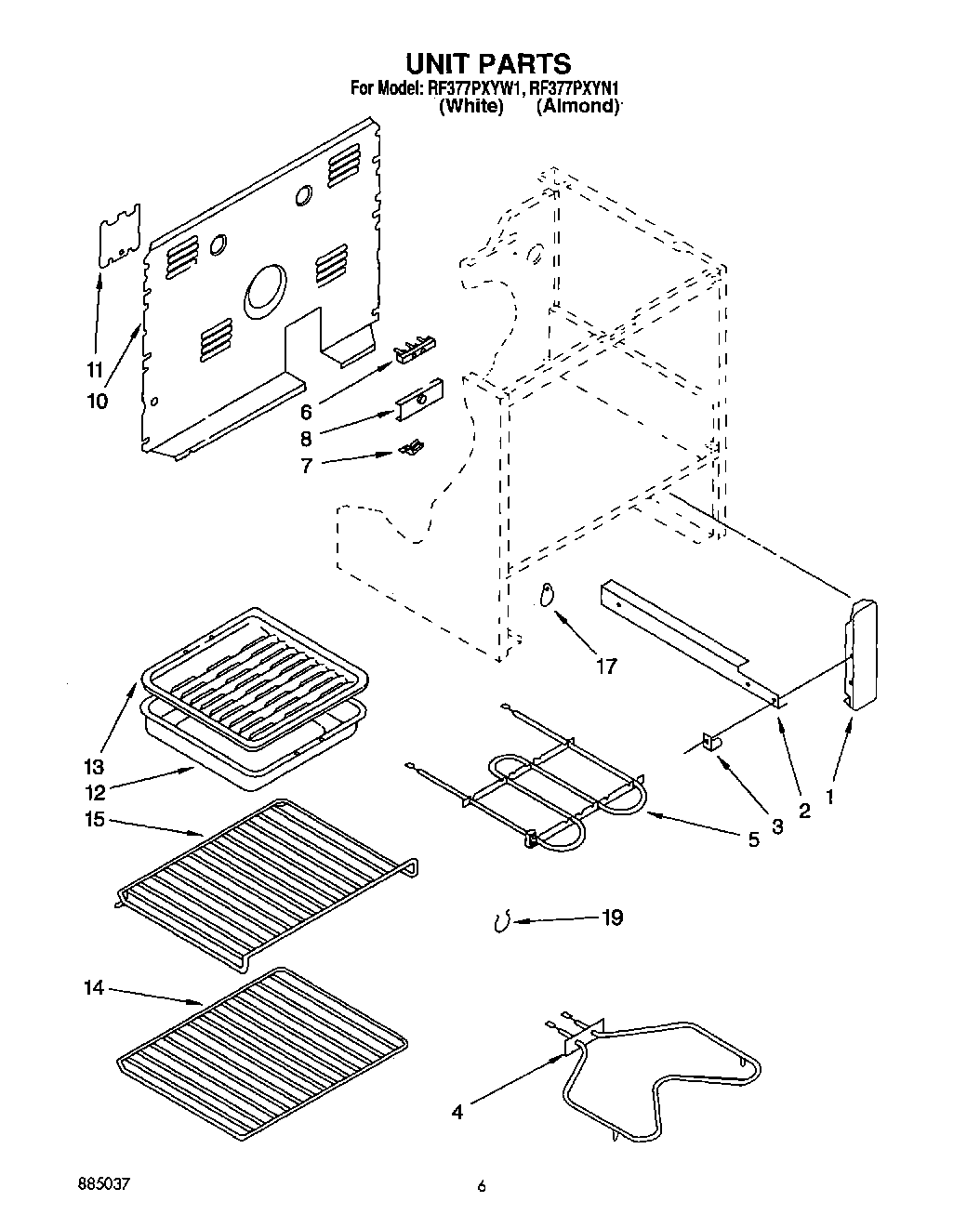

RF377PXYW1 04 – UNIT, LIT/OPTIONAL

Products

PositionProduct
WPL LIT3183556
WPL LIT3150280
Instructions, Installation
WPL LIT885037
1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Rail L.H. (Includes Illus. 3)
3Screw, 10A x 1/2 (2) (Black)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6WP8203546 Whirlpool Terminal Block
6Screw, (2) 10-16 x 1
6WP112432 Whirlpool Nut Assembly
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11SCREW
11Cover, Service
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
17WPL 311982
17Screw (2)
19Wire (12 Ga. 150 c Black)
19Wire (14 Ga. 150 c Yellow)
19Leveler (Thinner) (2oz.)
19Wire (14 Ga. 150 c Orange)
1918 Ga. 80~c Rating (Red)
19Wire (14 Ga. 200 c Brown)
19dressing, element
19WPL 3169094
19WPL 3169093
19Golden Harvest
198273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
19Grease
198212471 Whirlpool Oven Paint
191
19Wire (14 Ga. 150 c Green)
19Wire (14 Ga. 150 c Brown)
19350942 Whirlpool Spray Paint
19WPL 72112
19Platinum (Uncut)
19Enamal, Toast (1 Qt. Uncut)
19Paint, Spray (13 Oz.) (Platinum)
19Toast
19Golden Harvest (Uncut)
1972113 Whirlpool Touch-Up Paint
1972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19Almond (Uncut)
19WP72107 Whirlpool Touchup
19799344 Whirlpool Refrigerator Paint
1972017 Whirlpool Appliance Touch-Up Paint White
19350956 Whirlpool Spray Assembly
19511873 Whirlpool Refrigerator Paint
19WPL 799832
19Wire (14 Ga. 150 c Blue)
19242831 Whirlpool Oven Wire
1972109 Whirlpool Dacor Avocado Touch-Up Paint
1916515 Whirlpool Clip
19WPL 310433
19Paint, Spray 13 Oz. (Avocado)
19paint, spray 13 oz. (coffee)
19Paint, Touch-Up 1/2 Oz. (Coffee)
19285006 Whirlpool Spray
19Wire, 25“ Roll (White 14 GA.)
19Wire, 25` Roll (Red 14 Ga.)
19Wire, 25` Roll (Black 14 Ga.)
19FOIL, ALUMINUM OVEN (18“ X 25 )
19WPW10208653 Whirlpool Insulation
19350930 Whirlpool White Spray Paint
