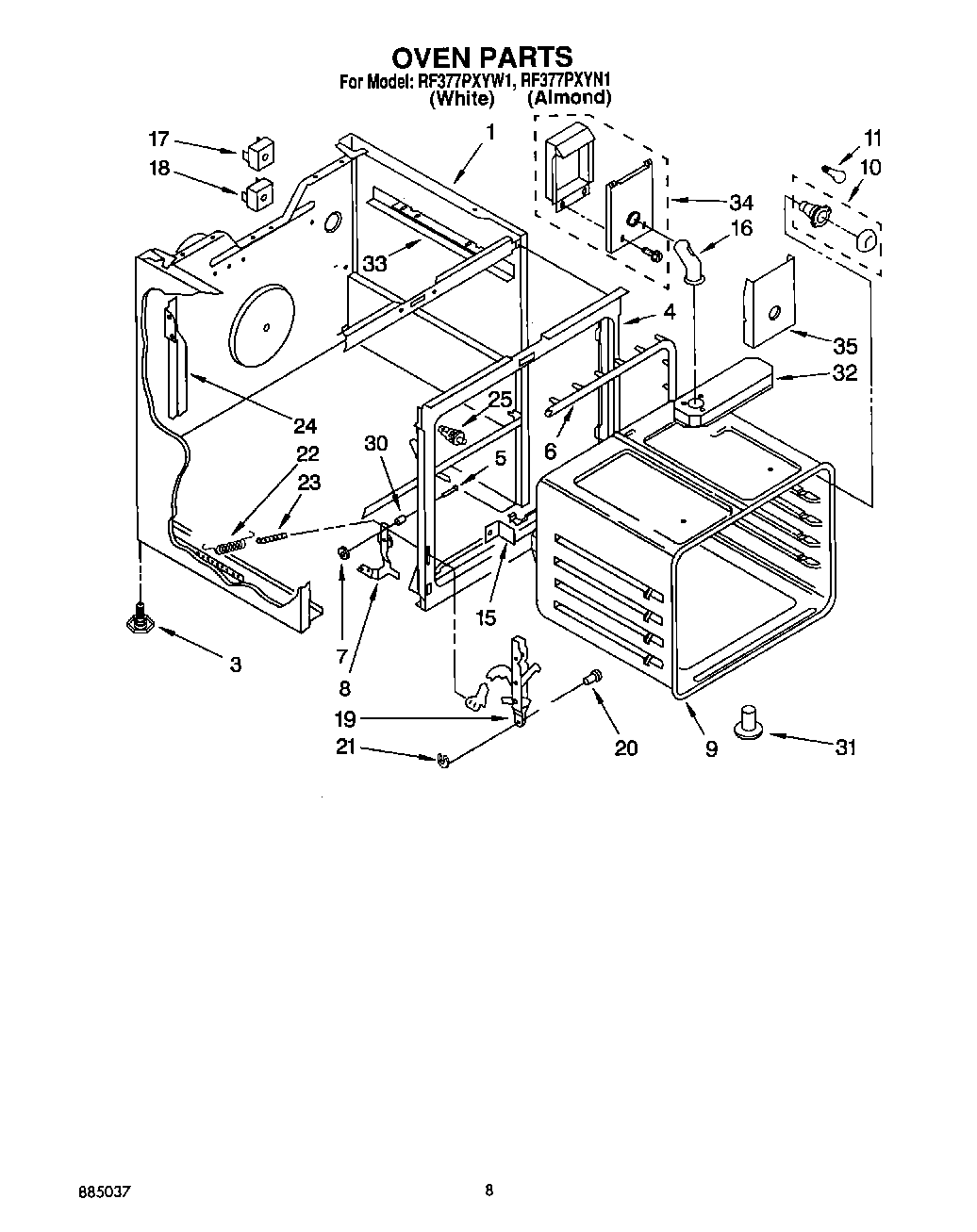

RF377PXYW1 05 – OVEN

Products

Position	Product
1	Main Chassis (Almond)
1	Main Chassis (White)
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Screw (Top)
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, L.H.
8	Hinge, R.H.
9	Oven (30“ Pyro)
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	RANGE ONLY 40W 120V APPL BULB
15	Bracket, Oven (Mounting)
16	Screw, 10A x 1/2 (2) (Black)
16	Vent, Oven
17	Sw
18	WPL 314215
18	Switch, Bake
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	WP308126 Whirlpool Door Spring
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover
24	Wire Cover-Controls (Right)
25	Switch, Door
30	Snubber, Door (2)
31	Tube, Vent
32	Box Vent
32	SCREW
33	Support, Chassis
33	WP3390631 Whirlpool Screw
34	Vent, Box
34	WP488627 Whirlpool Refrigerator Screw
35	Screw (2)
35	Shield, Vent
