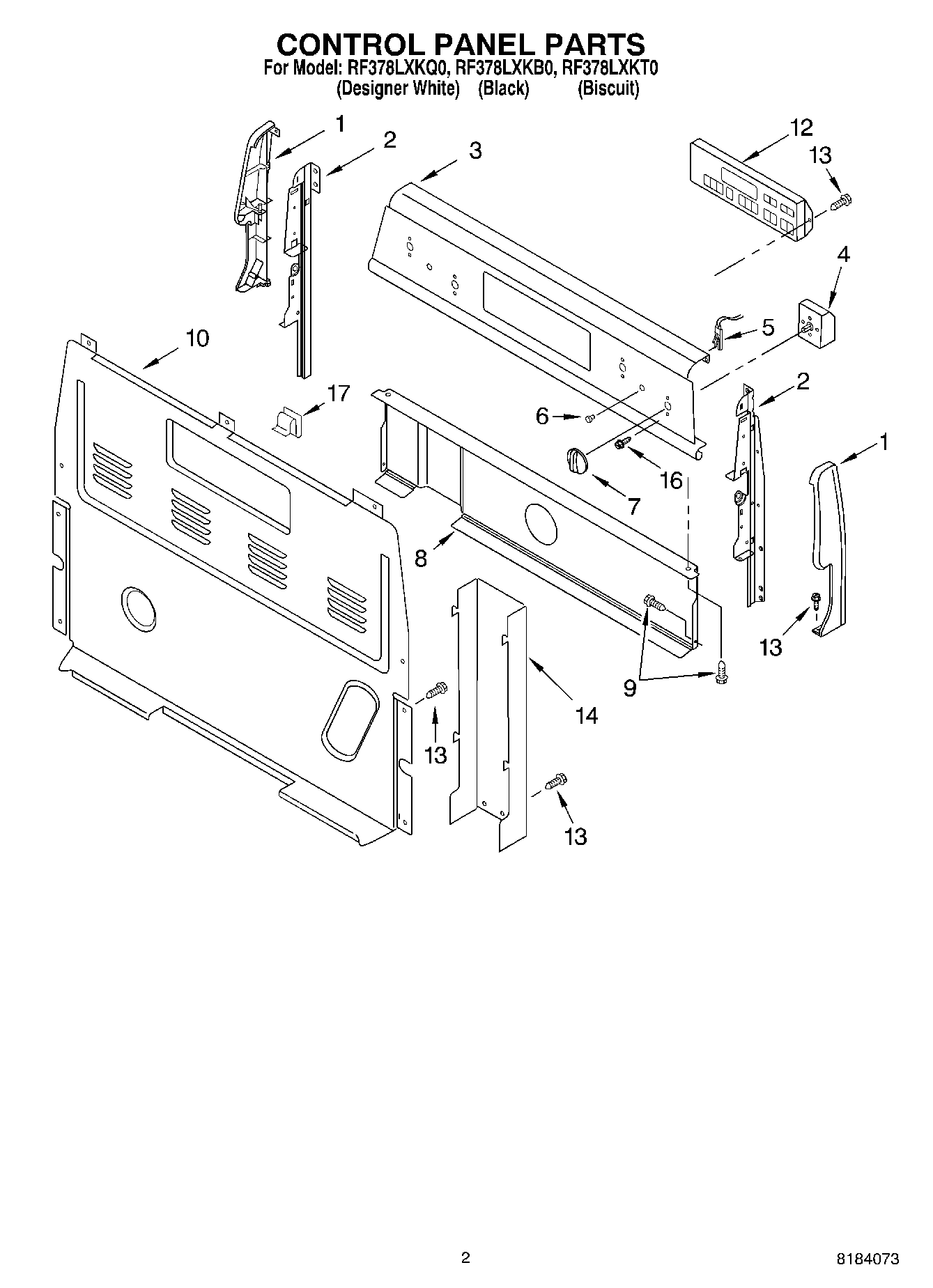

RF378LXKB0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (White Right Hand)
1Endcap (Black Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap, Right Hand (Black)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard
3Panel, Backguard
3Panel, Backguard (Biscuit)
4WP3149404 Whirlpool Oven Surface Element Switch
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP8522565 Whirlpool Knob
7WP8522566 Whirlpool Knob
7Knob, Control (4) (Biscuit)
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range (White)
12Control, Range (Black)
12Control, Range (Biscuit)
13SCREW
14WPW10326122 Whirlpool Black Cover
16WP3400882 Whirlpool Screw
17WP8273564 Whirlpool Clip
