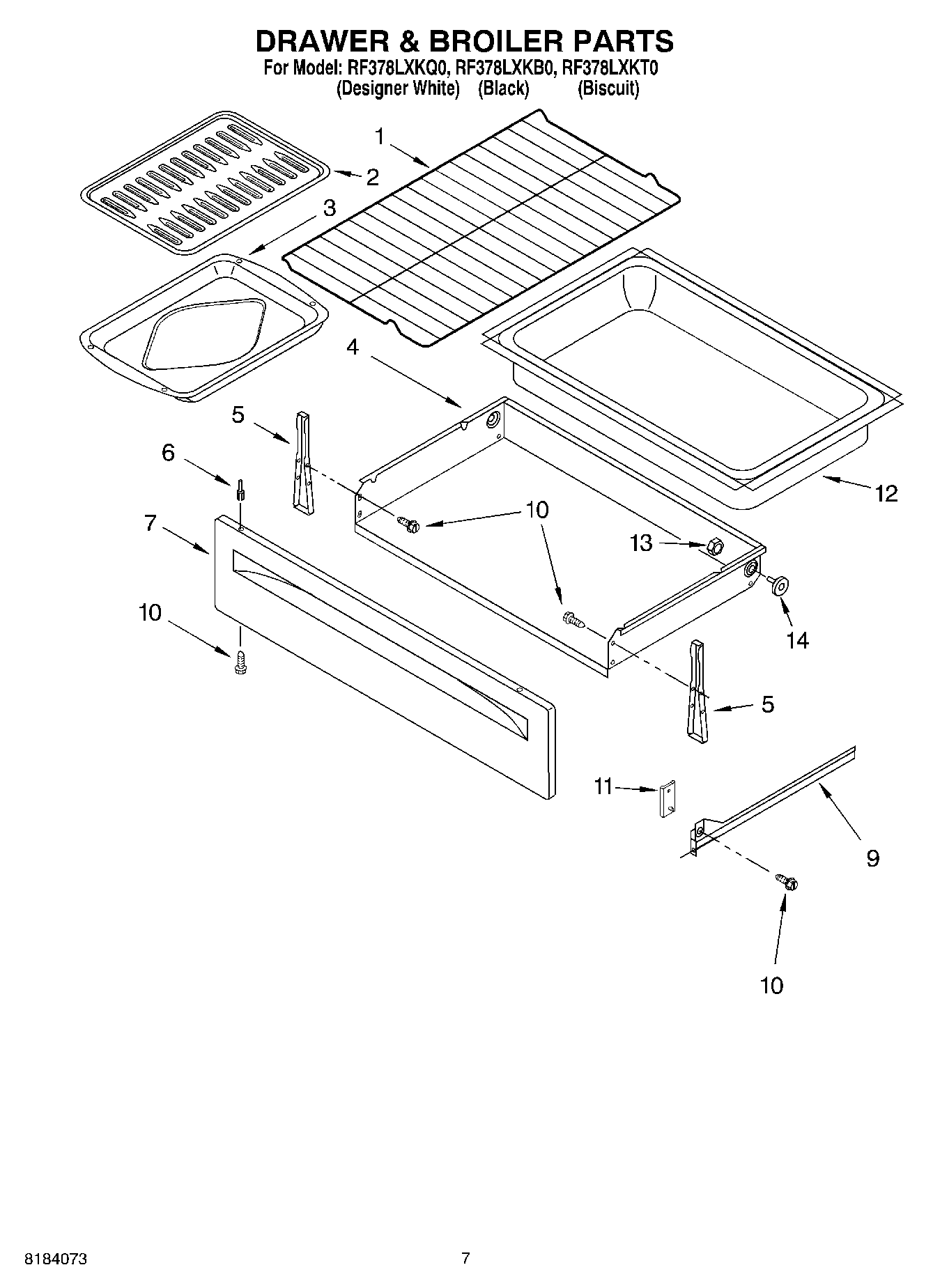

RF378LXKT0 05 – DRAWER & BROILER

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196813 Whirlpool Rivet
6	WP3196814 Whirlpool Rivet
7	W11230488 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
7	W11230476 Whirlpool Drawer Panel
9	Rail, Drawer (Left Hand)
9	Rail, Drawer (Right Hand)
10	WP3400832 Whirlpool Screw
11	Spacer, Glide
12	Liner, Drawer
13	WP487939 Whirlpool Refrigerator Nut
14	18 Ga. 80~c Rating (Red)
14	Wire (14 Ga. 200 c Brown)
14	Wire (14 Ga. 150 c Yellow)
14	Wire (14 Ga. 150 c Orange)
14	Wire (12 Ga. 150 c Black)
14	1
14	WPL 8272999
14	WPL 8273266
14	WP3196154 Whirlpool Screw Assembly
14	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
14	Grease
14	3196696 Whirlpool Clip
14	3184020 Whirlpool Oven Wire
14	8212471 Whirlpool Oven Paint
14	W11244557 Whirlpool Screw
14	WPL 8274001
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Brown)
14	FOIL, ALUMINUM OVEN (18“ X 25 )
14	WPW10208653 Whirlpool Insulation
14	WPL 799832
14	511873 Whirlpool Refrigerator Paint
14	4392901 Whirlpool Biscuit Spray Paint
14	4392899 Whirlpool Biscuit Touch-Up Paint
14	350942 Whirlpool Spray Paint
14	799344 Whirlpool Refrigerator Paint
14	72017 Whirlpool Appliance Touch-Up Paint White
14	Wire, 25` Roll (Black 14 Ga.)
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25“ Roll (White 14 GA.)
14	Wire (14 Ga. 150 c Blue)
14	242831 Whirlpool Oven Wire
14	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
14	Clip, Ground Wire
14	3400964 Whirlpool Oven Clip
14	814229 Whirlpool Primary Roller
14	814381 Whirlpool Pin
14	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
14	285006 Whirlpool Spray
14	350930 Whirlpool White Spray Paint
