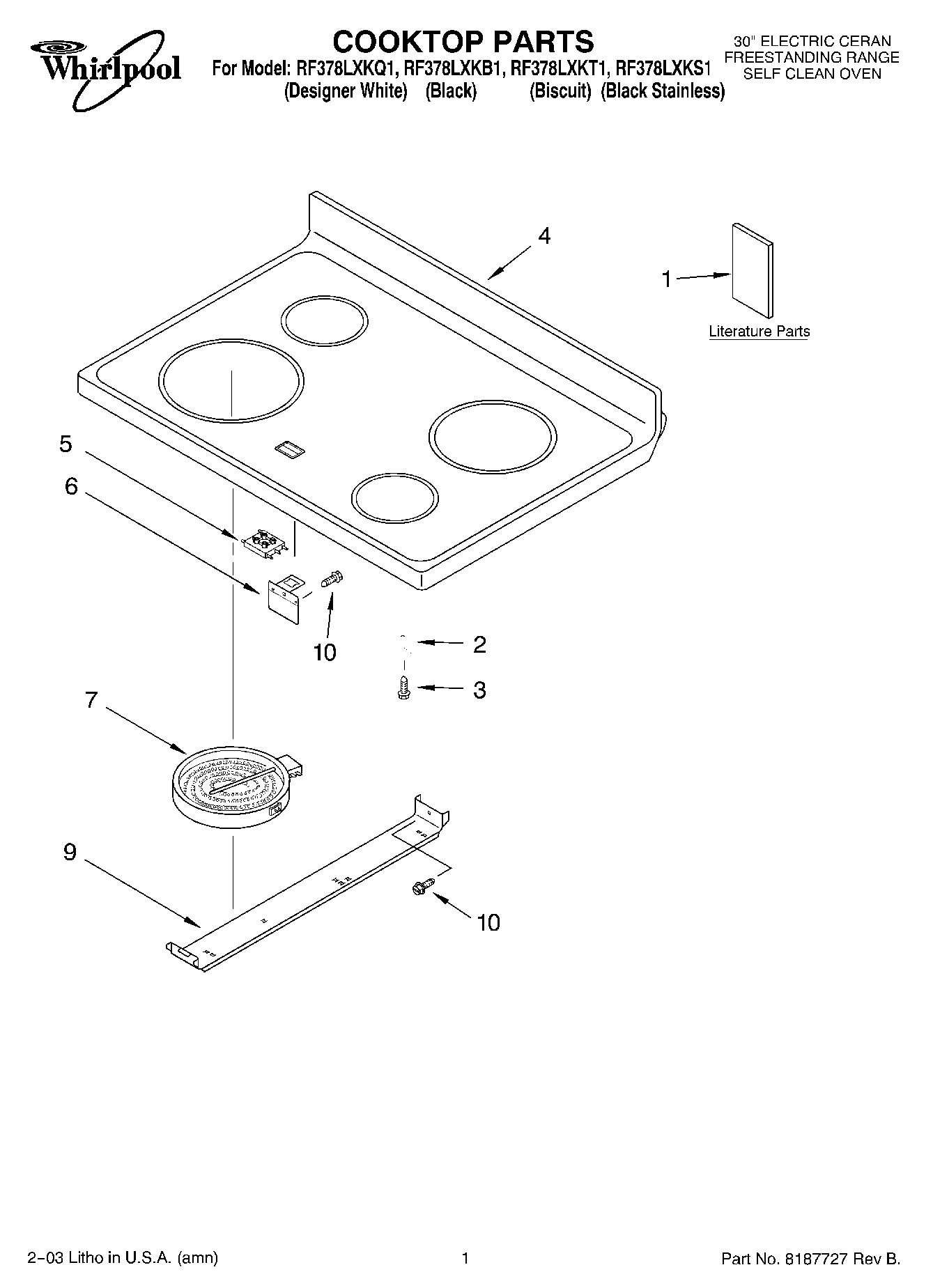

RF378LXKT1 01 – COOKTOP PARTS

RF378LXKT1 01 – COOKTOP PARTS

Written by

in

RF378LXKT1 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Tech Sheet)
1Literature (Instruction, Installation)
1Guide, Use & Care
1Literature Parts (English/Spanish)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Black)
4Cooktop (White)
4Cooktop (Biscuit)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823698 Whirlpool Surface Element Right Rear
7W10823696 Whirlpool Radiant Surface Element
7W10823711 Whirlpool Surface Element Left Front and Right Rear
9Bracket, Element
10WP3196557 Whirlpool Screw
