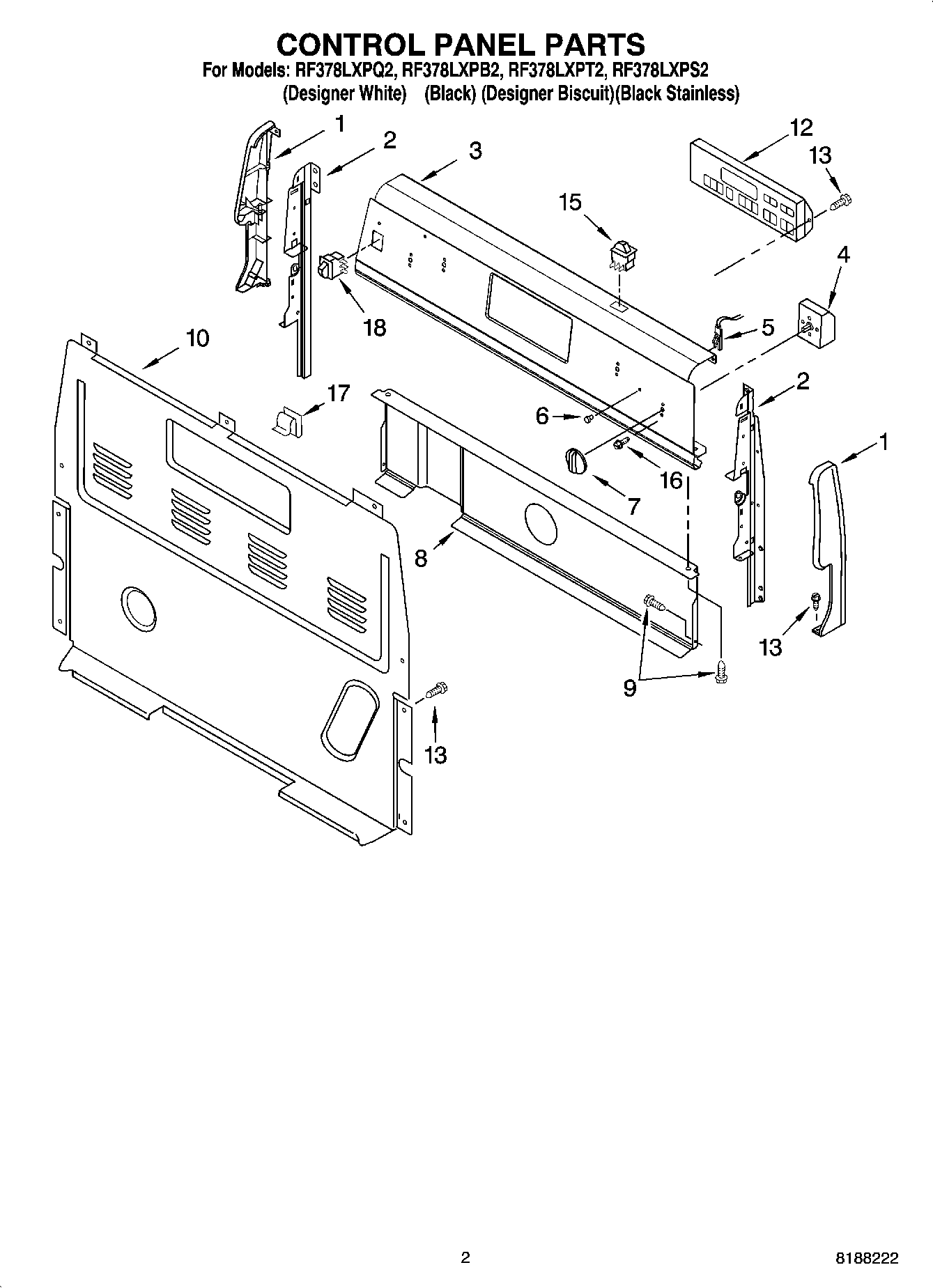

RF378LXPB2 02 – CONTROL PANEL PARTS

RF378LXPB2 02 – CONTROL PANEL PARTS

Written by

in

RF378LXPB2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Stainless)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
3Panel, Backguard (Black)
4WP9757030 Whirlpool Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP8522566 Whirlpool Knob
7WP8522565 Whirlpool Knob
7Knob, Control (4) (Biscuit)
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12WP6610457 Whirlpool Electronic Control Board + Core
12WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
12Control, Range (Biscuit)
13SCREW
15Switch, Rocker (Biscuit)
153149360 Whirlpool Light Switch
15WP4314961 Whirlpool Lite Switch
16WP3400882 Whirlpool Screw
17WP8273564 Whirlpool Clip
18Switch, Rocker (Black)
18Switch, Rocker (Biscuit)
18Switch, Accusimmer (White)
