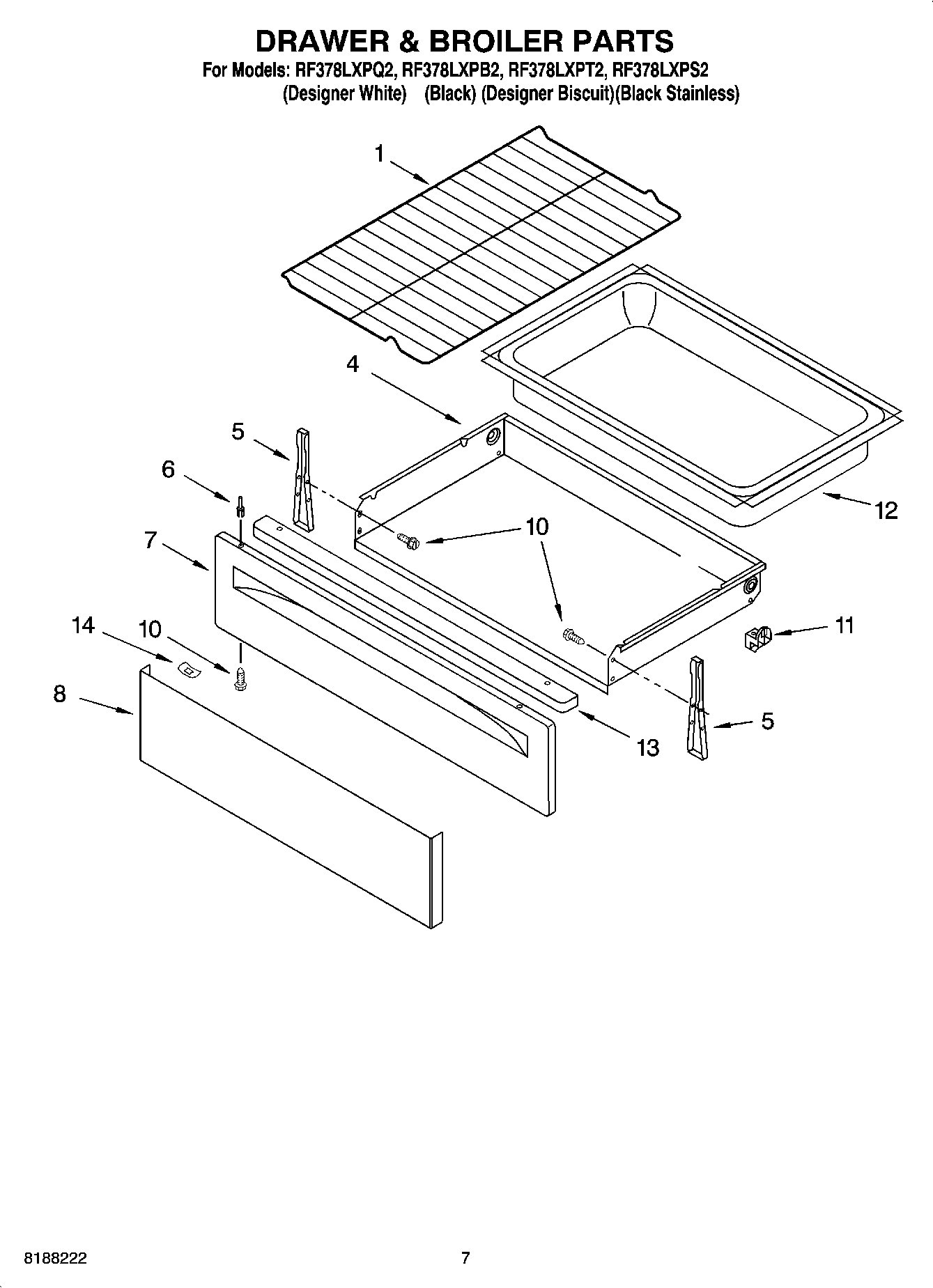

RF378LXPB2 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI161719A
	Grease
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP3196154 Whirlpool Screw Assembly
	WPL 8524132
	WPL 9761453
	WPL ARI161718A
	WPL ARI161717A
	WPL ARI161716A
	WPL ARI161715A
	WPL ARI161714A
	WPL ARI161713A
	WPL ARI161712A
	WPL 9761454
	WPL 9759003
	WPL 9758180
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	511873 Whirlpool Refrigerator Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	FOIL, ALUMINUM OVEN (18“ X 25 )
	799344 Whirlpool Refrigerator Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	WPW10208653 Whirlpool Insulation
	814381 Whirlpool Pin
	W11447673 Whirlpool Range Tip Anchor
	72017 Whirlpool Appliance Touch-Up Paint White
	Clip, Ground Wire
	3184020 Whirlpool Oven Wire
1	WPW10256908 Whirlpool Oven Range Rack
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196813 Whirlpool Rivet
6	WP3196814 Whirlpool Rivet
6	3196815 Whirlpool Oven Rivet
7	W11230476 Whirlpool Drawer Panel
7	W11230488 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
8	Panel, Stainless
10	WP3400832 Whirlpool Screw
11	WP8053334 Whirlpool Drawer Glide
12	Liner, Drawer
13	Handle
14	WP9781235 Whirlpool Clip
