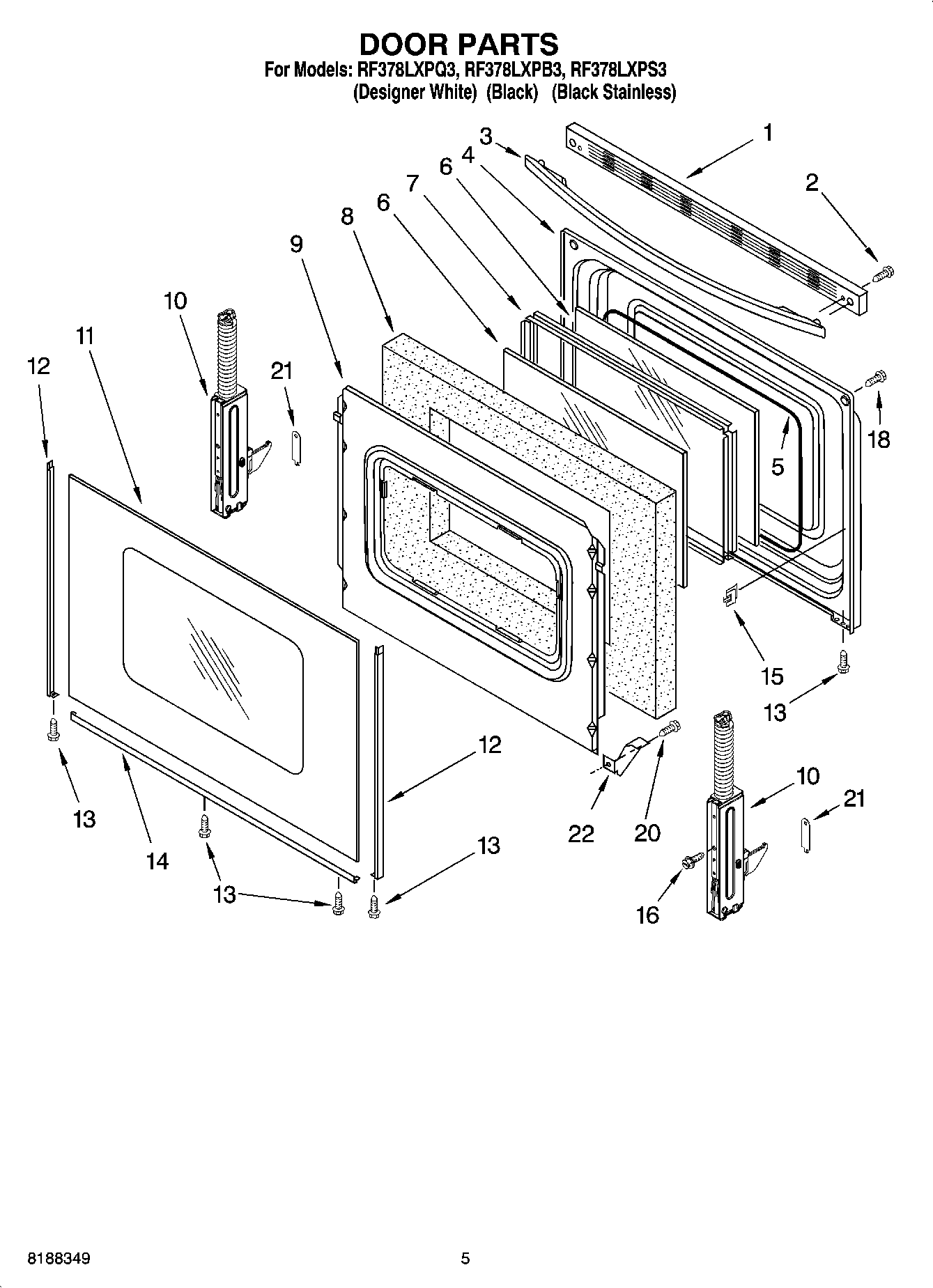

RF378LXPB3 04 – DOOR PARTS

RF378LXPB3 04 – DOOR PARTS

Written by

in

RF378LXPB3 04 – DOOR PARTS

Products

PositionProduct
1Trim, Top (Black)
1Trim, Top (Black and S.Steel Models)
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3WPW10202216 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
10W10347464 Whirlpool Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10118455 Whirlpool Door Glass Assembly
11Glass, Outer (Stainless Steel)
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
14WP8523180 Whirlpool Door Trim Assembly
15Clip, Glass (4)
16WPW10031790 Whirlpool Screw
18W10777162 Whirlpool Screw
20WP3196175 Whirlpool Screw
219761517 Whirlpool Oven Clip Assembly
22WP3196794 Whirlpool Glass Bracket
