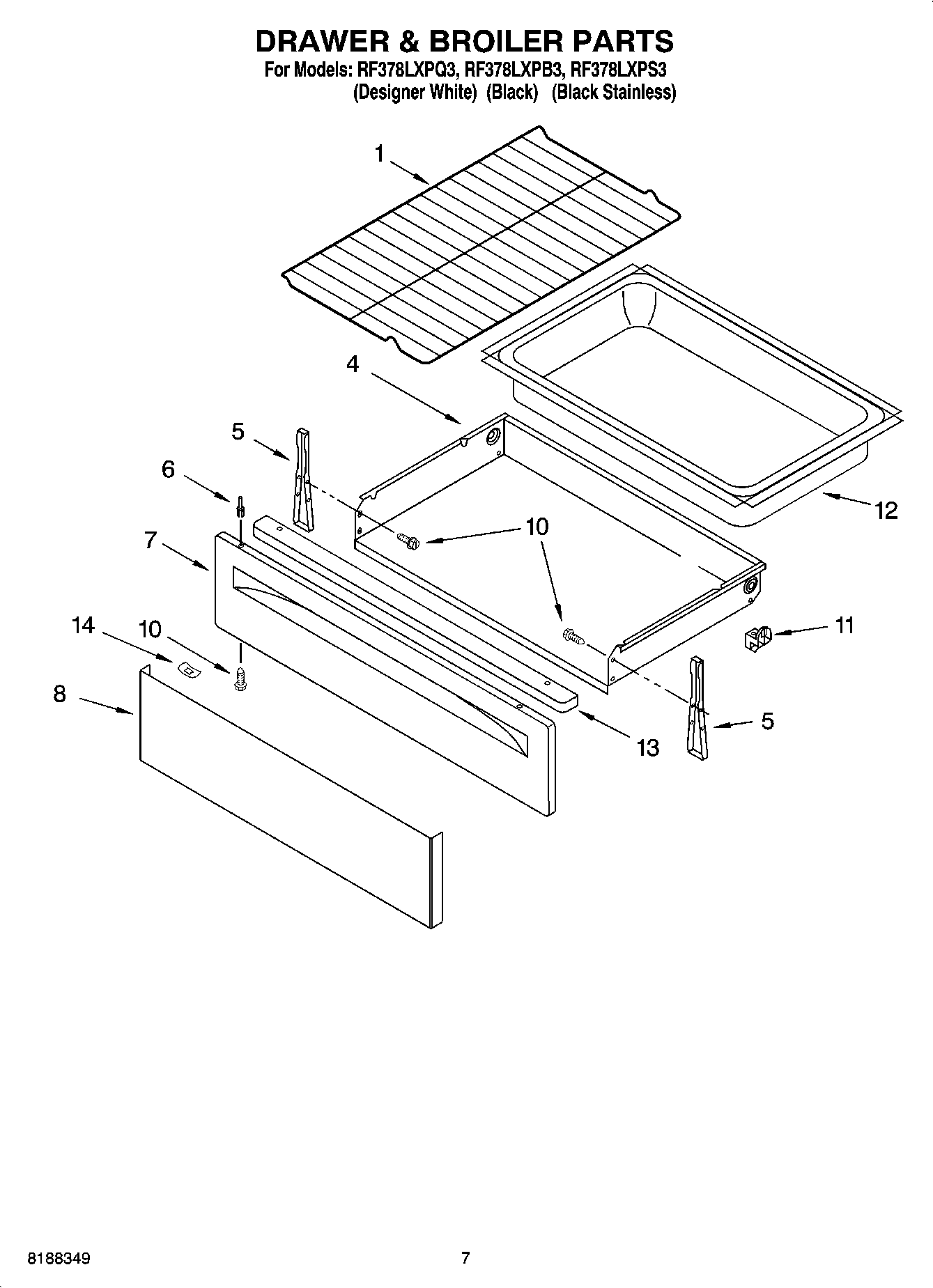

RF378LXPB3 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI161729A
	WP3196154 Whirlpool Screw Assembly
	Grease
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WPL 8524132
	WPL 9761453
	WPL ARI161728A
	WPL ARI161727A
	WPL ARI161726A
	WPL ARI161725A
	WPL ARI161724A
	WPL ARI161723A
	WPL ARI161722A
	WPL 9761454
	WPL 9759003
	WPL 9758180
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	799344 Whirlpool Refrigerator Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	Clip, Ground Wire
	3184020 Whirlpool Oven Wire
	WPL 799832
	72017 Whirlpool Appliance Touch-Up Paint White
	W11447673 Whirlpool Range Tip Anchor
	814381 Whirlpool Pin
1	WPW10256908 Whirlpool Oven Range Rack
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196813 Whirlpool Rivet
6	WP3196814 Whirlpool Rivet
7	W11230488 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
8	Panel, Stainless
10	WP3400832 Whirlpool Screw
11	WP8053334 Whirlpool Drawer Glide
12	Liner, Drawer
13	Handle
14	WP9781235 Whirlpool Clip
