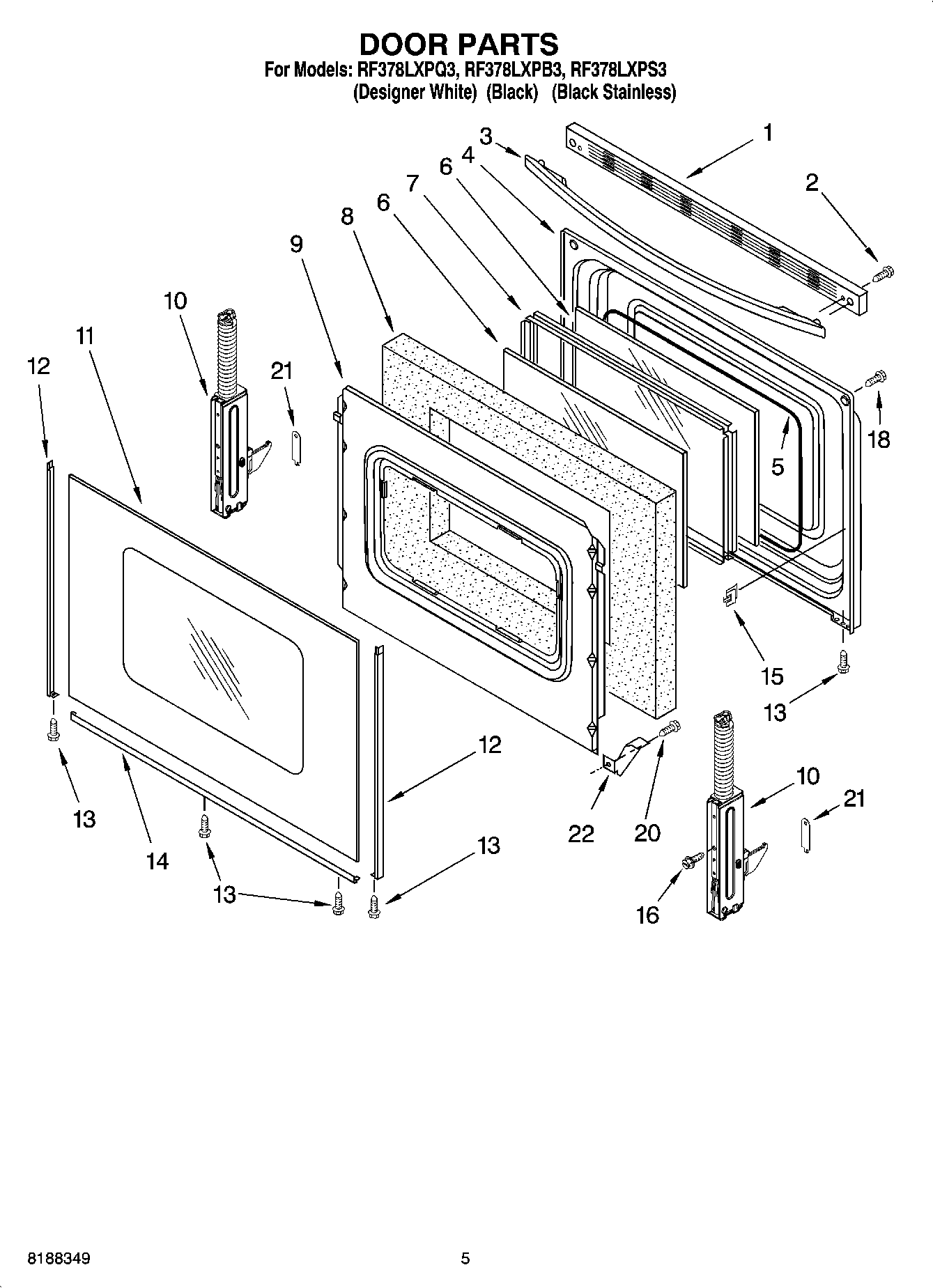

RF378LXPQ3 04 – DOOR PARTS

Products

Position	Product
1	Trim, Top (Black)
1	Trim, Top (Black and S.Steel Models)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	W10347466 Whirlpool Door Hinge
10	W10347464 Whirlpool Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	WPW10118455 Whirlpool Door Glass Assembly
11	Glass, Outer (Stainless Steel)
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523172 Whirlpool Left Door Trim
12	WP8523166 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523177 Whirlpool Door Trim Assembly
14	WP8523180 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
16	WPW10031790 Whirlpool Screw
18	W10777162 Whirlpool Screw
20	WP3196175 Whirlpool Screw
21	9761517 Whirlpool Oven Clip Assembly
22	WP3196794 Whirlpool Glass Bracket
