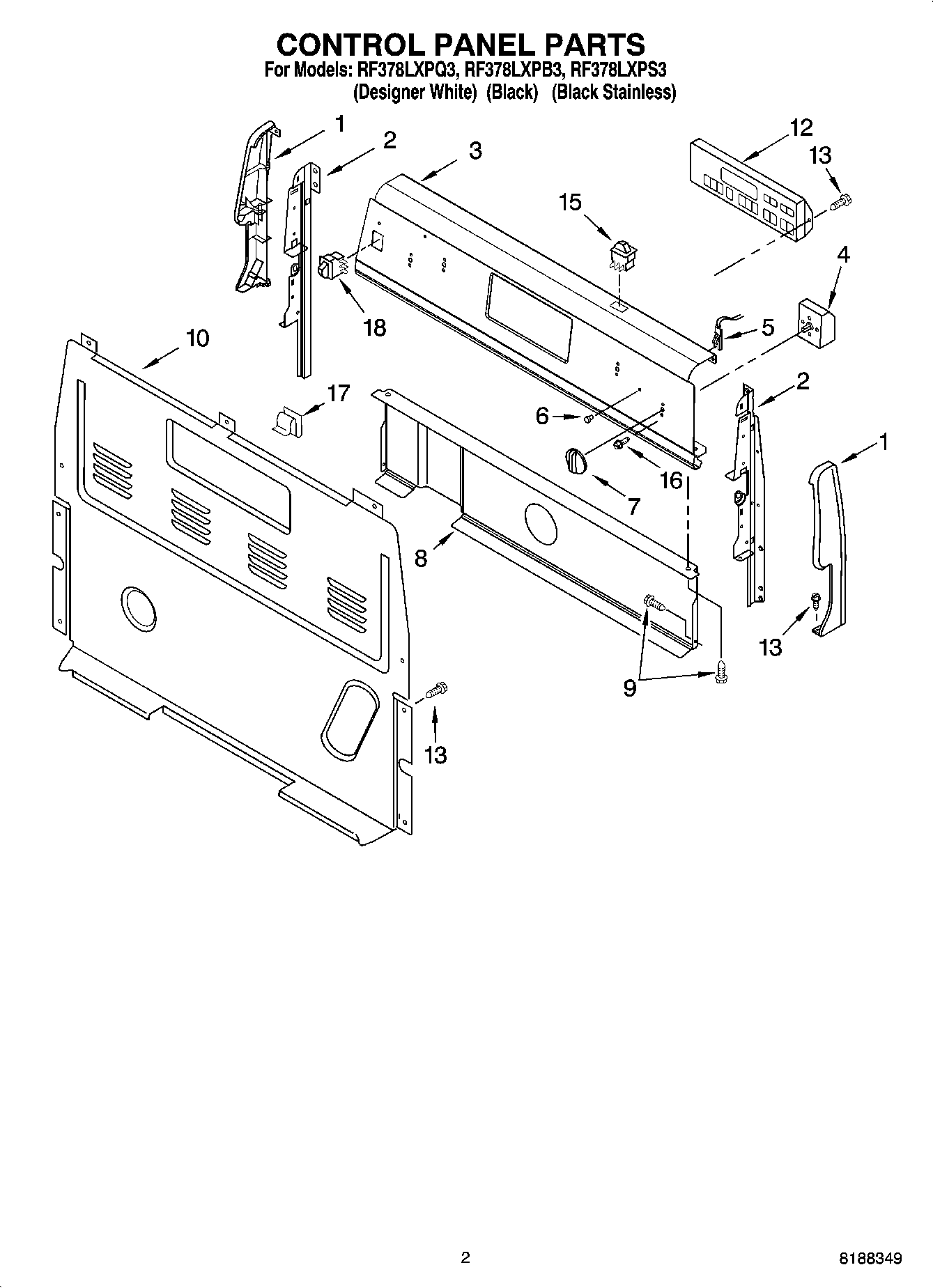

RF378LXPS3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap, Right Hand (Black)
1	Endcap (Black Left Hand)
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard (Black)
3	Panel, Backguard (Stainless)
3	Panel, Backguard (White)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP9757030 Whirlpool Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP8522565 Whirlpool Knob
7	WP8522566 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
12	WP6610457 Whirlpool Electronic Control Board + Core
12	WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
13	SCREW
15	3149360 Whirlpool Light Switch
15	WP4314961 Whirlpool Lite Switch
16	WP3400882 Whirlpool Screw
17	WP8273564 Whirlpool Clip
18	Switch, Rocker (Black)
18	Switch, Accusimmer (White)
