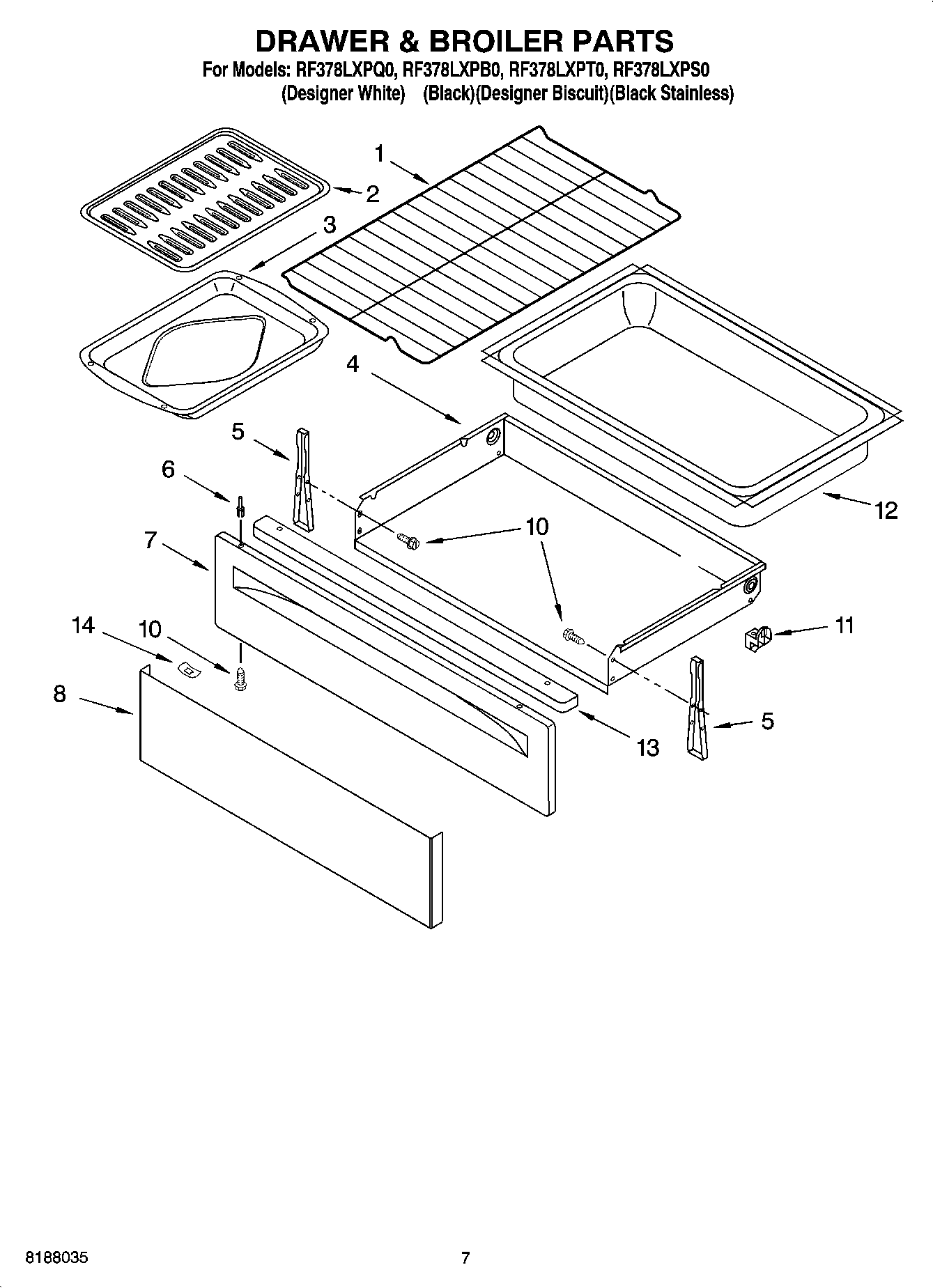

RF378LXPT0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

RF378LXPT0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

RF378LXPT0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI161798A
WP3196154 Whirlpool Screw Assembly
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
WPL 8524132
WPL 9759774
WPL ARI161797A
WPL ARI161796A
WPL ARI161795A
WPL ARI161794A
WPL ARI161793A
WPL ARI161792A
WPL 9759003
WPL 9757584
WPL 8523718
WPL ARI161799A
WPL 9759775
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPW10208653 Whirlpool Insulation
799344 Whirlpool Refrigerator Paint
WPL 799832
242831 Whirlpool Oven Wire
350930 Whirlpool White Spray Paint
Clip, Ground Wire
72017 Whirlpool Appliance Touch-Up Paint White
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
63196815 Whirlpool Oven Rivet
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
7W11230476 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
7W11219377 Whirlpool Drawer Panel
8Panel, Stainless
10WP3400832 Whirlpool Screw
11WP8053334 Whirlpool Drawer Glide
12Liner, Drawer
13Handle
14WP9781235 Whirlpool Clip
