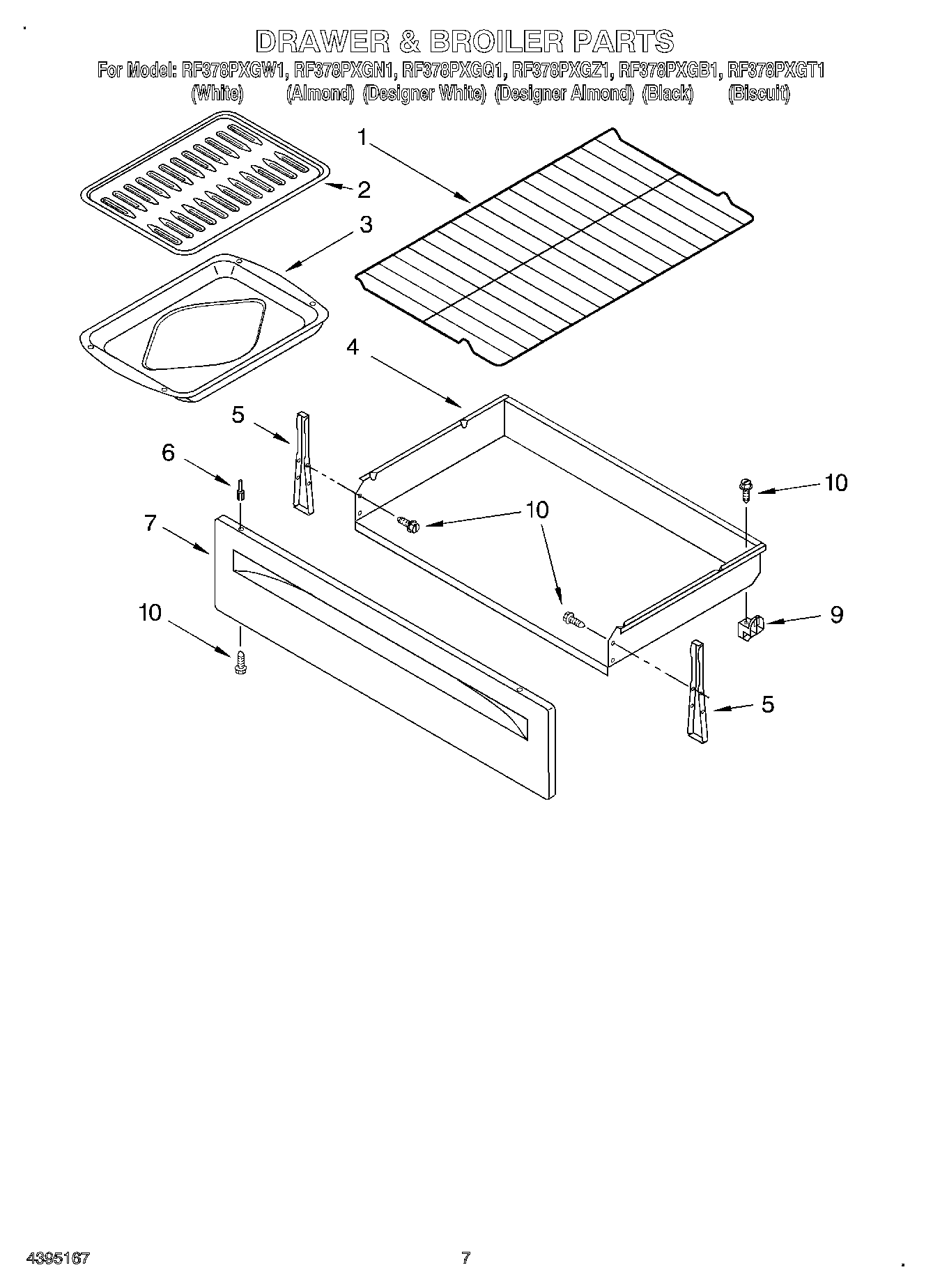

RF378PXGB1 05 – DRAWER & BROILER, OPTIONAL
Written by
in
RF378PXGB1 05 – DRAWER & BROILER, OPTIONAL
Products
Position
Product
1
WPW10256908 Whirlpool Oven Range Rack
2
WP3195996 Whirlpool Pan Grid
3
WP3196076 Whirlpool Broil Pan
4
Drawer, Storage
5
W10838990 Whirlpool Mounting Bracket
6
WP3196814 Whirlpool Rivet
6
WP3196813 Whirlpool Rivet
6
3196815 Whirlpool Oven Rivet
7
W11219377 Whirlpool Drawer Panel
7
Panel, Drawer Front (Almond)
7
W11230488 Whirlpool Drawer Panel
7
W11230476 Whirlpool Drawer Panel
9
WP8053334 Whirlpool Drawer Glide
10
WPL 8273304
10
Wire (12 Ga. 150 c Black)
10
Wire (14 Ga. 150 c Yellow)
10
Wire (14 Ga. 150 c Orange)
10
18 Ga. 80~c Rating (Red)
10
Wire (14 Ga. 200 c Brown)
10
1
10
WPL 8273305
10
WPL 8272999
10
WPL 8273266
10
WP3196154 Whirlpool Screw Assembly
10
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
10
Grease
10
3196696 Whirlpool Clip
10
3184020 Whirlpool Oven Wire
10
8212471 Whirlpool Oven Paint
10
W11244557 Whirlpool Screw
10
WP3400832 Whirlpool Screw
10
Wire (14 Ga. 150 c Green)
10
Wire (14 Ga. 150 c Brown)
10
Wire (14 Ga. 150 c Blue)
10
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
10
511873 Whirlpool Refrigerator Paint
10
4392901 Whirlpool Biscuit Spray Paint
10
4392899 Whirlpool Biscuit Touch-Up Paint
10
350942 Whirlpool Spray Paint
10
Almond (Uncut)
10
WP72107 Whirlpool Touchup
10
799344 Whirlpool Refrigerator Paint
10
72017 Whirlpool Appliance Touch-Up Paint White
10
350956 Whirlpool Spray Assembly
10
WPL 799832
10
WPW10208653 Whirlpool Insulation
10
242831 Whirlpool Oven Wire
10
Clip, Ground Wire
10
3400964 Whirlpool Oven Clip
10
814381 Whirlpool Pin
10
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
10
285006 Whirlpool Spray
10
Wire, 25“ Roll (White 14 GA.)
10
Wire, 25` Roll (Red 14 Ga.)
10
Wire, 25` Roll (Black 14 Ga.)
10
FOIL, ALUMINUM OVEN (18“ X 25 )
10
350930 Whirlpool White Spray Paint
←
