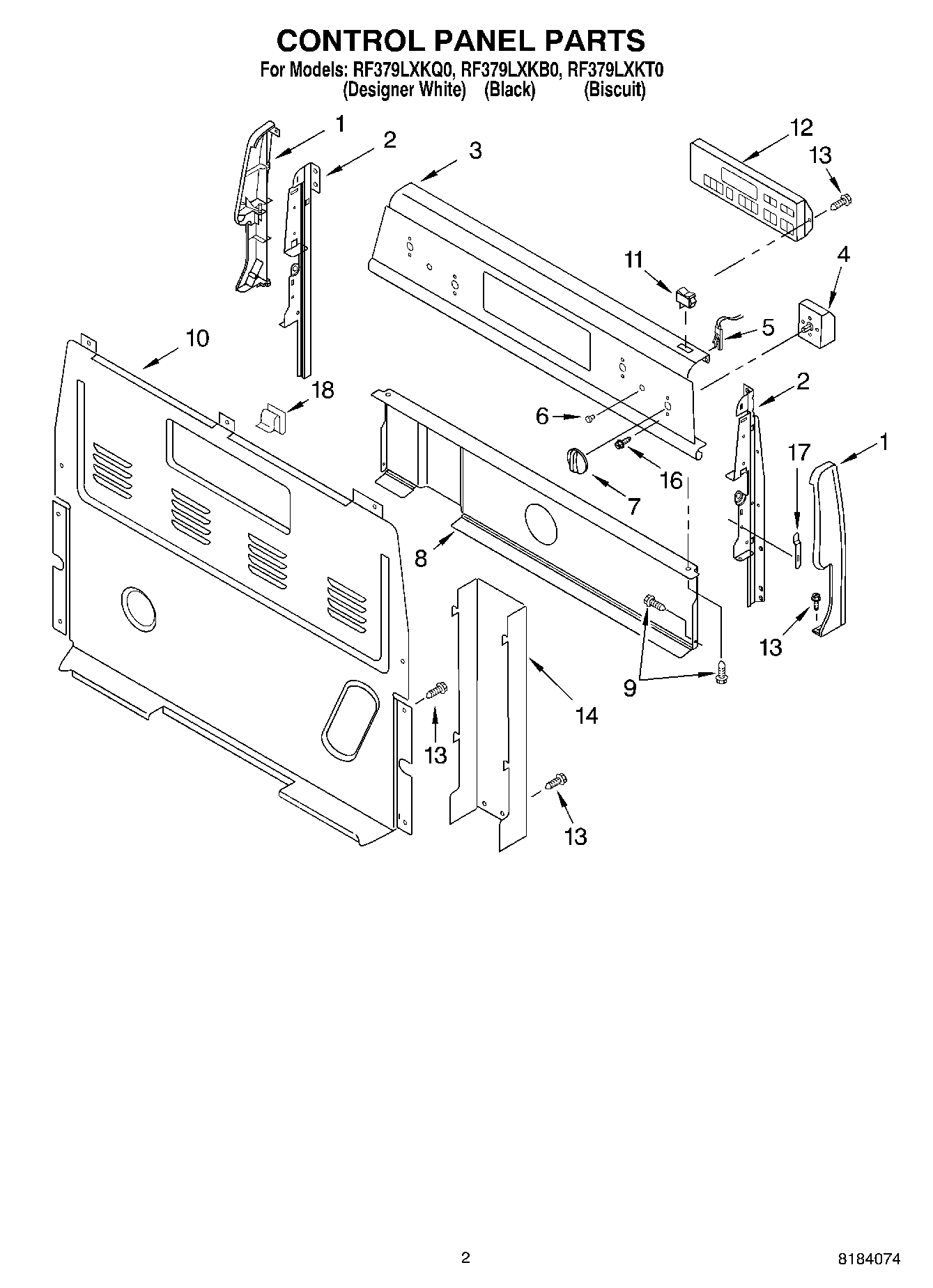

RF379LXKB0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap (Black Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard
3Panel, Backguard
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7WP8522565 Whirlpool Knob
7Knob, Control (4) (Biscuit)
7WP8522566 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Switch, Rocker (Almond)
113149360 Whirlpool Light Switch
11WP4314961 Whirlpool Lite Switch
11Switch, Rocker (Biscuit)
12Control, Range (White)
12Control, Range (Black)
12Control, Range (Biscuit)
13SCREW
14WPW10326122 Whirlpool Black Cover
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18WP8273564 Whirlpool Clip
