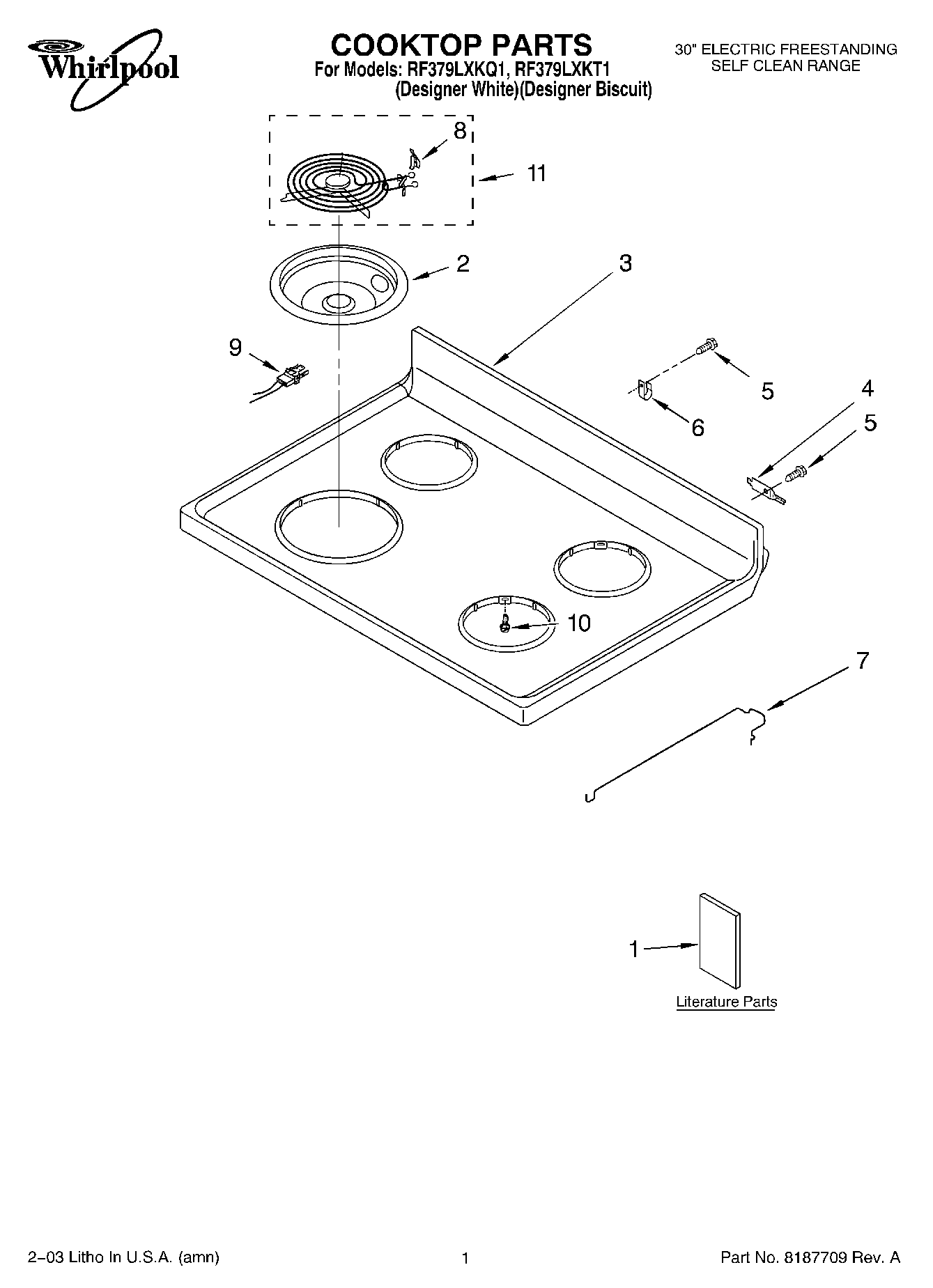

RF379LXKQ1 01 – COOKTOP PARTS

RF379LXKQ1 01 – COOKTOP PARTS

Written by

in

RF379LXKQ1 01 – COOKTOP PARTS

Products

PositionProduct
1Safer Cooking Tips
1Guide, Use & Care
1Literature Parts (Tech Sheet)
1Literature (Instruction, Installation)
1Literature Parts (English/Spanish)
2W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
28522882 Whirlpool Oven 6" Drip Pan
28522881 Whirlpool Oven 8" Drip Pan
38195532 Whirlpool Cooktop Power Switch
3Cooktop (Biscuit)
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8WP3195917 Whirlpool Clip Assembly
9814399 Whirlpool Receptacle Kit
10WP3196154 Whirlpool Screw Assembly
11WPW10259865 Whirlpool Range 8" Surface Element
11WP660532 Whirlpool Oven Surface Element
