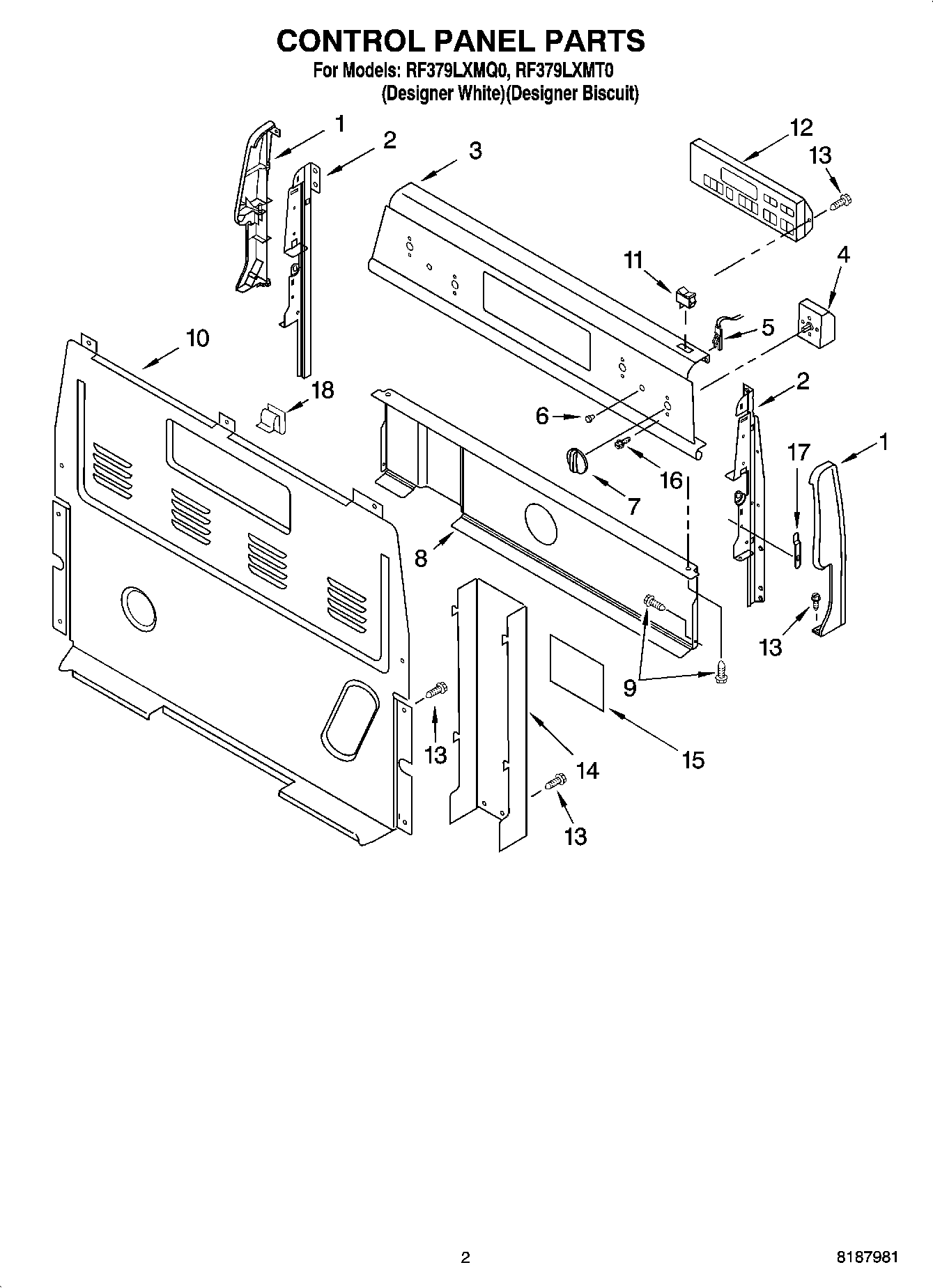

RF379LXMT0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob, Control (4) (Biscuit)
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
113149360 Whirlpool Light Switch
11Switch, Rocker (Biscuit)
12Control, Range (Biscuit)
12WP6610457 Whirlpool Electronic Control Board + Core
13SCREW
14WPW10326122 Whirlpool Black Cover
15Card, Insulation
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18WP8273564 Whirlpool Clip
