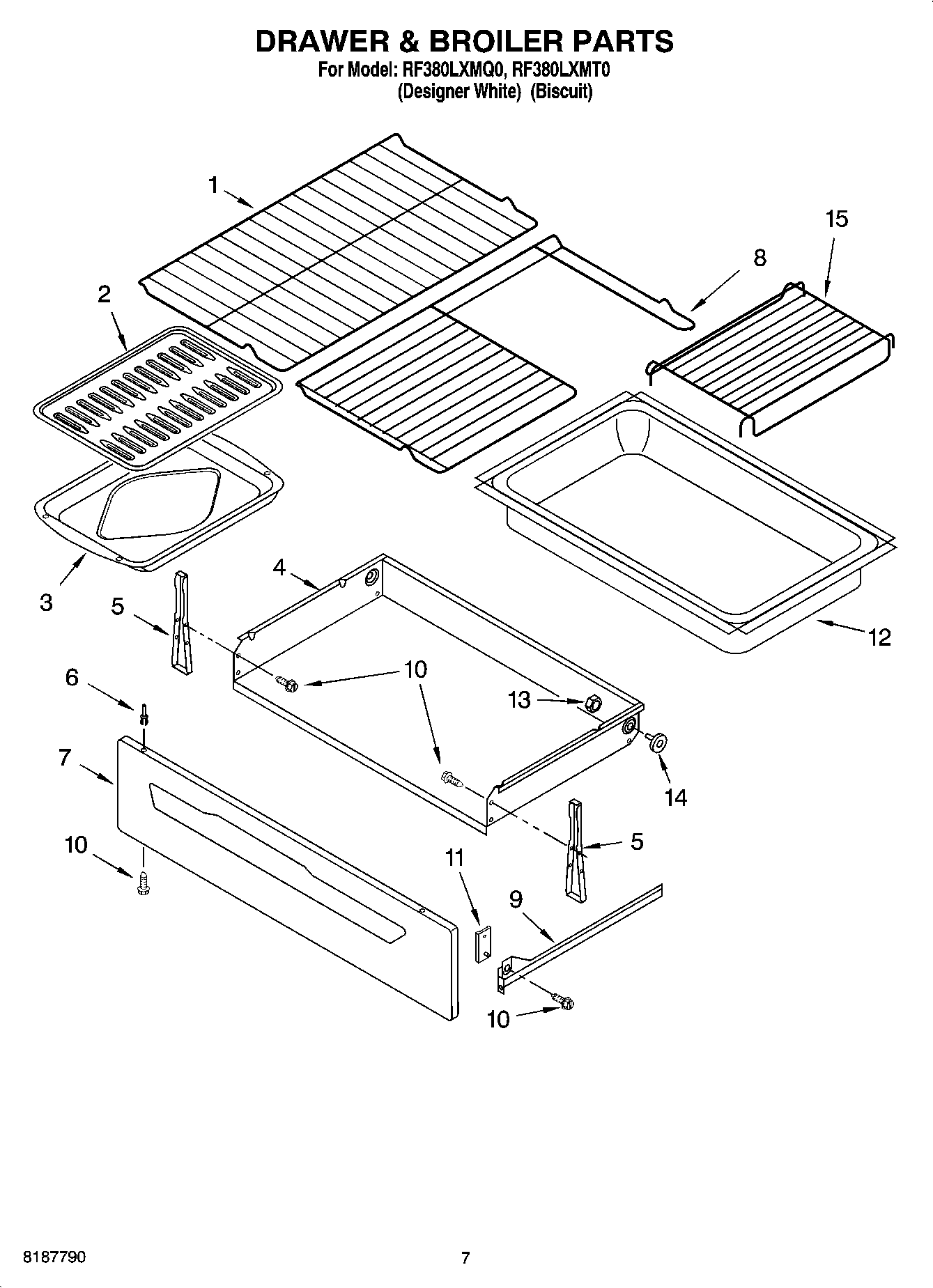

RF380LXMQ0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

RF380LXMQ0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

RF380LXMQ0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI161824A
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WP3196154 Whirlpool Screw Assembly
WPL 8316781
WPL ARI161823A
WPL ARI161822A
WPL ARI161821A
WPL ARI161820A
WPL ARI161819A
WPL ARI161818A
WPL 9756191
WPL 8524112
WPL 8523718
WPL 4454241
WPL 8524070
WPL ARI161825A
WPL 8524132
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
3184020 Whirlpool Oven Wire
Clip, Ground Wire
3400964 Whirlpool Oven Clip
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196814 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
7W11230476 Whirlpool Drawer Panel
7W11219377 Whirlpool Drawer Panel
8WP8274021 Whirlpool Oven Rack
9Rail, Drawer (Left Hand)
9Rail, Drawer (Right Hand)
10WP3400832 Whirlpool Screw
11Spacer, Glide
12Liner, Drawer
13WP487939 Whirlpool Refrigerator Nut
14814229 Whirlpool Primary Roller
15WP8274022 Whirlpool Oven Rack
