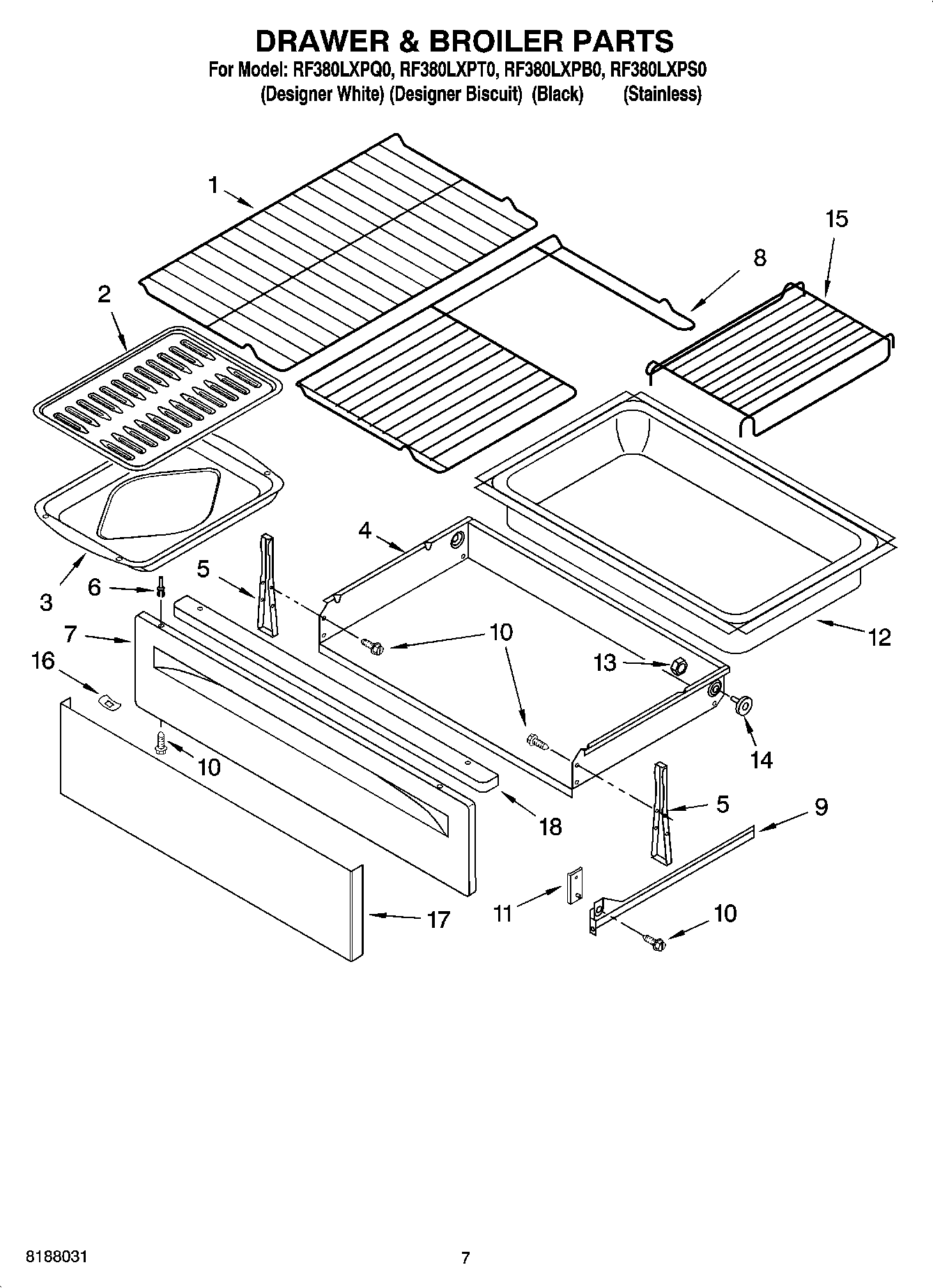

RF380LXPQ0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

RF380LXPQ0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Written by

in

RF380LXPQ0 05 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI161874A
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP3196154 Whirlpool Screw Assembly
WPL 8316781
WPL 8524132
WPL ARI161873A
WPL ARI161872A
WPL ARI161871A
WPL ARI161870A
WPL ARI161869A
WPL ARI161868A
WPL 9759003
WPL 9757584
WPL 8523718
WPL ARI161875A
WPL 9759775
WPL 9759774
242831 Whirlpool Oven Wire
3400964 Whirlpool Oven Clip
Wire, 25` Roll (Red 14 Ga.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
285006 Whirlpool Spray
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
Grease
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
Clip, Ground Wire
4392899 Whirlpool Biscuit Touch-Up Paint
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
7W11230488 Whirlpool Drawer Panel
7W11230476 Whirlpool Drawer Panel
7W11219377 Whirlpool Drawer Panel
8WP8274021 Whirlpool Oven Rack
9Rail, Drawer (Left Hand)
9Rail, Drawer (Right Hand)
10WP3400832 Whirlpool Screw
11Spacer, Glide
12Liner, Drawer
13WP487939 Whirlpool Refrigerator Nut
14814229 Whirlpool Primary Roller
15WP8274022 Whirlpool Oven Rack
16WP9781235 Whirlpool Clip
17Panel, Stainless
18Handle
