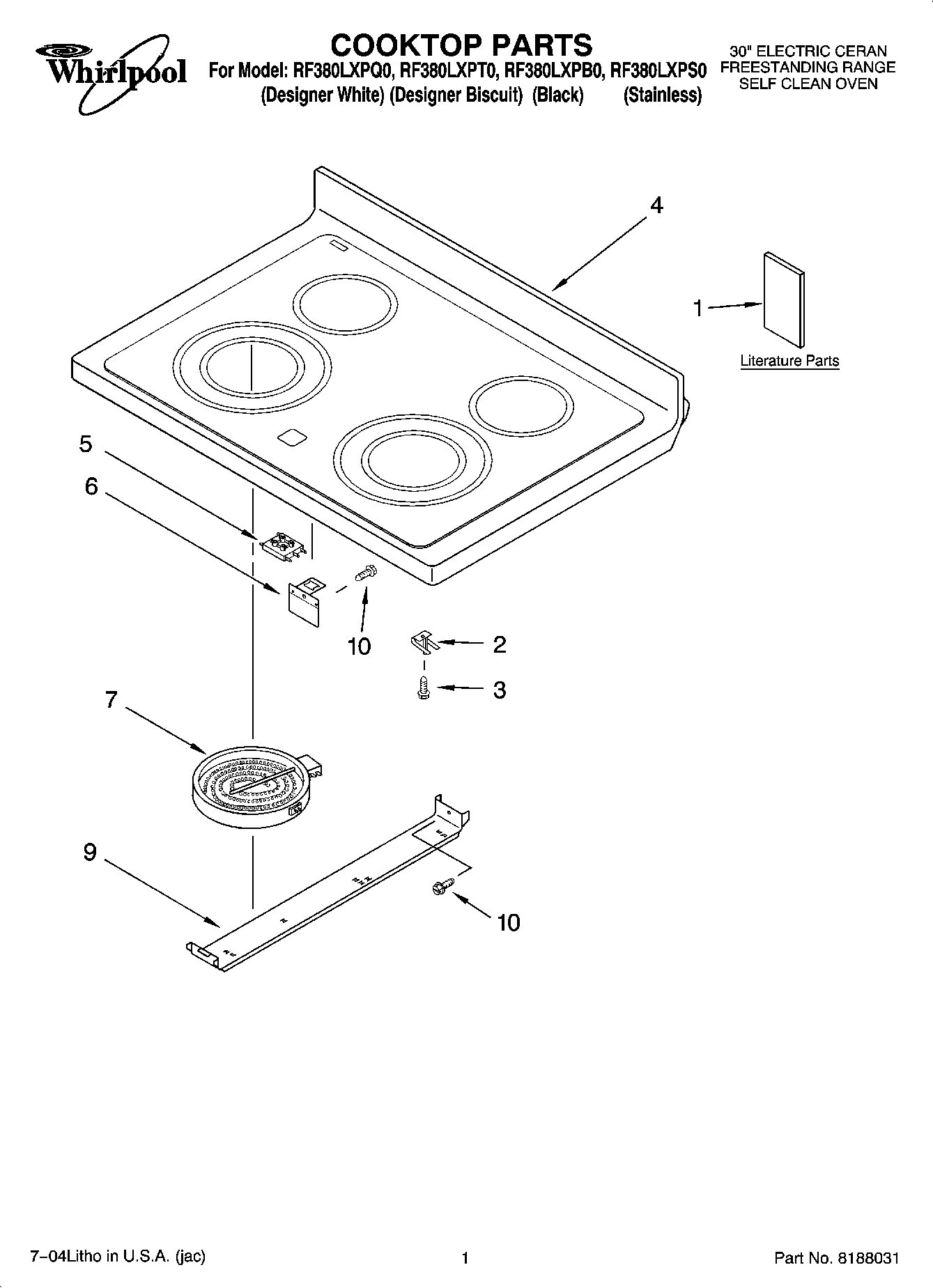

RF380LXPS0 01 – COOKTOP PARTS

RF380LXPS0 01 – COOKTOP PARTS

Written by

in

RF380LXPS0 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips
1English/French
1Installation Instructions Anti-Tip Template
1Guide, Use & Care
1Tech Sheet
1English/Spanish
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (White)
4Cooktop (Biscuit)
4Cooktop (Black)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823711 Whirlpool Surface Element Left Front and Right Rear
7W10823692 Whirlpool Dual Radiant Element
9Bracket, Element ((2))
10WP3196557 Whirlpool Screw
