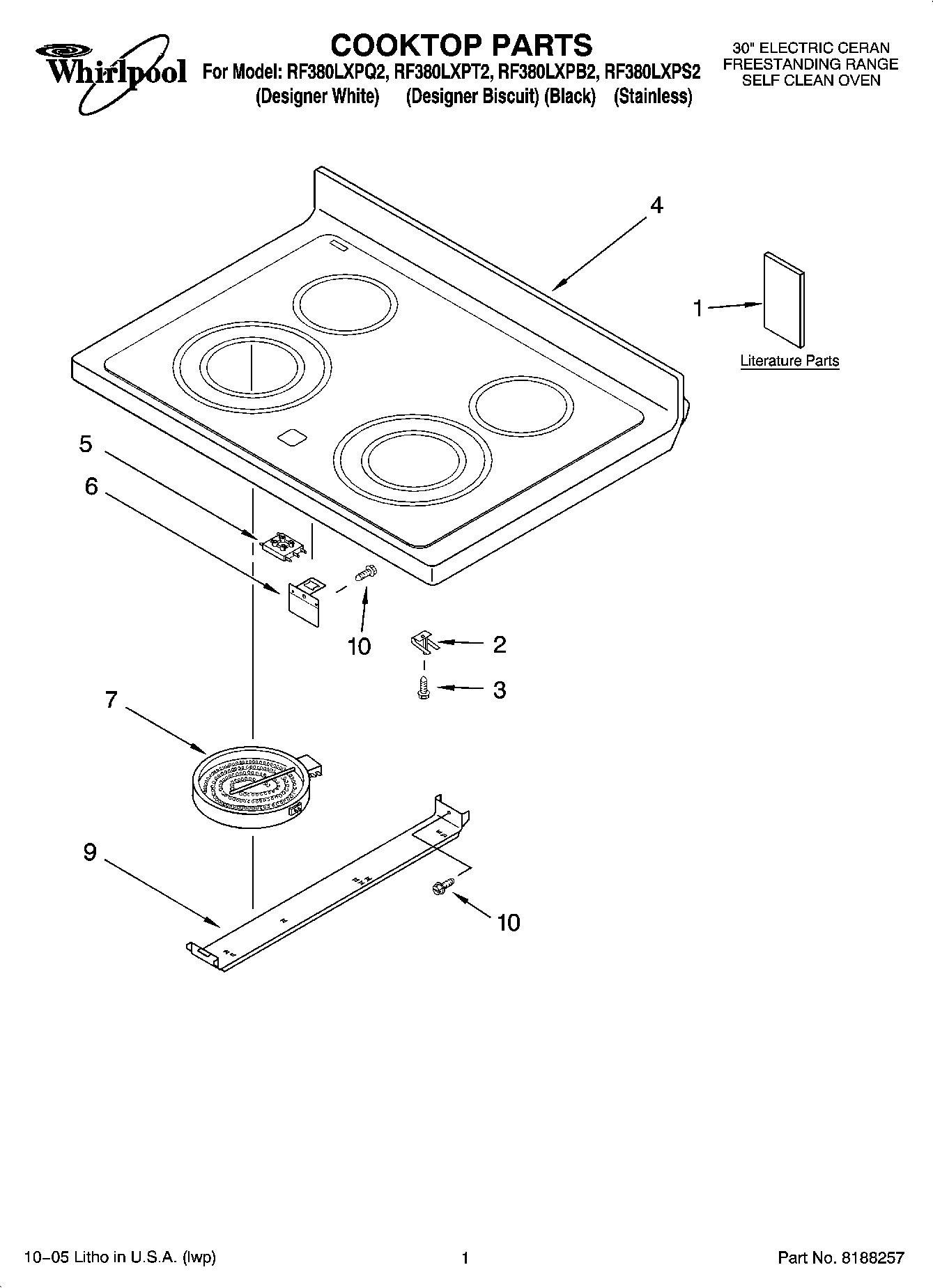

RF380LXPS2 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions Anti-Tip Template
1Tech Sheet
1Use & Care Guide
1Safe Cooking Tips
1Anti-Tip Template (English/French)
1Anti-Tip Template (English/Spanish)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Biscuit)
4Cooktop (White)
4Cooktop (Black)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823711 Whirlpool Surface Element Left Front and Right Rear
7W10823692 Whirlpool Dual Radiant Element
9Bracket, Element ((2))
10WP3196557 Whirlpool Screw
