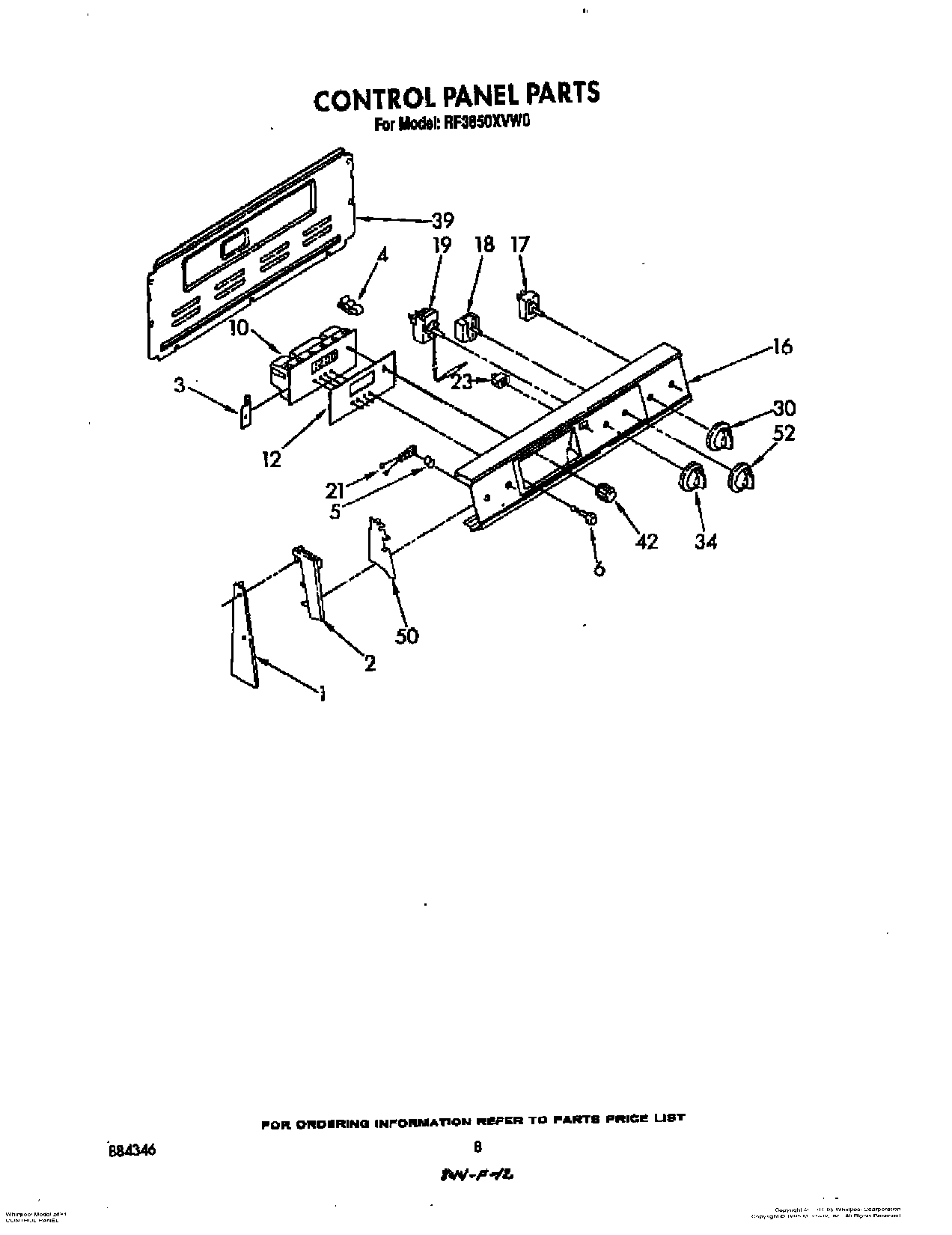

RF3850XVN0 05 – CONTROL PANEL

Products

Position	Product
1	Washer
1	Washer
1	End Trim L.H.
2	Screw,
2	End Cap R.H.
2	End Cap L.H.
3	Bracket, Timer (2)
4	98005642 Whirlpool Clip
5	Lens, Amber
6	Sleeve-Igniter Wire (Lt. or Rt.)
10	Timer
12	Glass, Timer
16	Control, Panel
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP3148952 Whirlpool Oven Infinite Switch
18	Switch, Selector (5 Position)
18	WP486579 Whirlpool Air Conditioner Screw
18	Adapter, Terminal
19	WP313808 Whirlpool Screw
19	Thermostat, Oven
21	Light, Indicator (250V)
21	Light, Indicator (Surface Unit (2))
21	Indicator Light (1)
23	WP4314961 Whirlpool Lite Switch
30	Knob, Control (4)
34	Knob, Control (2)
39	Harness-Conduit Asm.
39	SCREW
42	Knob, Bit Generator (Black)
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	KNOB, CONTROL
52	WP688805 Whirlpool Spring Clip
