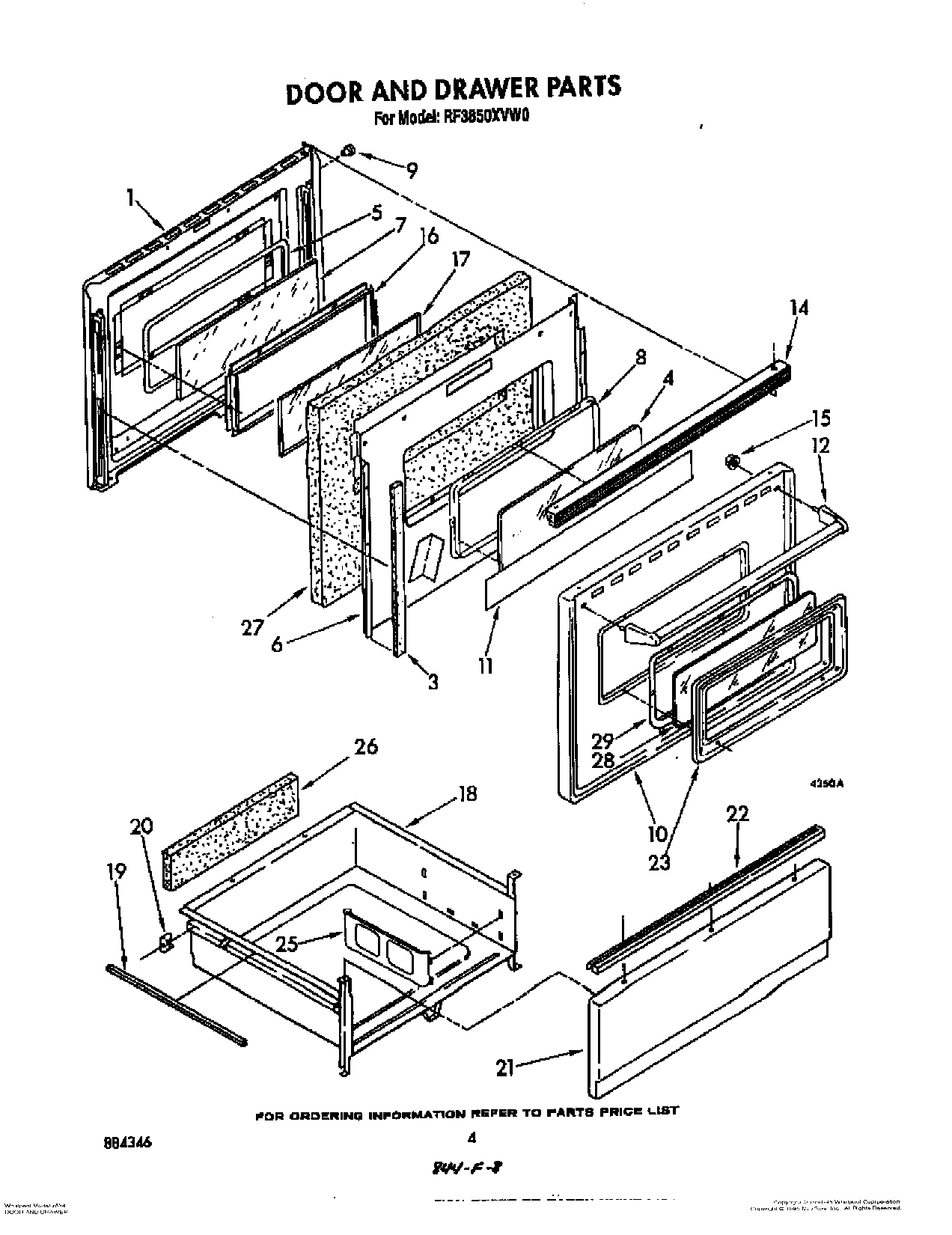

RF3850XVW0 03 – DOOR AND DRAWER

Products

Position	Product
1	Screw
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Panel, Door (Almond)
10	Panel, Door (White)
11	Panel, Door (Fastener (2))
11	Foil, Door
12	Handle, Black Oven Door
14	Top, Door
15	WP308499 Whirlpool Nut
16	Screw
16	Frame, Inner
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
20	Screw, 10A x 1/2 (2) (Black)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Hinge-Lt. or Rt.
23	Window, Frame
23	Clip, Frame
23	Screw
25	Rack, Literature
26	Pad, Sound
27	Insulation, Door
28	Glass, Outer
29	Retainer, Glass
