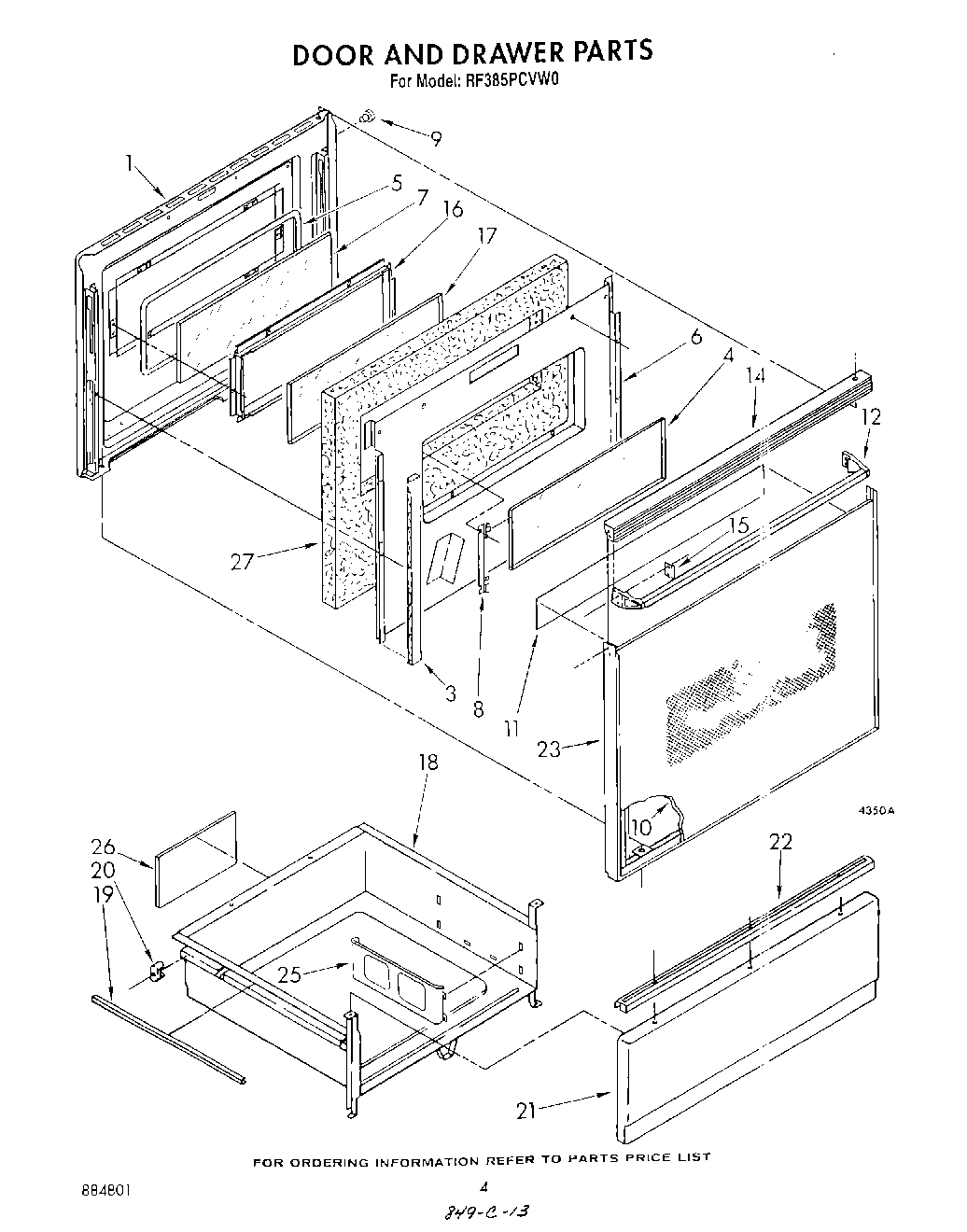

RF385PCVN0 03 – DOOR AND DRAWERadmin2025-04-26T12:47:06+00:00RF385PCVN0 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Screw |
| 1 | Liner, Door |
| 3 | Seal, Flange (2) |
| 4 | Glass, Reflective |
| 5 | Seal, Door |
| 6 | Retainer, |
| 7 | WP3169203 Whirlpool Door Glass |
| 8 | Retainer, Glass (2) |
| 9 | Bumper (4) |
| 10 | Glass, Panel (White) |
| 10 | Glass, Panel (Almond) |
| 11 | Foil, Door |
| 12 | WP355515 Whirlpool Screw |
| 12 | Handle, Door |
| 14 | Back Splash (Screw (4) 10AB x 1/2``) |
| 14 | Top, Door (Black Model) |
| 15 | Clip, Mtg (2) |
| 16 | Screw |
| 16 | Frame, Inner |
| 18 | Drawer, Utility |
| 19 | Protector, Drawer (2) |
| 20 | Screw, 10A x 1/2 (2) (Black) |
| 20 | Glide, Rear (2) |
| 21 | Panel Drawer (White) |
| 21 | Panel, Drawer (Almond) |
| 21 | WP488787 Whirlpool Refrigerator Screw |
| 22 | Handle, Drawer |
| 22 | WP488627 Whirlpool Refrigerator Screw |
| 23 | Frame, Door |
| 25 | Rack, Literature |
| 26 | Pad, Sound |
| 27 | Insulation, Door |
