RF385PCVN0 04 – OVEN , LIT/OPTIONAL

RF385PCVN0 04 – OVEN , LIT/OPTIONAL

Written by

in

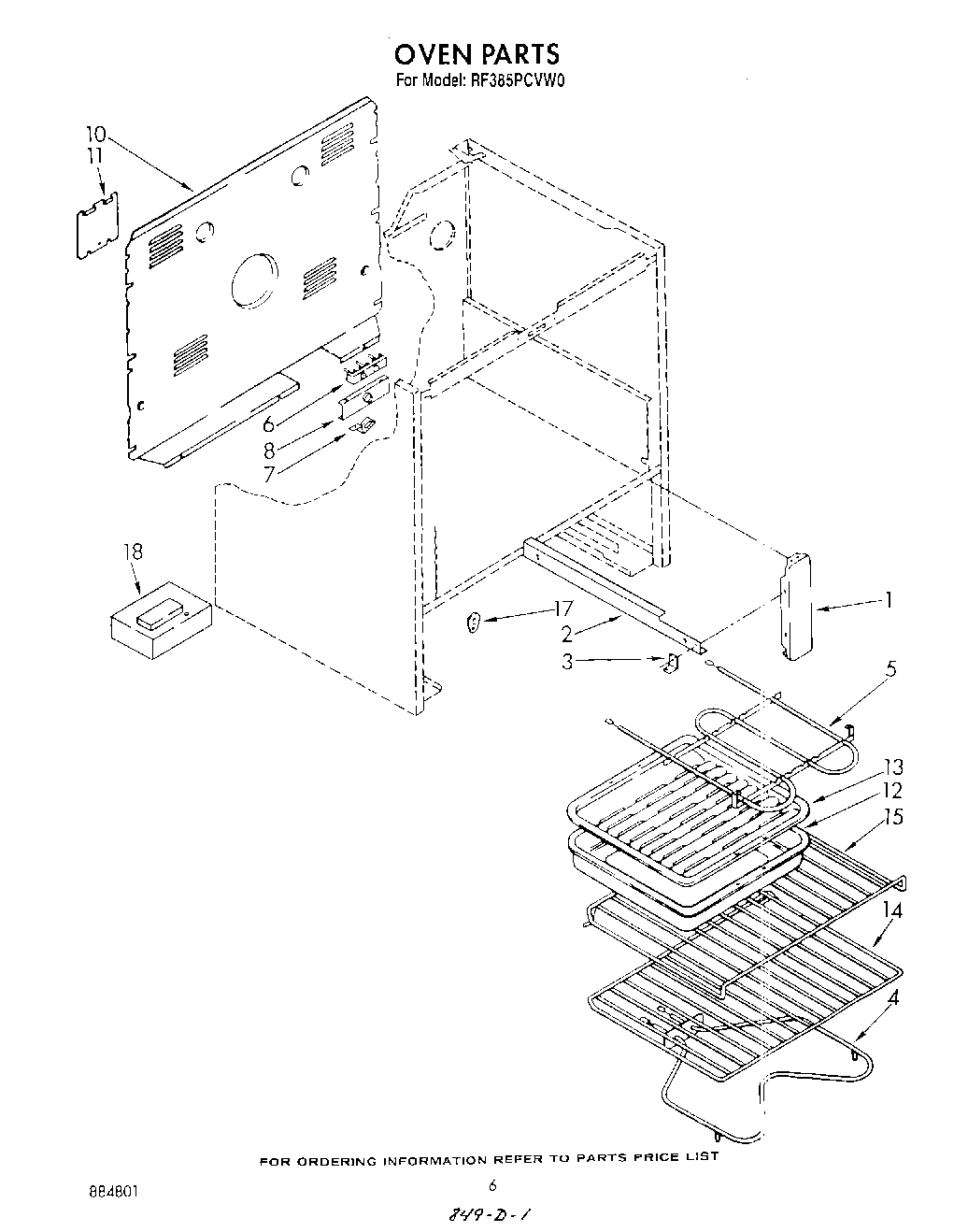

RF385PCVN0 04 – OVEN , LIT/OPTIONAL

Products

PositionProduct
511873 Whirlpool Refrigerator Paint
1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Rail L.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5Screw, 10-32 x 5/8 (4)
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6WP112432 Whirlpool Nut Assembly
6WP8203546 Whirlpool Terminal Block
6Screw, (2) 10-16 x 1
7Clip, Ground Wire
7WPL 308498
8Bracket, Service
10Cover, Rear
11SCREW
11Cover, Service
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
17Screw, 10A x 1/2 (2) (Black)
17WPL 311982
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Yellow)
18Wire (12 Ga. 150 c Black)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
18Block, Balance
18340184 Whirlpool Screw
18Grease
188212471 Whirlpool Oven Paint
18Leveler (Thinner) (2oz.)
18Enamel, New Avocado (1 Qt. Uncut)
18Enamel, Coffee (1 Qt. Uncut)
181
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
18Golden Harvest
18350930 Whirlpool White Spray Paint
1872113 Whirlpool Touch-Up Paint
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18Platinum (Uncut)
18WPL 72112
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
18285006 Whirlpool Spray
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18WPL 799832
18350942 Whirlpool Spray Paint
18350956 Whirlpool Spray Assembly
