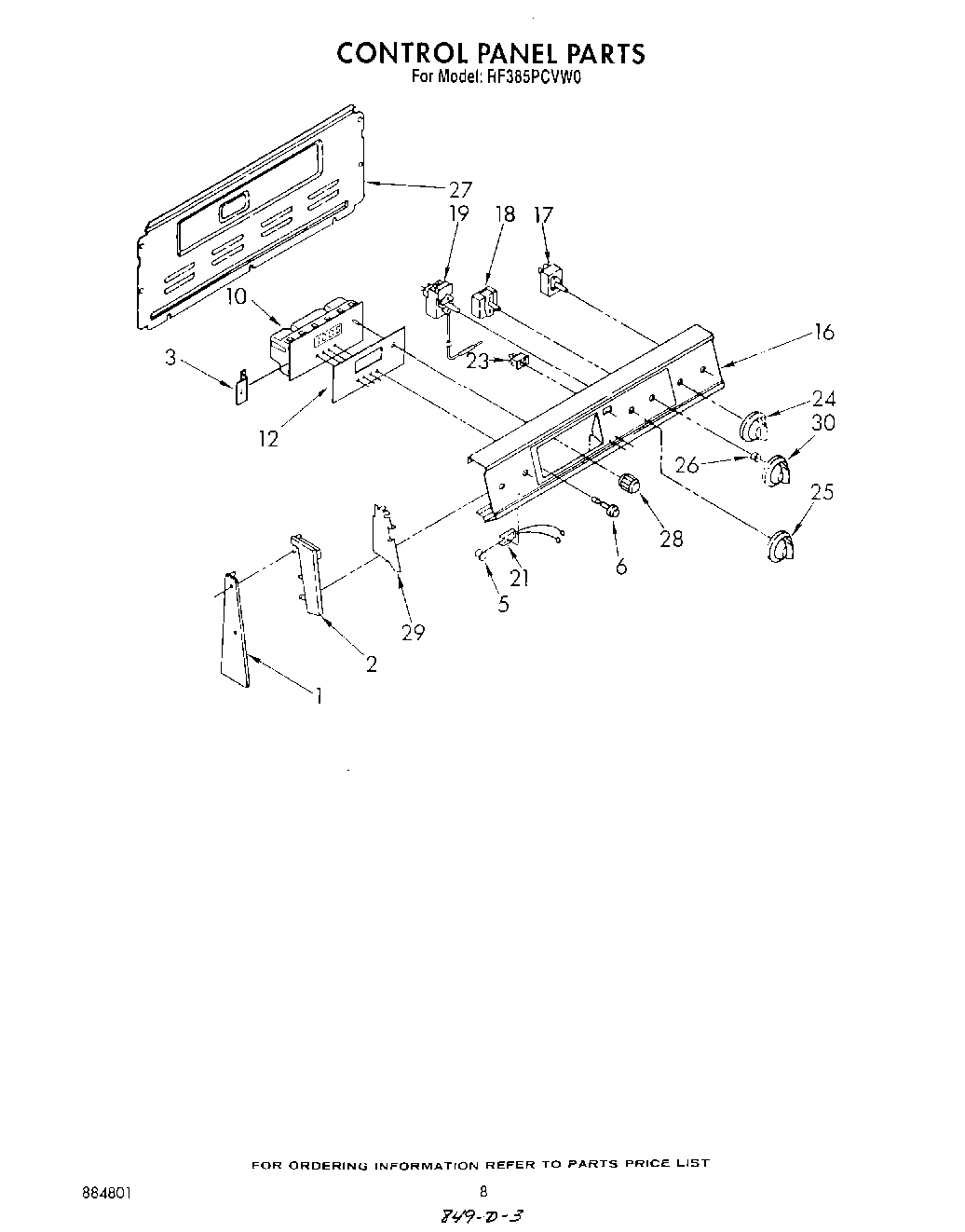

RF385PCVW0 05 – CONTROL PANEL

RF385PCVW0 05 – CONTROL PANEL

Written by

in

RF385PCVW0 05 – CONTROL PANEL

Products

PositionProduct
1Washer
1Washer
1End Trim L.H.
2End Cap R.H.
2End Cap L.H.
2Screw,
3Bracket, Timer (2)
5Lens, Amber
6Sleeve-Igniter Wire (Lt. or Rt.)
10Timer
12Glass, Timer
16Control, Panel
17WP3149400 Whirlpool Oven Infinite Switch
17WP3148952 Whirlpool Oven Infinite Switch
18Switch, Selector (5 Position)
18WP486579 Whirlpool Air Conditioner Screw
18Adapter, Terminal
19Thermostat, Oven
19WP313808 Whirlpool Screw
21Light, Indicator (250V)
21Light, Indicator (Surface Unit (2))
21Indicator Light (1)
23WP4314961 Whirlpool Lite Switch
24Knob, Control (4)
25Knob, Control (2)
26WP688805 Whirlpool Spring Clip
27Harness-Conduit Asm.
27SCREW
28Knob, Bit Generator (Black)
29WP965173 Whirlpool Dishwasher Screw
29Shield (2)
30KNOB, CONTROL
