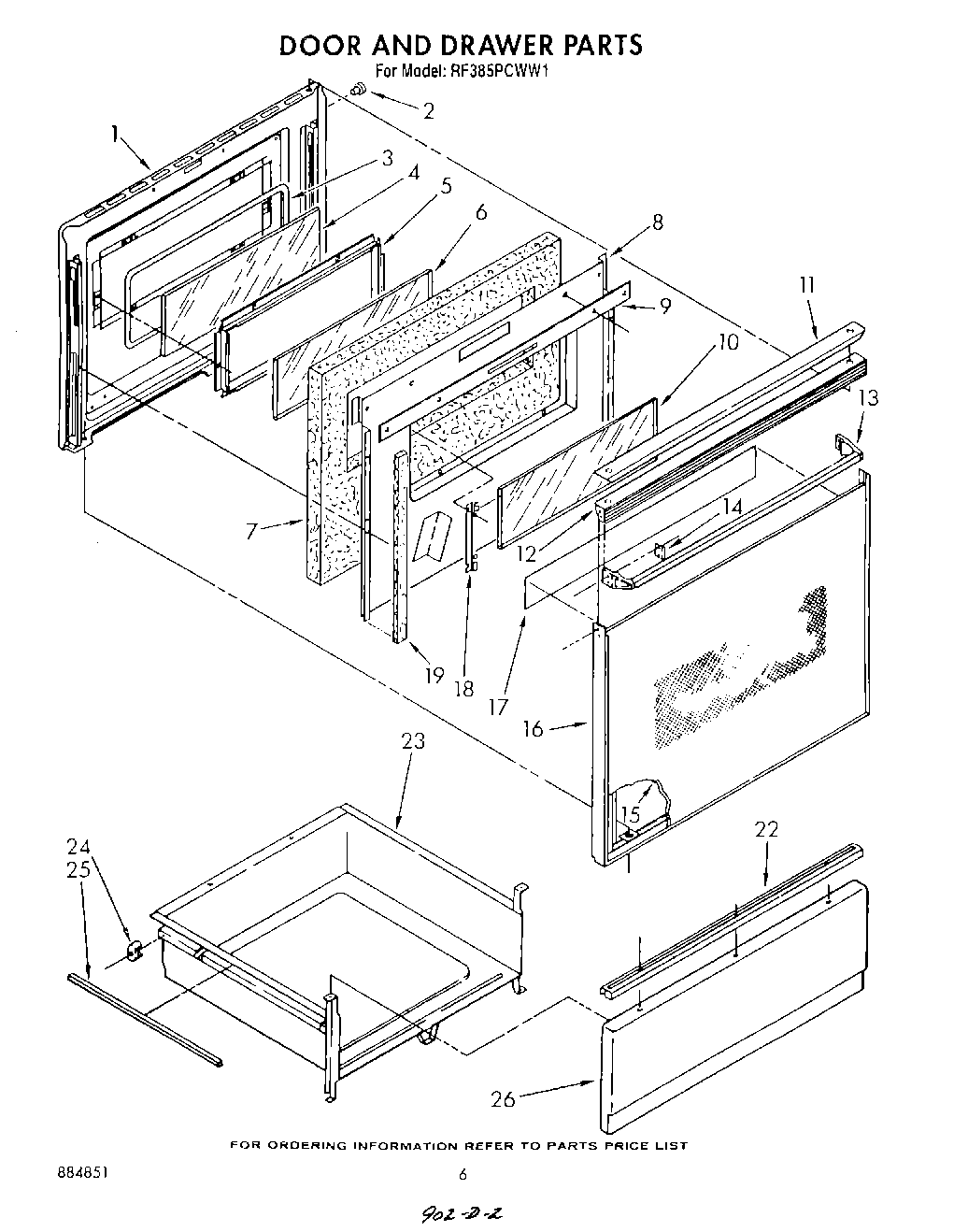

RF385PCWW1 06 – DOOR AND DRAWER , LIT/OPTIONAL

RF385PCWW1 06 – DOOR AND DRAWER , LIT/OPTIONAL

Written by

in

RF385PCWW1 06 – DOOR AND DRAWER , LIT/OPTIONAL

Products

PositionProduct
511873 Whirlpool Refrigerator Paint
WPL ARI123125A
1Liner, Door
2Bumper (4)
3Seal, Door
4WP3169203 Whirlpool Door Glass
5Frame, Inner
7Insulation, Door
8Screw
8Retainer,
9Screw,
9Sheild, Door
10Glass, Reflective
11Cap, Top
12Top, Door (Black Model)
12Top, Door (White Model)
13Handle, Door (White)
13Handle, Oven Door
14Clip, Mtg (2)
15Glass, Panel (White)
15Glass, Panel (Almond)
16Back Splash (Screw (4) 10AB x 1/2“)
16Frame, Door
16WP355515 Whirlpool Screw
17Foil, Door
18Retainer, Glass (2)
19Seal, Flange (2)
22WP488627 Whirlpool Refrigerator Screw
22Handle, Drawer
23Drawer, Utility
24Glide, Rear (2)
24Screw, 10A x 1/2 (2) (Black)
25Protector, Drawer (2)
268212471 Whirlpool Oven Paint
2672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
2672113 Whirlpool Touch-Up Paint
26Golden Harvest
26Toast
26Leveler (Thinner) (2oz.)
26Grease
26Almond (Uncut)
26350930 Whirlpool White Spray Paint
26350956 Whirlpool Spray Assembly
2672017 Whirlpool Appliance Touch-Up Paint White
26799344 Whirlpool Refrigerator Paint
26Rotisserie Kit (RCK 81)
26Wire, 25` Roll (Red 14 Ga.)
26Panel, Drawer (Almond)
26Panel Drawer (White)
26Golden Harvest (Uncut)
26WP72107 Whirlpool Touchup
26Enamel, New Avocado (1 Qt. Uncut)
26Paint, Spray (13 Oz.) (Platinum)
26Enamel, Coffee (1 Qt. Uncut)
26WPL 799832
26242831 Whirlpool Oven Wire
26WP488787 Whirlpool Refrigerator Screw
26WPW10208653 Whirlpool Insulation
26FOIL, ALUMINUM OVEN (18“ X 25 )
26Wire, 25` Roll (Black 14 Ga.)
26Paint, Spray 13 Oz. (Avocado)
26paint, spray 13 oz. (coffee)
26Paint, Touch-Up 1/2 Oz. (Coffee)
2672109 Whirlpool Dacor Avocado Touch-Up Paint
26285006 Whirlpool Spray
26350942 Whirlpool Spray Paint
26WPL 72112
261
26Wire (14 Ga. 200 c Brown)
2618 Ga. 80~c Rating (Red)
26Wire (12 Ga. 150 c Black)
26Enamal, Toast (1 Qt. Uncut)
26Wire (14 Ga. 150 c Yellow)
26Wire (14 Ga. 150 c Orange)
26Wire (14 Ga. 150 c Green)
26Wire (14 Ga. 150 c Brown)
26Platinum (Uncut)
26Wire (14 Ga. 150 c Blue)
26Wire, 25“ Roll (White 14 GA.)
