RF385PXDB0 02 – CONTROL PANEL
Written by
in

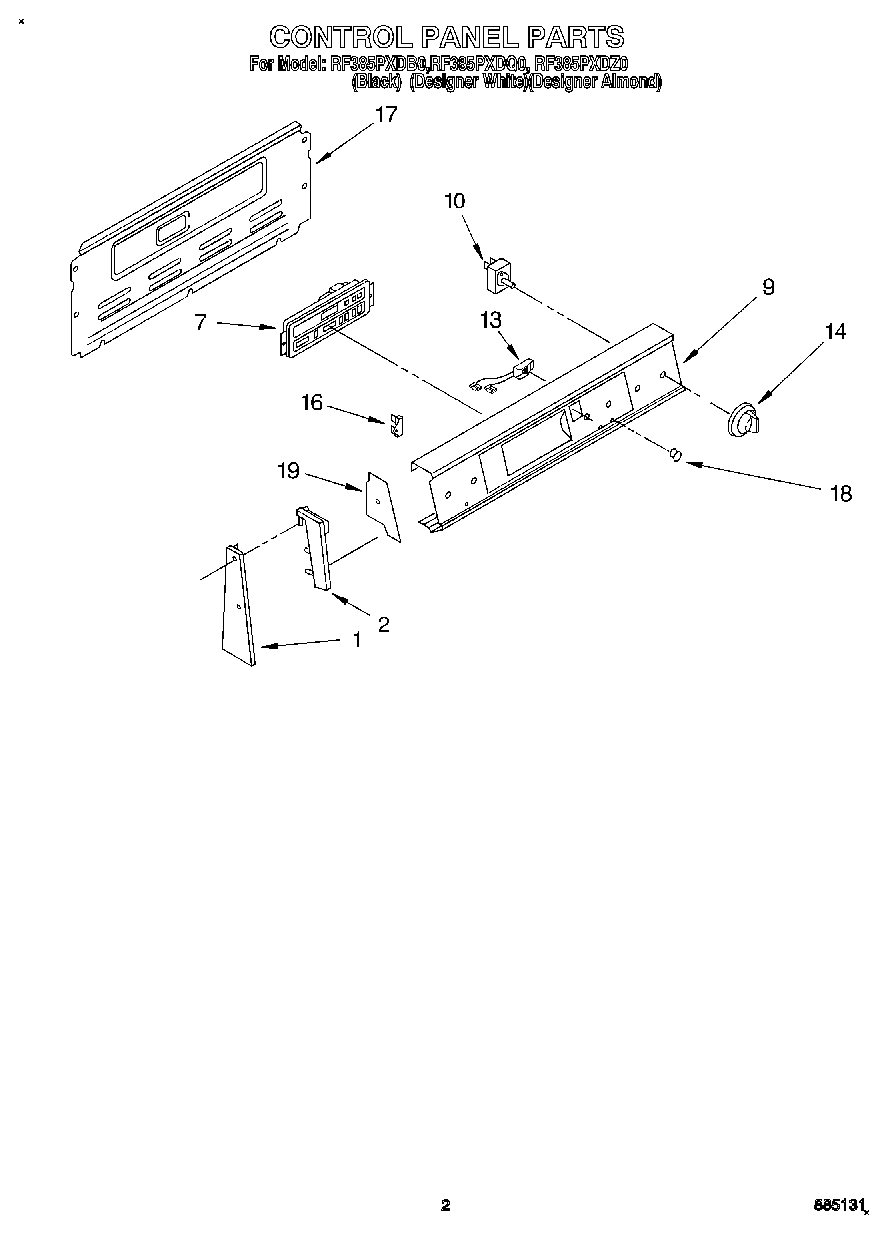

RF385PXDB0 02 – CONTROL PANEL
Products
Position
Product
1
End Trim R.H. (Designer White)
1
End Trim (LH, Black)
1
End Trim R.H. (Black)
1
End Trim (LH, Designer Almond)
1
End Trim R.H. (Designer Almond)
1
End Trim (LH, Designer White)
2
End Cap L.H. (Black)
2
End Cap R.H. (Designer White)
2
End Cap L.H. (Designer White)
2
End Cap R.H. (Designer Almond)
2
End Cap L.H. (Designer Almond)
2
End Cap, R.H. (Black)
7
Timer, ERC Control (Designer Almond)
7
Timer, ERC Control (Black)
7
Timer, ERC Control (Designer White)
9
Panel, Control
9
Panel, Control (Screw, 8-18 x 5/8 (4))
9
Panel, Control (Designer White)
9
Panel, Control (Almond)
10
WP3148952 Whirlpool Oven Infinite Switch
10
Screw, 8-32 x 3/16 (2)
10
WP3149400 Whirlpool Oven Infinite Switch
13
Indicator Light (Surface Unit On)
14
WP3196232 Whirlpool Knob
14
WP3196231 Whirlpool Knob
14
WPL 3188723
16
Fuse, Thermal
16
Screw (2)
17
SCREW
17
Rear Cover Contr
18
Lens, Amber
19
WP965173 Whirlpool Dishwasher Screw
19
Shield (2)
←
