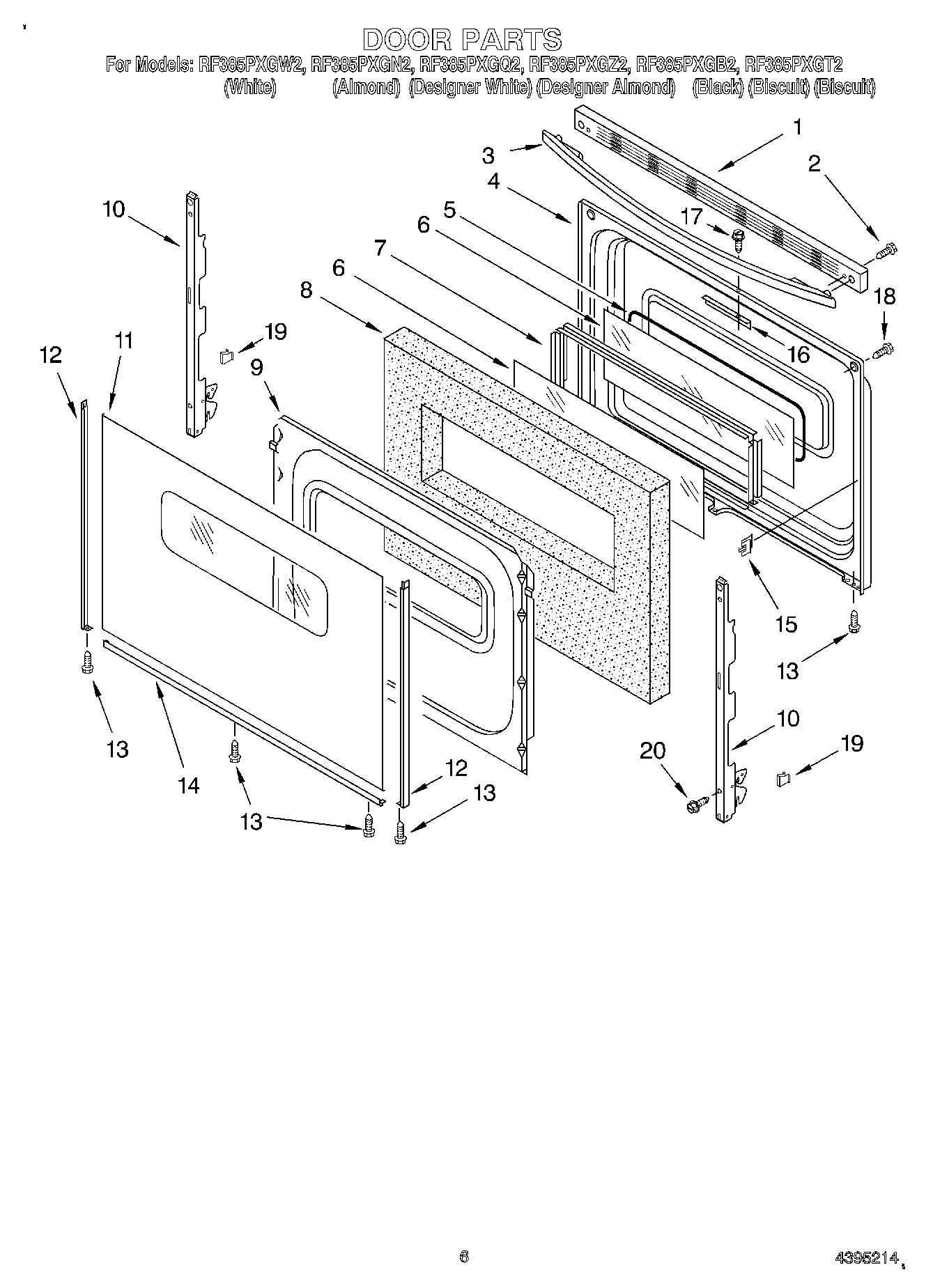

RF385PXGB2 05 – DOOR, OPTIONAL

RF385PXGB2 05 – DOOR, OPTIONAL

Written by

in

RF385PXGB2 05 – DOOR, OPTIONAL

Products

Position	Product
1	Trim, Top (Black)
1	Trim, Door Top (Almond)
1	WPW10016370 Whirlpool Door Trim
1	238614 Whirlpool Bumper Hinge
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	Handle, Door (Biscuit)
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Almond)
4	Liner, Door
5	8522415 Whirlpool Oven Wind Gasket
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	WPW10278991 Whirlpool Insulation
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP9762476 Whirlpool Door Glass
11	Glass, Outer Door (Almond)
11	WP9762477 Whirlpool Glass Door
11	Glass, Door (Biscuit)
13	W10491985 Whirlpool Screw
14	8184860 Whirlpool Oven Door Trim
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
14	8184858 Whirlpool Door Trim
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	Grease
20	3184020 Whirlpool Oven Wire
20	3196696 Whirlpool Clip
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	WP3196154 Whirlpool Screw Assembly
20	WPL 8273266
20	WPL 8273327
20	4392901 Whirlpool Biscuit Spray Paint
20	W11396691 Whirlpool Element Receptacle and Wire Kit
20	8212471 Whirlpool Oven Paint
20	W11244557 Whirlpool Screw
20	Wire, 25` Roll (Black 14 Ga.)
20	WP3196175 Whirlpool Screw
20	FOIL, ALUMINUM OVEN (18“ X 25 )
20	WPW10208653 Whirlpool Insulation
20	WPL 799832
20	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
20	511873 Whirlpool Refrigerator Paint
20	4392899 Whirlpool Biscuit Touch-Up Paint
20	350942 Whirlpool Spray Paint
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25“ Roll (White 14 GA.)
20	285006 Whirlpool Spray
20	1
20	Wire (14 Ga. 200 c Brown)
20	18 Ga. 80~c Rating (Red)
20	Wire (12 Ga. 150 c Black)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	Clip, Ground Wire
20	3400964 Whirlpool Oven Clip
20	814381 Whirlpool Pin
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	350930 Whirlpool White Spray Paint
