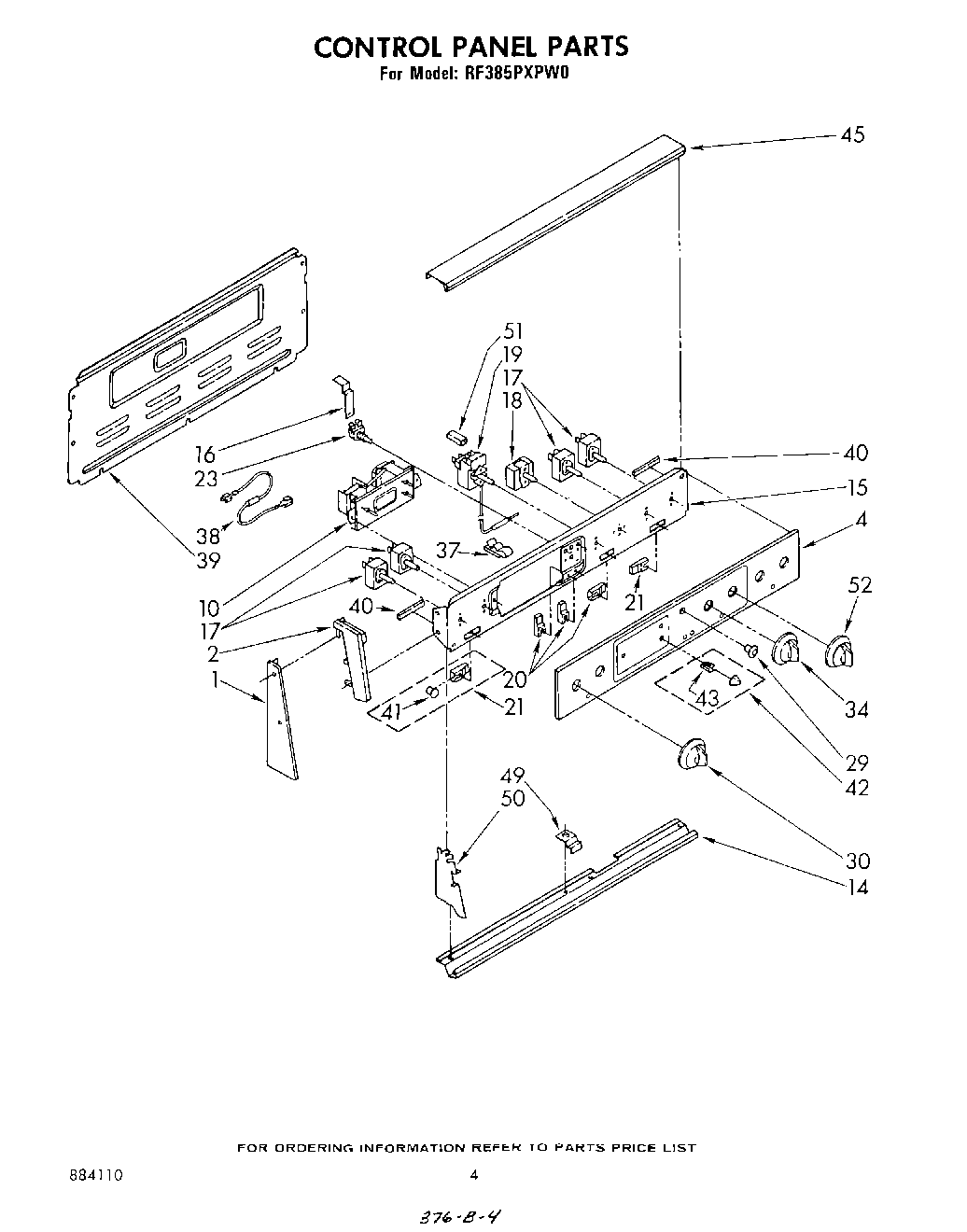

RF385PXPW0 03 – CONTROL PANEL

Products

Position	Product
1	End Trim L.H.
1	WP3390631 Whirlpool Screw
1	Washer
2	End Cap R.H.
2	W11693756 Whirlpool Screw Assembly
2	End Cap L.H.
4	Control Panel, Glass
10	Timer, Digital
14	Bottom Trim
15	Washer
15	Bracket, Control
16	Brace, Control Bracket
16	Screw,
17	W10900107 Whirlpool Oven Surface Element Switch
18	Switch, Selector
18	WP486579 Whirlpool Air Conditioner Screw
19	WP313808 Whirlpool Screw
19	Thermostat, Oven Pyro
20	Insulation Oven Door Plug
21	Light, Indicator (Surface Unit) (2) (Includes Illus. 41)
23	Lockwasher
23	Switch, Oven Light
23	nut, 3/8 x 27
29	Bezel Switch (1)
30	Knob, Control (4)
34	Knob, Control (2)
34	Screw
37	Clip, Tube
38	Resistor & Terminal Assembly
39	Harness-Conduit Asm.
39	SCREW
40	Seal, Foam
41	Lens (4)
42	WP3169181 Whirlpool Knob
43	Spring (3)
44	WPL 313524
45	Trim, Top
49	Screw
49	Support, Wedge
50	Shield, Glass (2)
50	WP965173 Whirlpool Dishwasher Screw
51	Housing, Receptical
52	WP688805 Whirlpool Spring Clip
52	KNOB, CONTROL
